Illustrated Parts Catalog
Mechanical Parts Exploded View

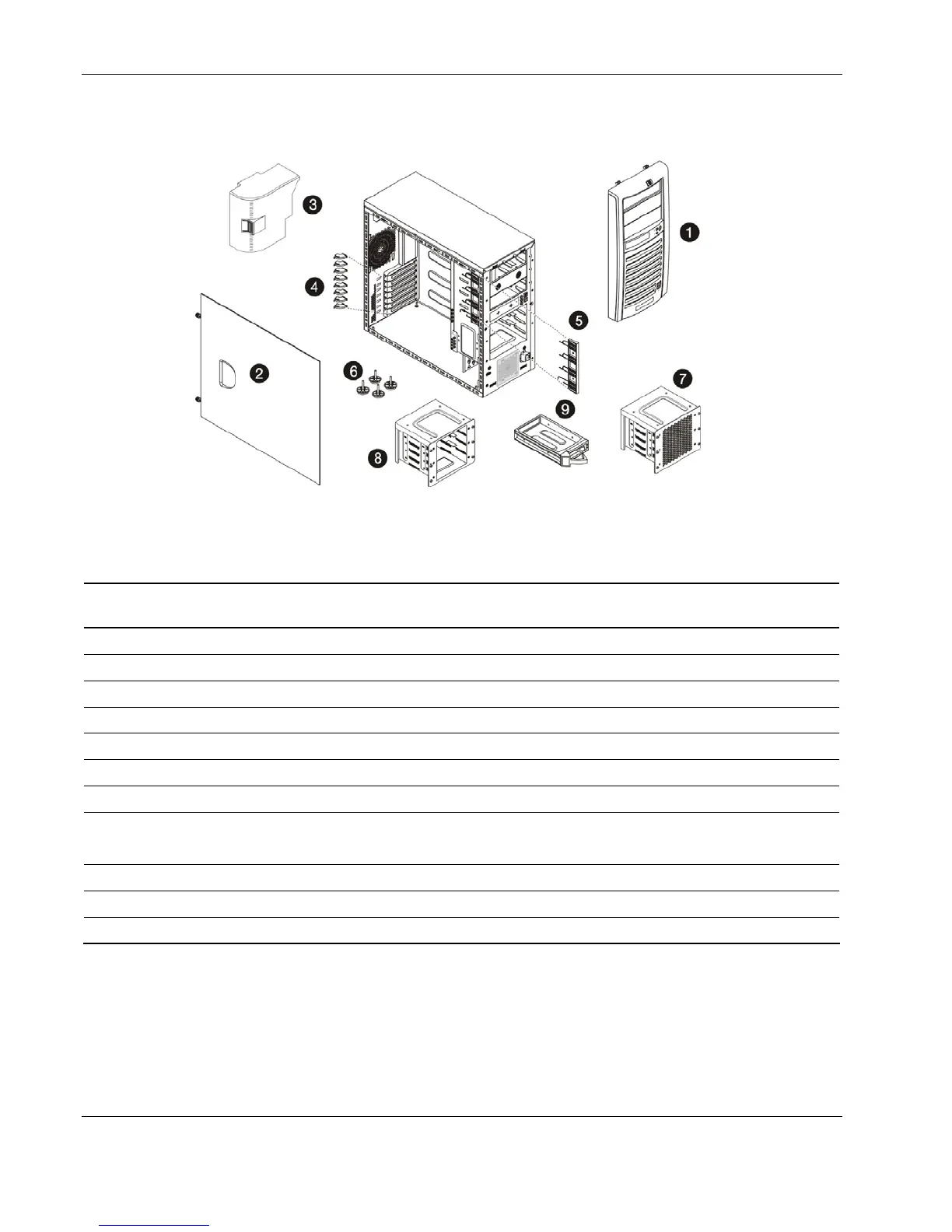

Figure 1-1: Mechanical parts exploded view
Table 1-1: Mechanical Spare Parts List
Item Description Assembly
Number
Spare Part
Number
Customer
Self Repair
1 Front bezel 377587-001 382953-001 Yes
2 Access panel
3 Air baffle 385712-001 385758-001 Yes
4 PCI retainer clips Yes
5 Release lever (for the full-height drive bay) Yes
6 Feet (4) Yes
Hard disk drive (HDD) cage
382992-001
7 Non-hot-plug HDD cage for SCSI
Non-hot-plug HDD cage for SATA
346079-001
346078-001
385640-001
382992-001
Yes
8 Hot-plug HDD cage for SATA 384522-001 384756-001 Yes
9 Hot-plug HDD carrier for SATA Yes
10 Plastics kit * 382201-001
1-2 HP ProLiant ML110 Generation 2 Server Maintenance and Service Guide
