Hardware options installation 37

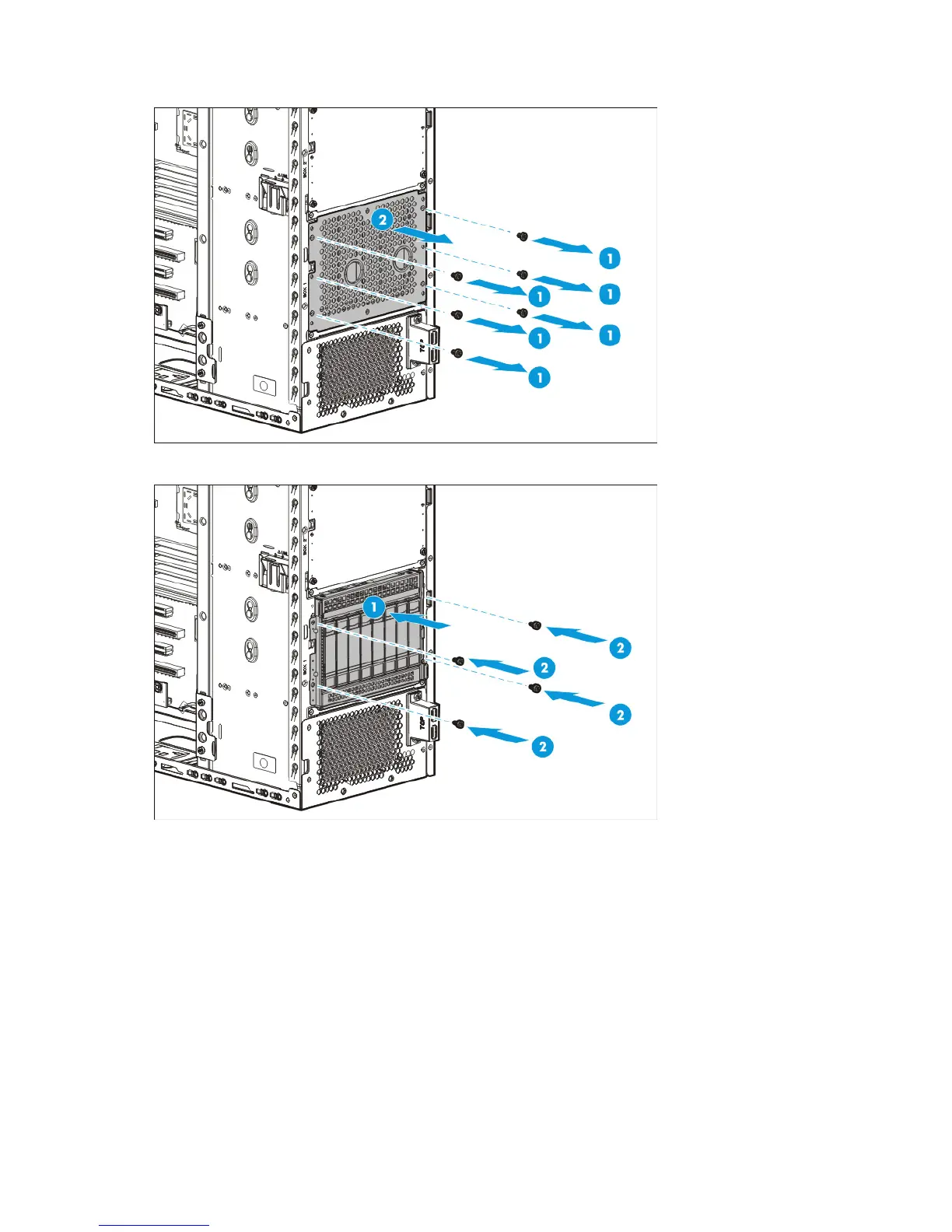

9. Remove the installed drive cage assembly.
10. Install the 8 SFF hot-plug drive cage in box 1.
11. Connect the drive cage cables:
a. Connect one end of the Mini-SAS cable to the drive backplane and the other end to the system
board.
b. Connect the 8-pin power cable to the drive backplane.
c. Connect the power good cable to the hard drive power good cable connector 1 on the system
board ("System board components" on page 11).
