Hardware options installation 44
6. Remove the system air baffle (on page 23).
7. Disconnect the existing Mini-SAS cables from the drive backplane and the Mini-SAS connectors on the
system board.
8. Connect one end of the cable to the Host Bus Adapter, route the cable underneath the metal tabs, and
then connect the other end to the drive backplane.

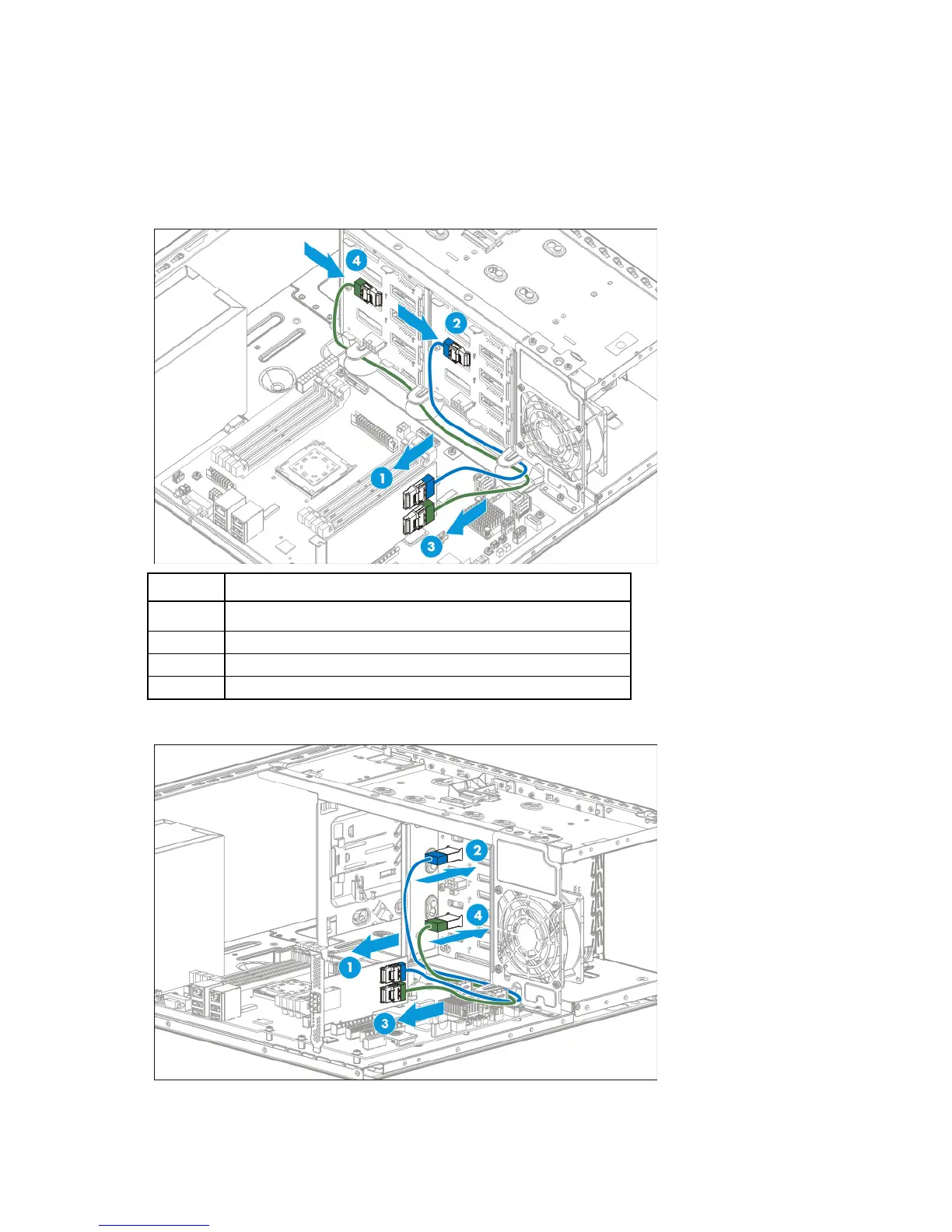

o Two 4 LFF hot-plug drive cages connected to a H240 adapter
Item Description
1
Port 1 controller connection
2
Box 1 drive backplane connection
3
Port 2 controller connection
4
Box 2 drive backplane connection
o 8 SFF hot-plug drive cage connected to a H240 adapter
