Hardware options installation 46

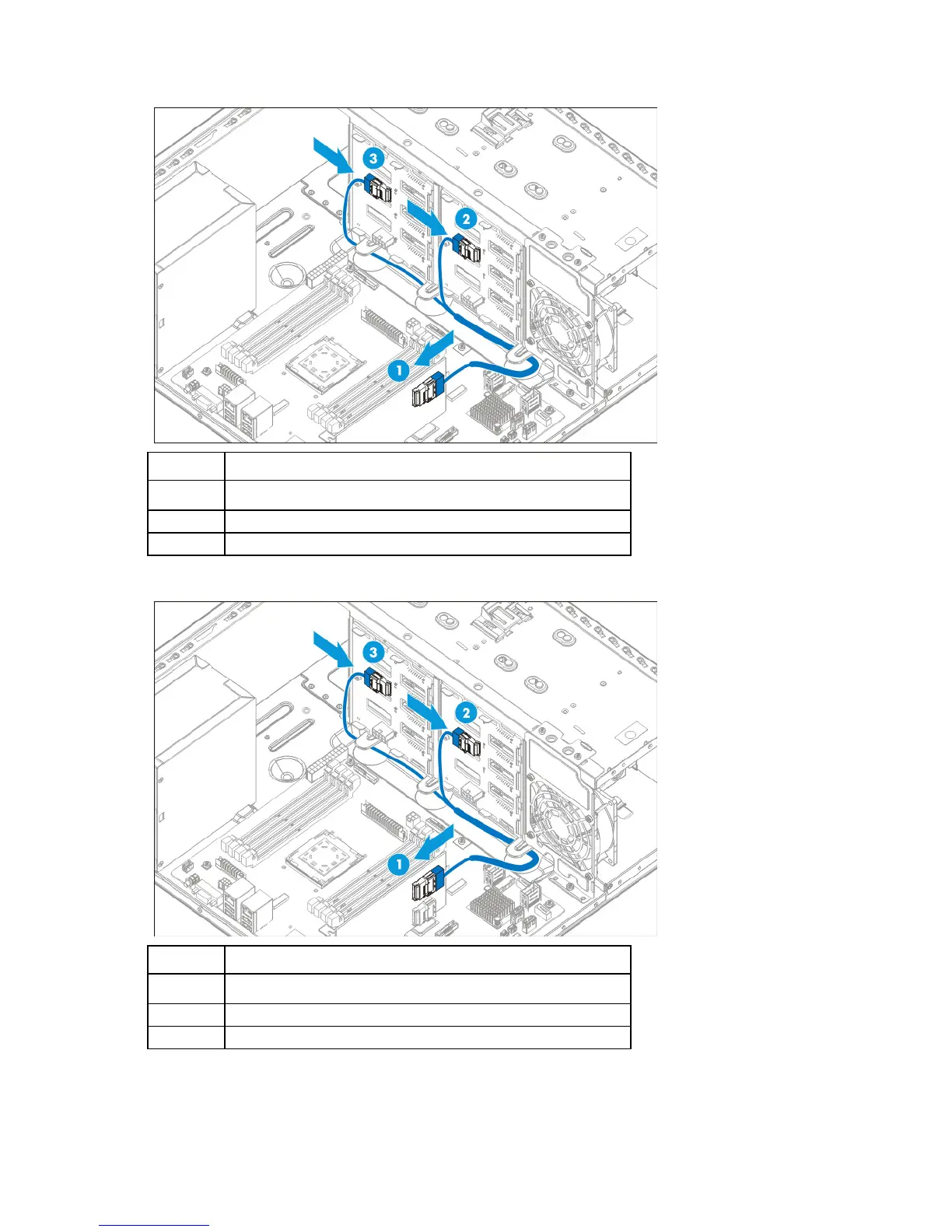

o Two 4 LFF hot-plug drive cages connected to a P440 controller
Item Description
1
Controller connection
2
Port 1 of the Mini-SAS Y-cable to box 1 drive backplane
3
Port 2 of the Mini-SAS Y-cable to box 2 drive backplane
o Two 4 LFF hot-plug drive cages connected to a P840 controller
Item Description
1
Port 1 controller connection
2
Port 1 of the Mini-SAS Y-cable to box 1 drive backplane
3
Port 2 of the Mini-SAS Y-cable to box 2 drive backplane
