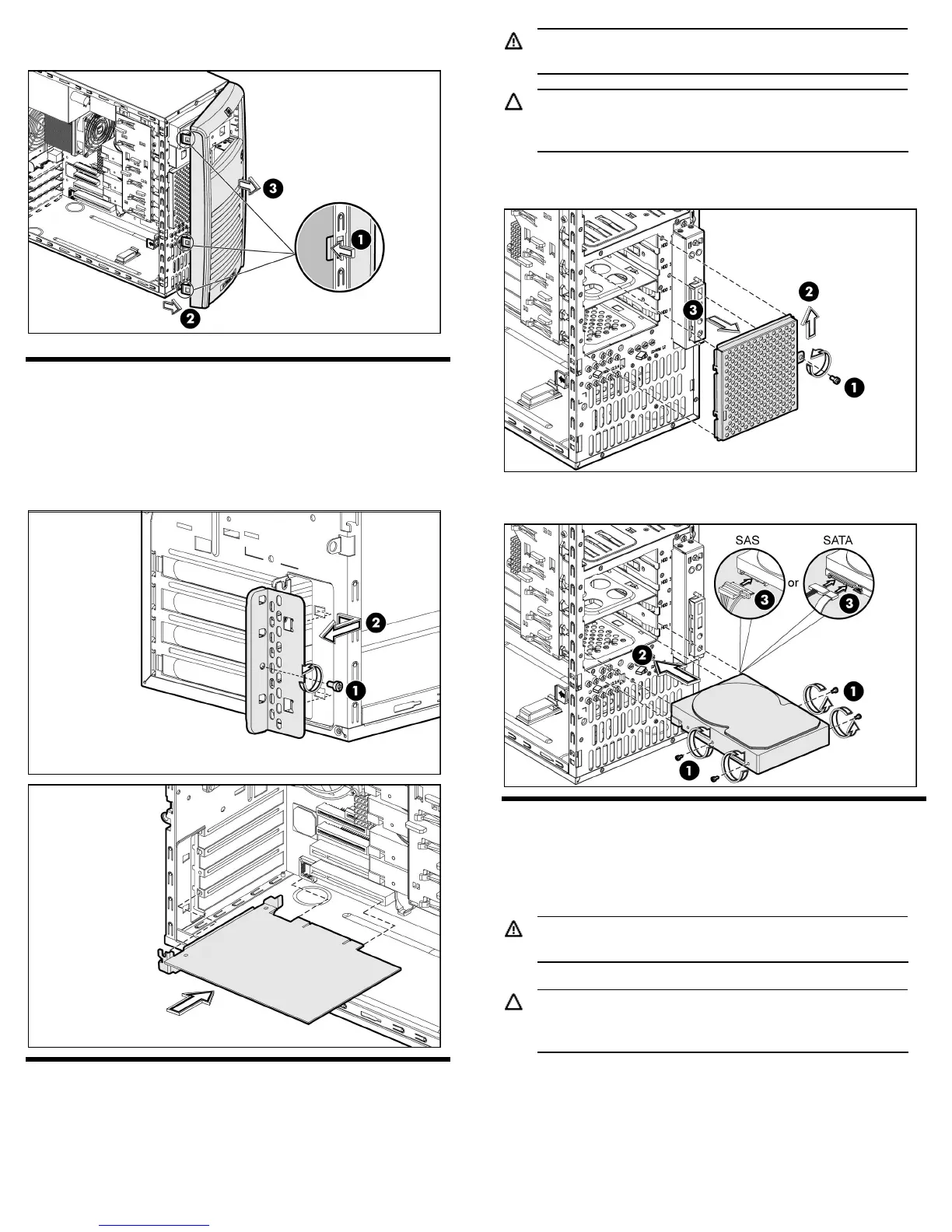

Removing the front bezel
Installing the PCI accessory board
The server supports four PCI bus slots.
• Two 32-bit/33-MHz 3.3V PCI bus slots (J20 to J21)
• One PCI-Express x4 line with x8 slot (J33)
• One PCI-Express x8 line with x8 slot (J32)
Installing mass storage devices
The four lower drive bays on the front panel can accommodate up to
four hard drives. The server sup
ports both SATA and SAS drives.
WARNING!
Power down the server before installing hard
drives.
CAUTION: Drives can be damaged by static electricity.
Before handling drives, touch an unpainted metal surface
to discharge static electricity.
Hard drive – shield removal
Hard drive – SATA/SAS
Installing optical drives
The two upper drive bays on the front panel can accommodate up to
two optical drives.
WARNING!
Power down the server before installing
optical drives.
CAUTION: Drives can be damaged by static electricity.
Before handling drives, touch an unpainted metal surface
to discharge static electricity.
Optical drive – shield removal
Optical drive – installation
Installing memory
The server has four DIMM slots that support up to 8 GB maximum
system memory (2 GB in each of the four DIMM slots).
The following guidelines must be followed when memory mo
dules
are being added or replaced:
• Use only DDR II 533/667 unbuffered ECC DIMMs in 512 M
B,
1 GB or 2 GB module.
• Up to two DIMMs per channel, single-sided and/or double-
sided. Channel A corresponds to the DIMM1 and DIMM2
slots, while channel B corresponds to the DIMM3 and DIMM4
slots.
• For optimal 2 DIMMs configuration, populate slot 1 and slot
3.
Identical DIMMs are recommended.
CAUTION: DIMMs can be damaged by improper
handling. Always use an anti-static wrist strap and
grounding mat, and discharge static electricity before
touching DIMMs.
DIMM slots are structured to ensure proper installation. If you insert a
DIMM but it does not fit easily into
the slot, you may have inserted it
incorrectly. Reverse the orientation of the DIMM and insert it aga
in.
Replacing the processor
The LGA775 CPU socket in HP ProLiant ML110 Generation 4
server
supports Intel
®
Pentium
®
4, Intel
®
Pentium
®
-D, Celeron
®
-D processors
and Xeon
®
3000 series processors.
Getting additional documentation
For additional documentation, refer to HP ProLiant ML110
Generation 4 Server Support CD. You can also access additional
information and documentation from the HP website,
www.hp.com
either by connecting directly or through the Support CD.
