Removal and replacement procedures 38
5.

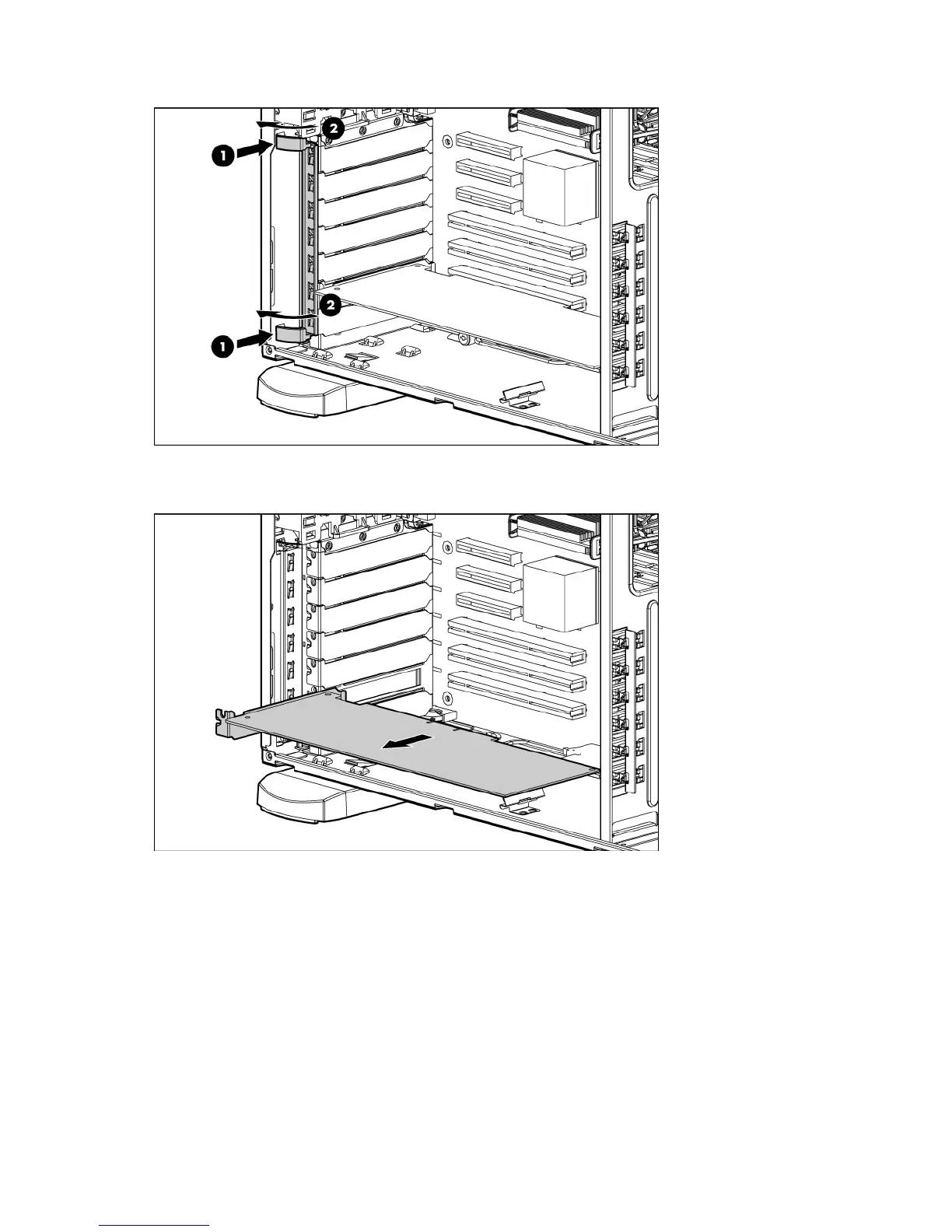

Push the release latches on the expansion board retainer and open the retainer.
6. Remove the T-15 Torx screw securing the expansion board, if necessary.
7. Remove the expansion board.
To replace the component, reverse the removal procedure.
Media bay blank
To remove the component:
1. Open or remove the tower bezel ("Front bezel" on page 27).
2. Remove the access panel ("Access panel" on page 29).
