Removal and replacement procedures 42
10.

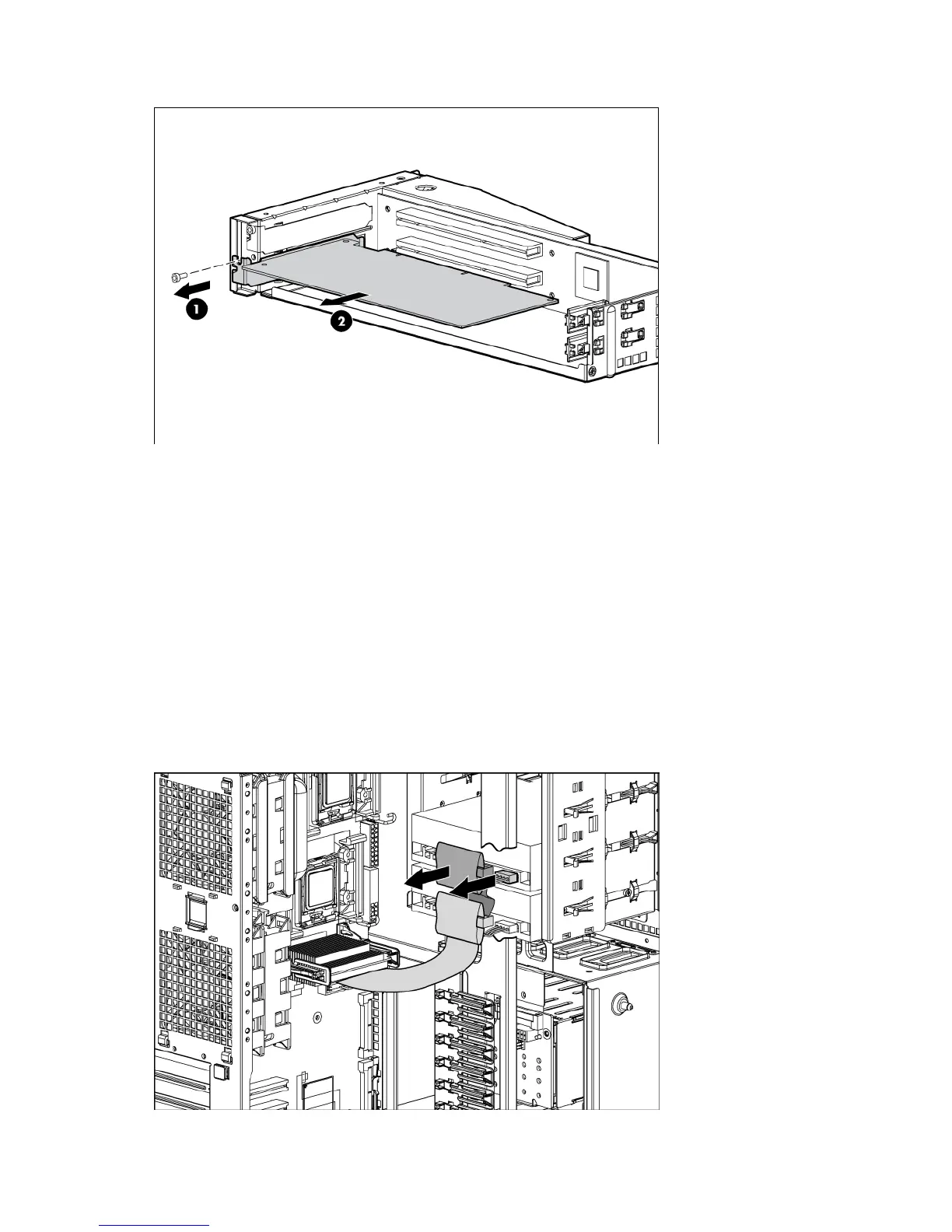

Remove any expansion boards.
To replace the components, reverse the removal procedure.
Half-height or full-height media device
To remove the component:
1. Power down the server (on page 26).
2. Do one of the following:
o Unlock and remove the bezel ("Front bezel" on page 27).
o Extend the server from the rack (on page 26).
3. Remove the access panel ("Access panel" on page 29).
4. Disconnect data and power cables.
o PATA CD-ROM drive
