Removal and replacement procedures 44
o

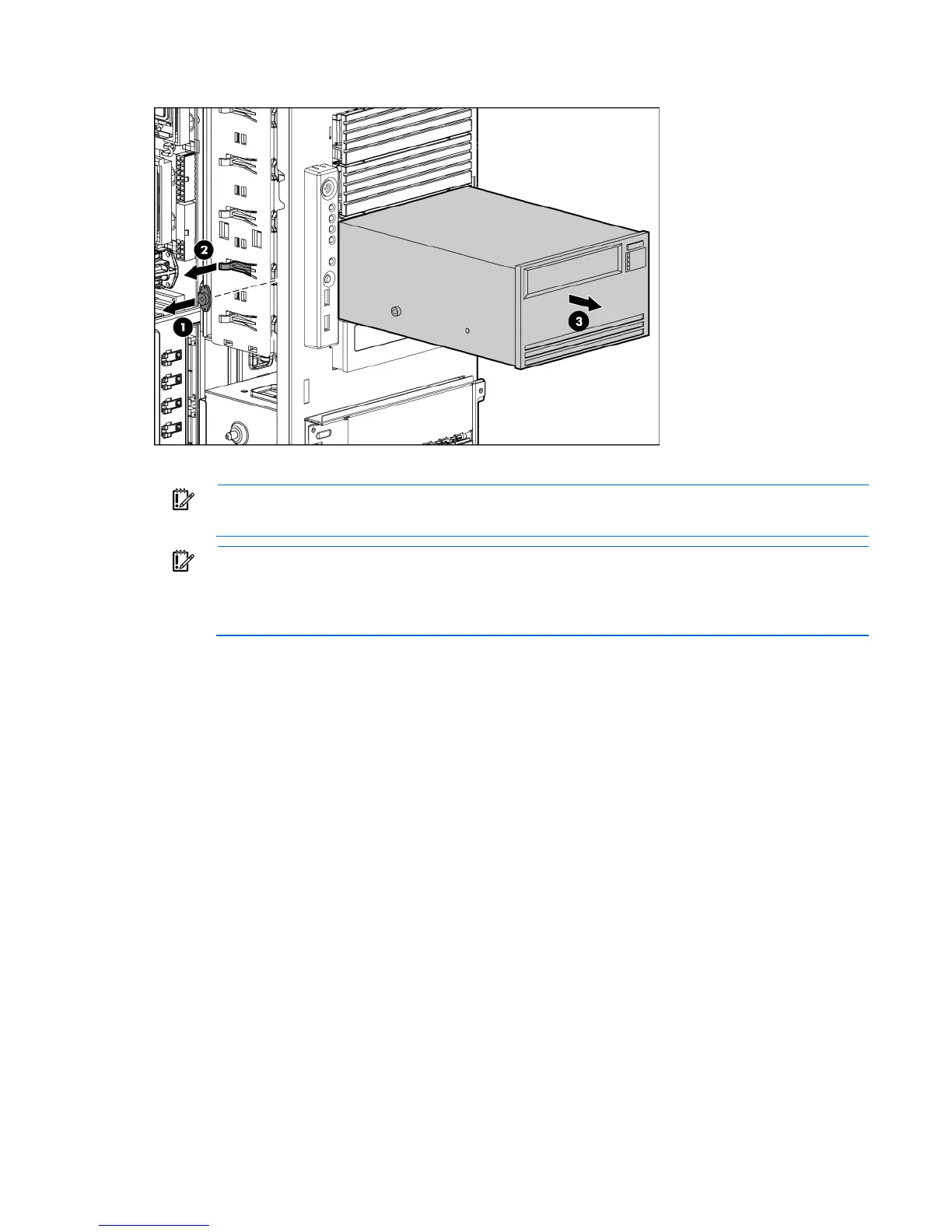

Full-height
To replace the component, reverse the removal procedure.
IMPORTANT: Be sure to connect the right-angle end of the SATA data cable to the system board.
Connecting it to the SATA drive may interfere with other installed media bay devices.
IMPORTANT: If both SATA and PATA optical devices are installed simultaneously, only one can
boot at a time. Boot priority will go to SATA if media is inserted into the SATA optical drive. Boot
priority for PATA is not configurable. To boot PATA, remove the media from the SATA optical
device, or remove the SATA optical device.
Heatsink
To remove the component:
1. Power down the server (on page 26).
2. Do one of the following:
o Unlock and remove the bezel ("Front bezel" on page 27).
o Extend the server from the rack (on page 26).
3. Remove the access panel ("Access panel" on page 29).
4. Disconnect the heatsink fan cable from the system board.
5. Open the heatsink locking levers.
