12. Media output roller (inside cover)

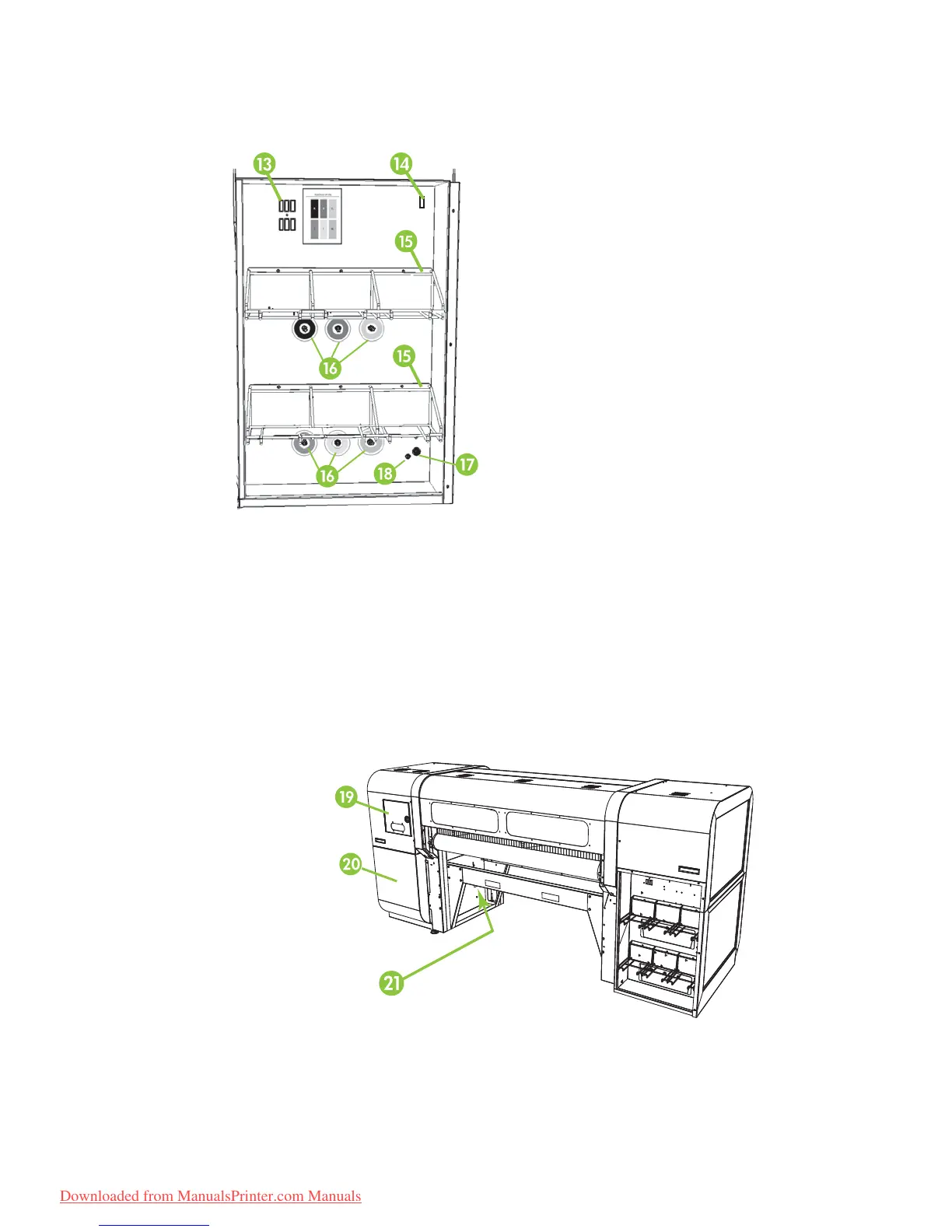

Figure 1-2 Ink supply compartment
13. Profiler docking station
14. Ink homogenizer power outlet
15. Ink supply rack
16. Ink connections
17. Vacuum system auxiliary power inlet
18. Vacuum adjustment knob (factory adjustment, do not change)
Figure 1-3 Output side
19. Service station and printhead carriage access door
ENWW Quick tour 5
