8. Disconnect the auxiliary cable from the top of the user-end lamp.

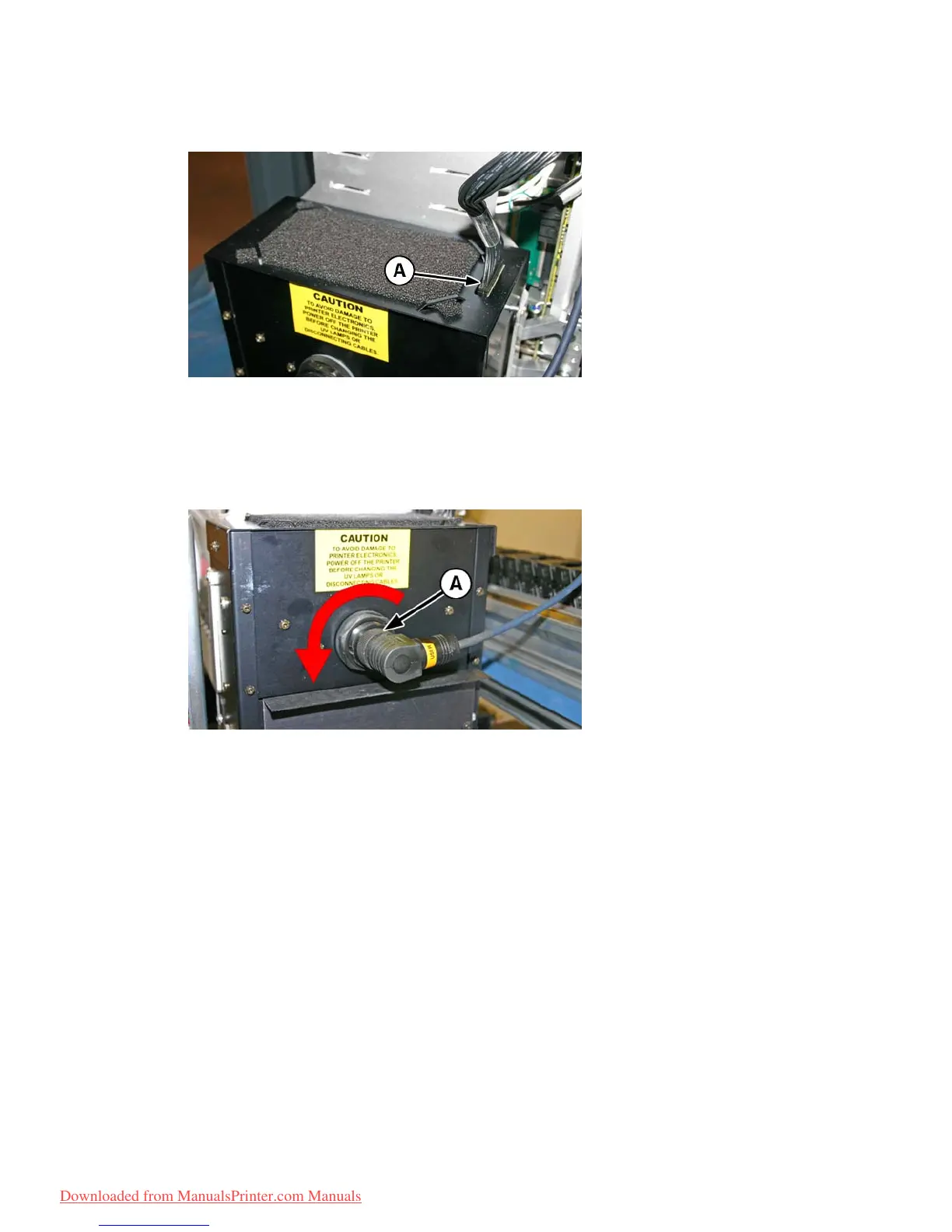

Figure 9-1 Disconnect the user-end auxiliary cable
Remove the user-end lamp housing
1. Remove the lamp power cable from the side of the lamp housing by turning the coupling
counterclockwise.
Figure 9-2 Remove the user-end power cable
60 Chapter 9 User cleaning ENWW
