Quick tour

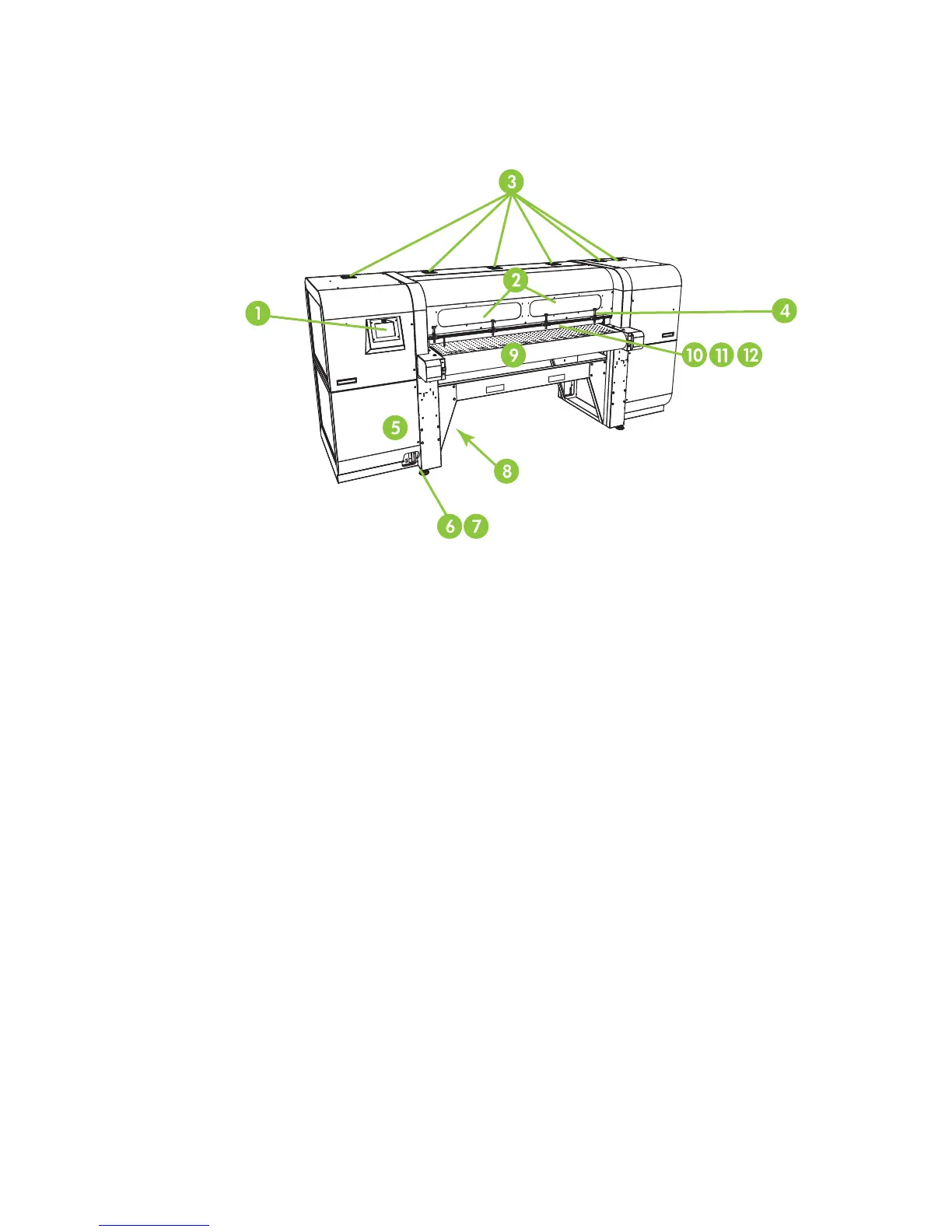

Figure 1-1 Input side
1. Touch-screen control panel
2. UV-filtered observation windows
3. Exhaust vents
4. Rigid media alignment pins
5. Electronics box (inside enclosure)
6. Data ports
7. Main power switch
8. Main power, takeup system power inlet ports, serial number and regulatory label (on lower enclosure)
9. Media drive belt
10. Media input roller (inside cover)
11. Media alignment bar (inside cover)
12. Media output roller (inside cover)
ENWW
Quick tour 5
