6. Clean the top slanted wheels by inserting an isopropyl alcohol-moistened cotton swab into the opening
above the (A) wheels and moving the carriage back and forth. Perform the same process for each wheel
on the user and service-end of the carriage.

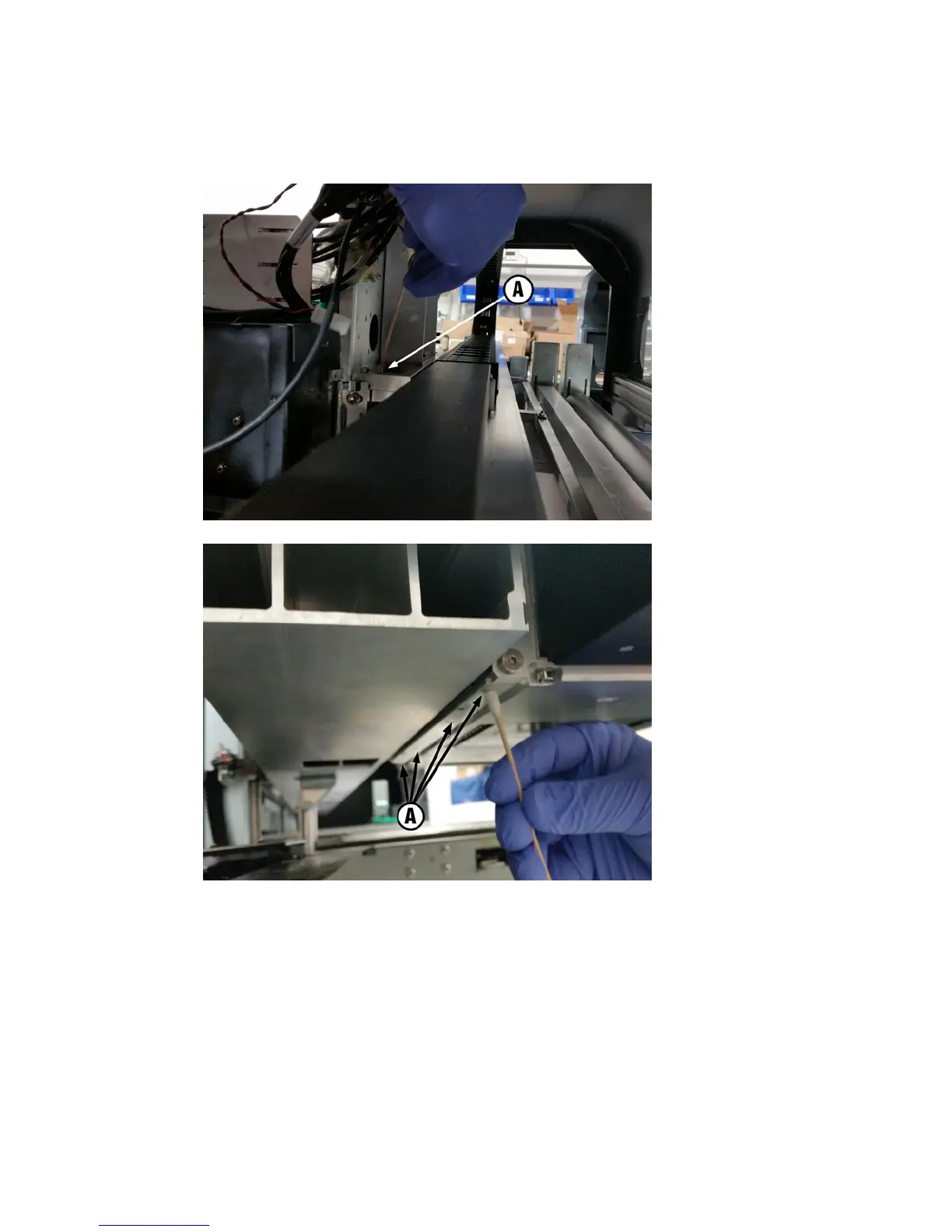

Figure 10-16 Cleaning slanted carriage-wheels with cotton swab (1 of 2)
Figure 10-16 Cleaning slanted carriage-wheels with cotton swab (2 of 2)
7. Clean the four lower carriage wheels by inserting isopropyl alcohol moistened cotton swab into the four
access holes located beneath the carriage and moving the carriage back and forth.
8. To reset the maintenance counter for this task and complete the procedure, press Proceed.
Vacuum the bottom of the carriage
CMYKcm — 80 Hours
CMYKW — 80 Hours
ENWW
Vacuum the bottom of the carriage 87
