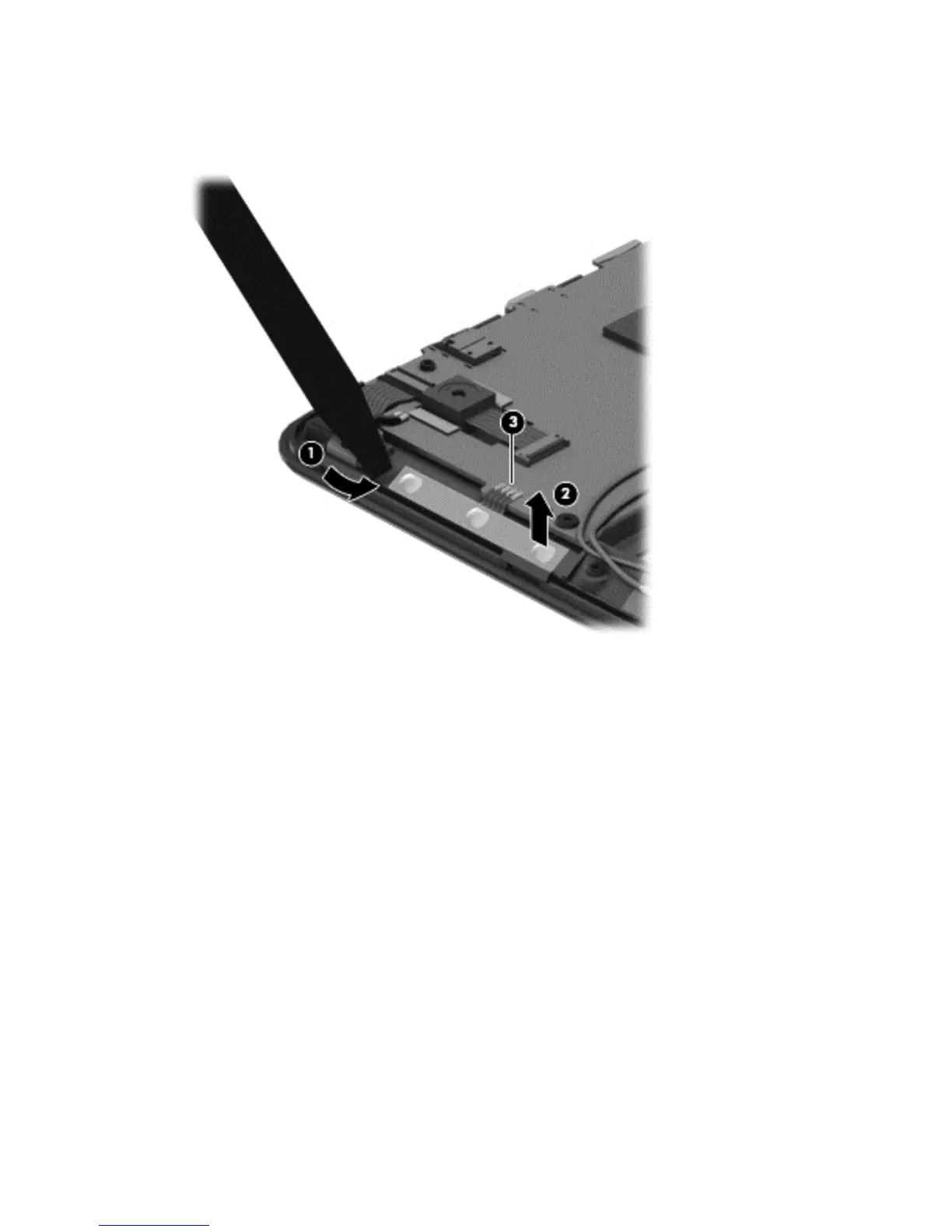

2. Insert a thin, plastic tool (1) under the left side of the power button cable until the cable (2) is fully
detached from the display panel assembly. (The power button cable is attached to the display
panel assembly with double-sided adhesive.)
3. Remove the two Phillips PM1.0×2.5 screws (1) and the two Phillips PM1.5×5.0 screws (2) that
secure the system board to the display panel assembly.
22 Chapter 4 Removal and replacement preliminary requirements
