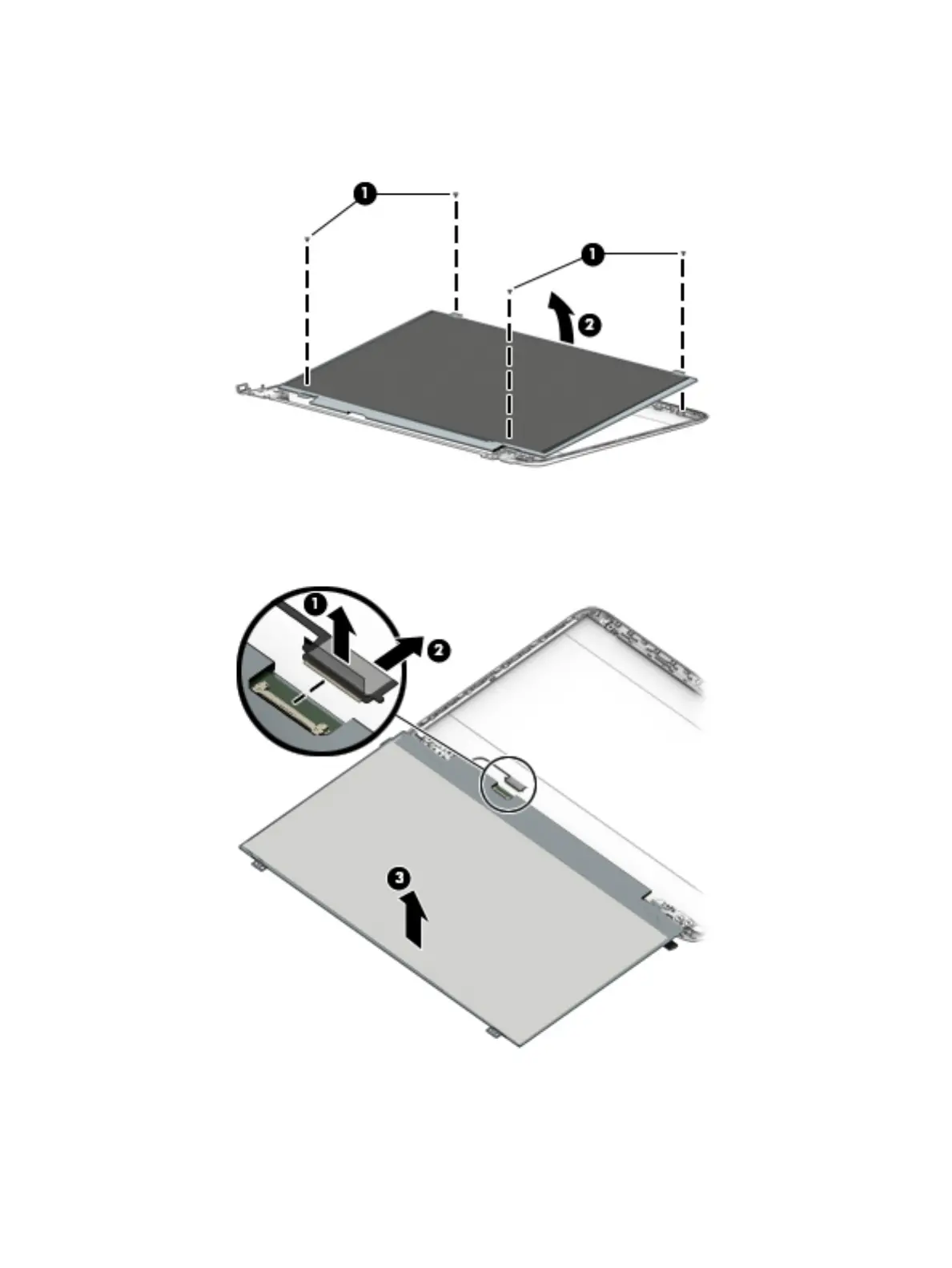

b. Lift the top edge of the display panel (2) and swing it up and forward until it rests upside down in
front of the display back cover.
The raw display panel is available using spare part number 847664-005.
c. Release the adhesive strip (1) that secures the display panel cable connector to the display panel.
d. Disconnect the display panel cable (2) from the display panel.
e. Remove the display panel from the computer (3).
7. If it is necessary to replace the display hinges:
Component replacement procedures 37
