To use the HP Quick Release:

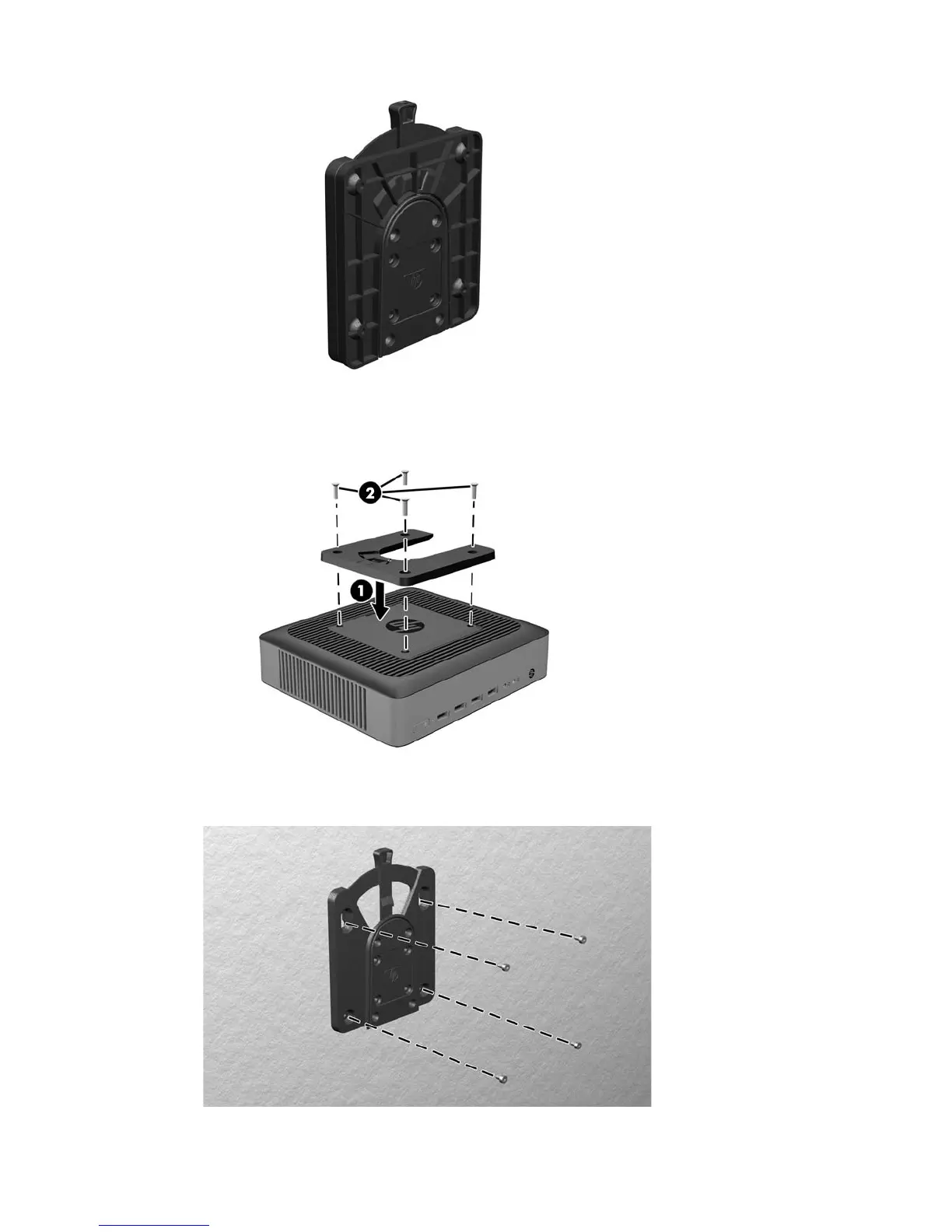

1. Using four 10 mm screws included in the mounting device kit, attach one side of the HP Quick Release to
the thin client as shown in the following illustration.
2. Using four screws included in the mounting device kit, attach the other side of the HP Quick Release to
the device to which you will mount the thin client. Make sure the release lever points upward.
Mounting and orienting the thin client 9
