298

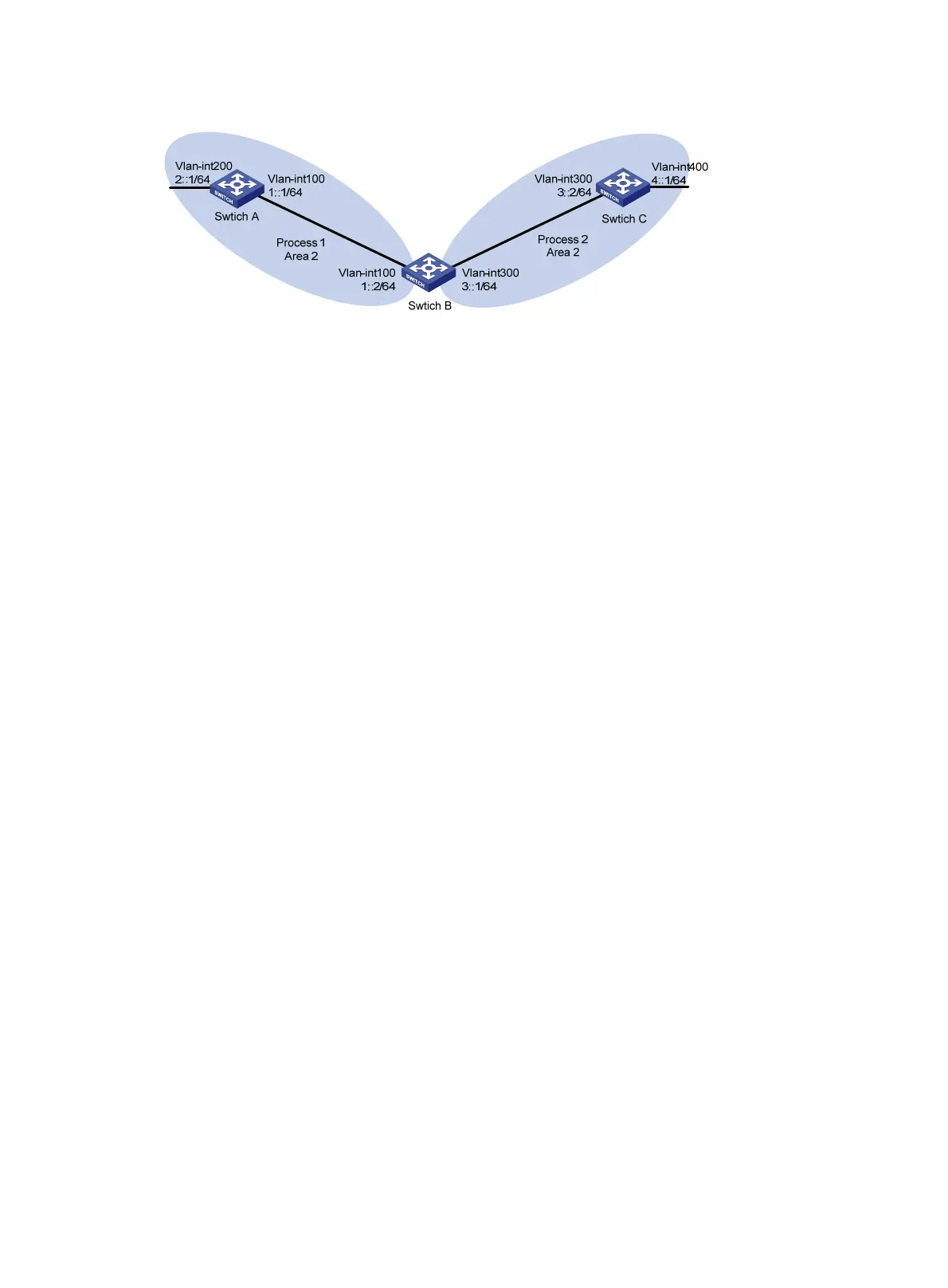

Figure 108 Network diagram

Configuration procedure

1. Configure IPv6 addresses for interfaces. (Details not shown.)

2. Configure OSPFv3 basic functions:

# Enable OSPFv3 process 1 on Switch A.

<SwitchA> system-view

[SwitchA] ipv6

[SwitchA] ospfv3 1

[SwitchA-ospfv3-1] router-id 1.1.1.1

[SwitchA-ospfv3-1] quit

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] ospfv3 1 area 2

[SwitchA-Vlan-interface100] quit

[SwitchA] interface vlan-interface 200

[SwitchA-Vlan-interface200] ospfv3 1 area 2

[SwitchA-Vlan-interface200] quit

# Enable OSPFv3 process 1 and OSPFv3 process 2 on Switch B.

<SwitchB> system-view

[SwitchB] ipv6

[SwitchB] ospfv3 1

[SwitchB-ospfv3-1] router-id 2.2.2.2

[SwitchB-ospfv3-1] quit

[SwitchB] interface vlan-interface 100

[SwitchB-Vlan-interface100] ospfv3 1 area 2

[SwitchB-Vlan-interface100] quit

[SwitchB] ospfv3 2

[SwitchB-ospfv3-2] router-id 3.3.3.3

[SwitchB-ospfv3-2] quit

[SwitchB] interface vlan-interface 300

[SwitchB-Vlan-interface300] ospfv3 2 area 2

[SwitchB-Vlan-interface300] quit

# Enable OSPFv3 process 2 on Switch C.

<SwitchC> system-view

[SwitchC] ipv6

[SwitchC] ospfv3 2

[SwitchC-ospfv3-2] router-id 4.4.4.4

[SwitchC-ospfv3-2] quit
