HP 800 Workstation rear panel components

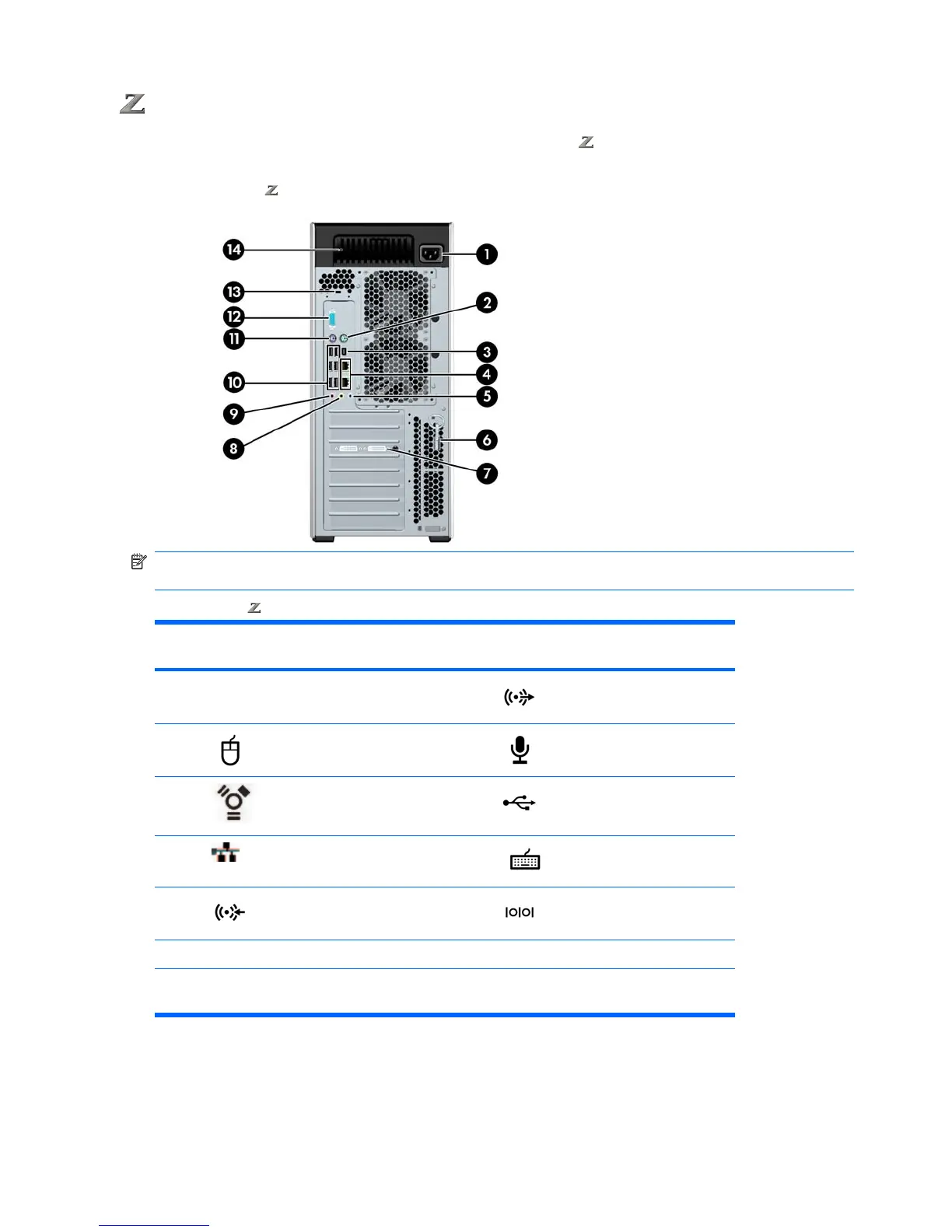

The following illustration shows the rear panel of a typical HP 800 Workstation. Drive configurations
can vary.
Figure 2-9 HP
800 Workstation rear panel
NOTE: The rear panel connectors are labeled with industry-standard icons and colors to assist in
connecting peripheral devices.
Table 2-9 HP 800 Workstation rear panel connectors
Item Symb
ol
Description Item Symb
ol
Description
1 Power cord connector 8 Audio line-out connector
(green)
2 PS/2 mouse connector
(green)
9 Microphone connector
(pink)
3 IEEE-1394 connector 10 USB 2.0 ports (6)
4 RJ-45 network
connectors (2)
11 PS/2 keyboard
connector (purple)
5 Audio line-in connector
(blue)
12 Serial connector
6 Side access panel key 13 Cable lock slot
7 Graphics connector 14 Power supply Built-In
Self Test (BIST) LED
