8. Replace all components that were removed in preparation for component installation.
Installing an HDD in an HP 600 or 800 Workstation
To install an HDD:
1. Follow the procedures described in
Preparing for component installation on page 39 to prepare the
workstation for component installation.
2. Select a drive bay in which to install the hard disk drive.
3. Set the hard disk drive in the carrier at an angle. Carefully separate the lower hard drive carrier
rails
, and then lower the drive between them as shown in the following illustration.
Release the rails to lock the drive in place.

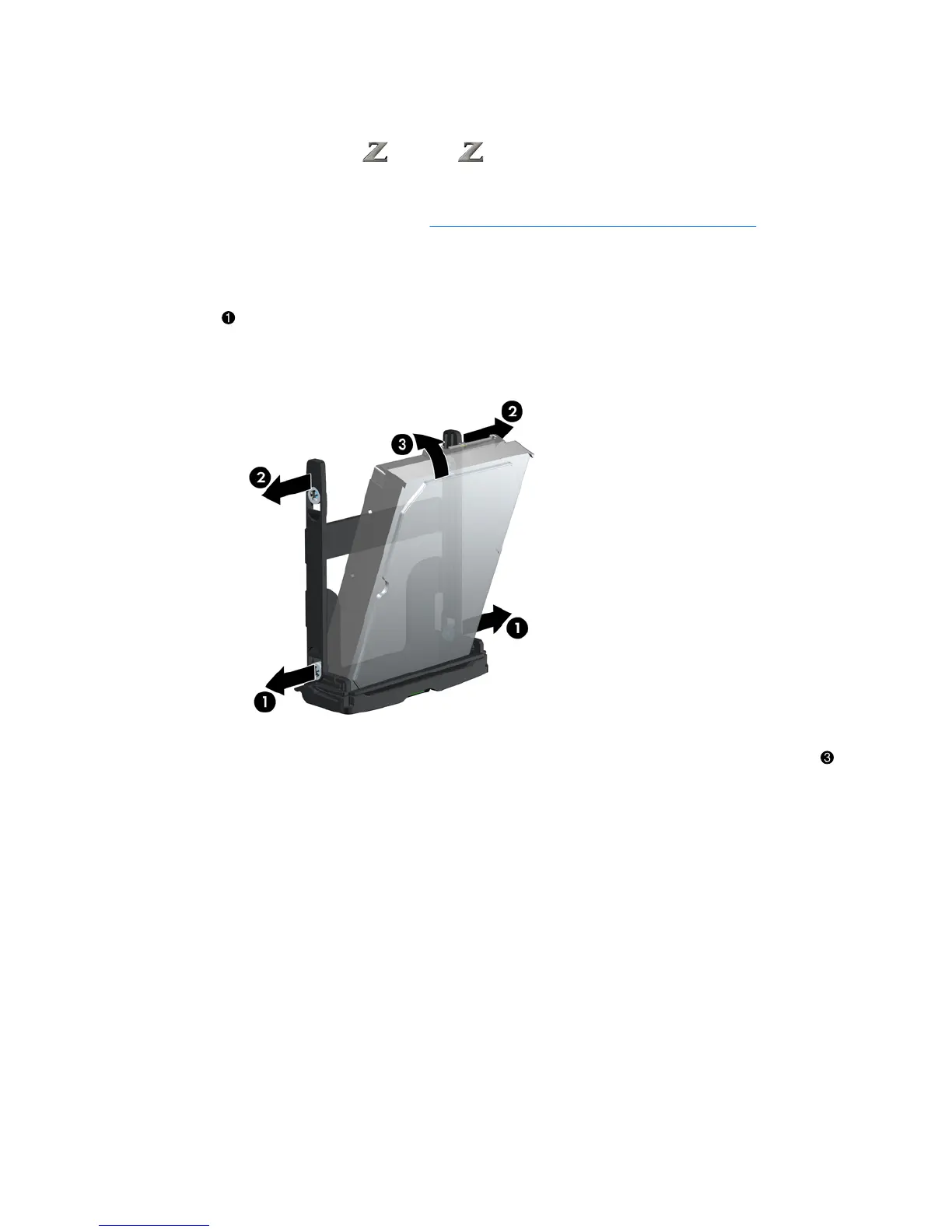

Figure 9-4 Installing the drive in the carrier
4. Carefully separate the upper hard disk drive carrier rails
2
, and then rotate the drive upright as
shown above.
Release the rails to lock the drive in place.
52 Chapter 9 Installing hard disk drives ENWW
