HP Workstation Z600 User Manual

System Board
System BoardSystem Board
System Board
System Board Form Factor
System Board Form FactorSystem Board Form Factor
System Board Form Factor 14.2 x 11 inches
Processor Socket
Processor SocketProcessor Socket
Processor Socket Dual LGA 1366
CPU Bus Speed
CPU Bus SpeedCPU Bus Speed
CPU Bus Speed QPI: Up to 6.4GT/second, depending on processor
Chipset
ChipsetChipset
Chipset Intel® 5520
Super I/O Controller
Super I/O ControllerSuper I/O Controller
Super I/O Controller SMSC SCH5327, Rev B
Memory Expansion Slots
Memory Expansion SlotsMemory Expansion Slots
Memory Expansion Slots 6 (3 per processor)
Memory Type Supported
Memory Type SupportedMemory Type Supported
Memory Type Supported DDR3, UDIMM (Unbuffered), ECC
Memory Modes
Memory ModesMemory Modes
Memory Modes NUMA (Non-Uniform Memory Architecture), Memory Node Interleave
Memory Speed Supported
Memory Speed SupportedMemory Speed Supported
Memory Speed Supported 800, 1066, & 1333MHz

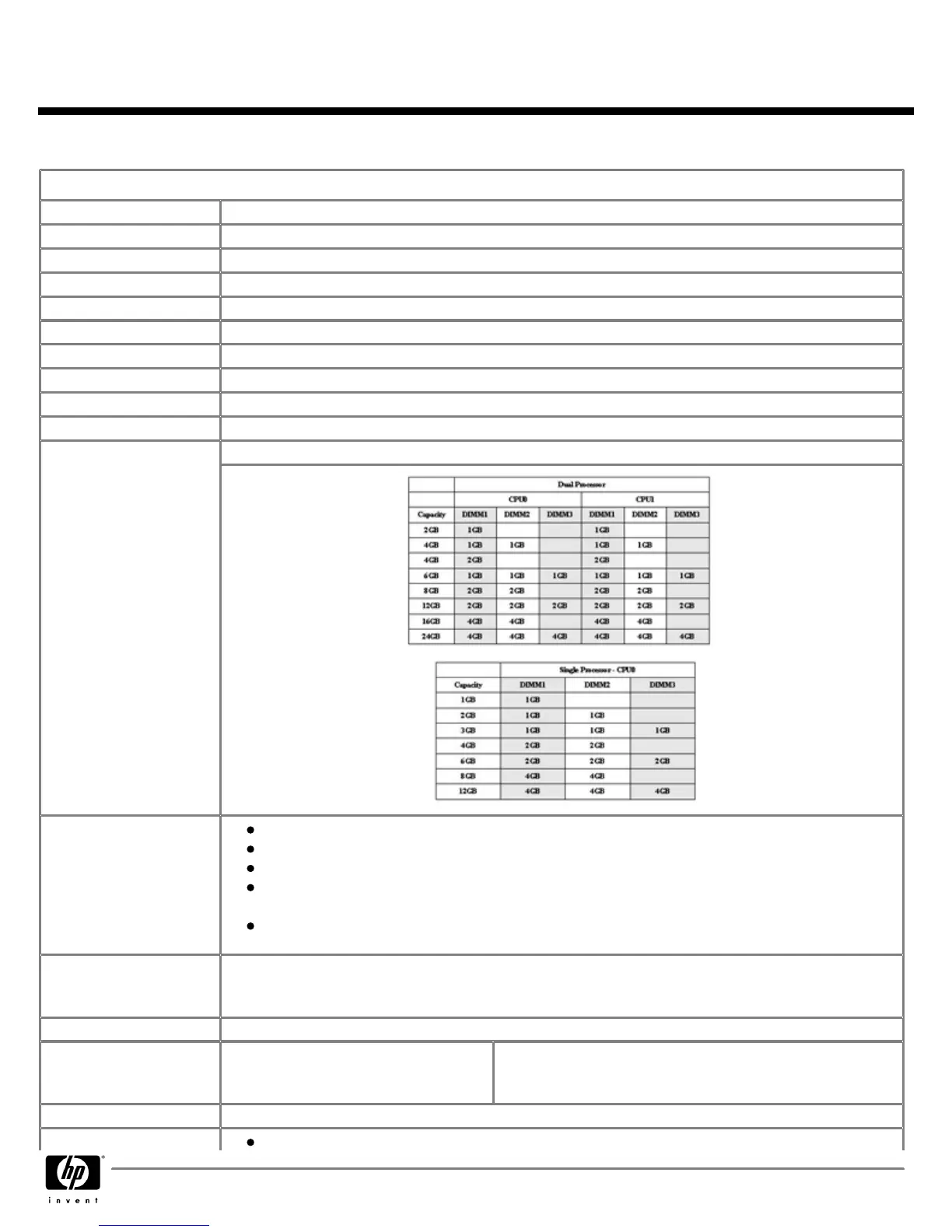

Memory
MemoryMemory
Memory
Maximum Memory Supports up to 24GB
Memory Configuration
Memory ConfigurationMemory Configuration
Memory Configuration
(Supported)
Not all memory configurations possible are represented below.
Only ECC DIMMs are supported.
Do not install memory modules into memory slots if corresponding processor is not installed.
Dual processor configurations with memory modules installed for only one processor is not
supported.
The 4GB DIMM for Z400 and Z600 is not compatible with the Z800 4GB DIMM. They are not
interchangeable.
PCI Express Connectors
PCI Express ConnectorsPCI Express Connectors
PCI Express Connectors
(Gen2 Rev 0.7 connectors)
2 PCI Express x16 Gen2 graphics
1 PCI Express Gen2 (x8 mechanically, x4 electrically)
1 PCI Express Gen1 (x8 mechanically, x4 electrically)
PCI Connectors
PCI ConnectorsPCI Connectors
PCI Connectors (5.0V) 2 full length 33 MHz 32-Bit
Interfaces Supported
Interfaces SupportedInterfaces Supported
Interfaces Supported SATA
SATASATA
SATA Integrated 6-channel SATA 3.0Gb/sec controller with RAID 0,
1, 5, 10 and NCQ. (Factory integrated RAID is Microsoft
Windows only)
Serial Attached SCSI
Serial Attached SCSISerial Attached SCSI
Serial Attached SCSI Requires Optional PCIe card
Integrated RAID
Integrated RAIDIntegrated RAID
Integrated RAID Integrated SATA RAID
QuickSpecs
HP Z600 Workstation
HP Z600 WorkstationHP Z600 Workstation
HP Z600 Workstation
System Technical Specifications
DA - 13277 North America — Version 2 — April 13, 2009 Page 14

HP Workstation Z600 Specifications

General

Chipset	Intel 5520
Processor	Intel Xeon 5500 and 5600 series
Memory	Up to 24GB DDR3 ECC Registered RAM
Storage	Supports SATA hard drives; Solid State Drives (SSD) also supported
Graphics	NVIDIA Quadro series, ATI FirePro series
Operating System	Windows 7 Professional, Red Hat Enterprise Linux
Power Supply	650W 85% efficient power supply
Expansion Slots	2 PCIe x16, 1 PCIe x8, 1 PCI
Networking	Integrated Broadcom 5764 Gigabit Ethernet
