Rear panel components

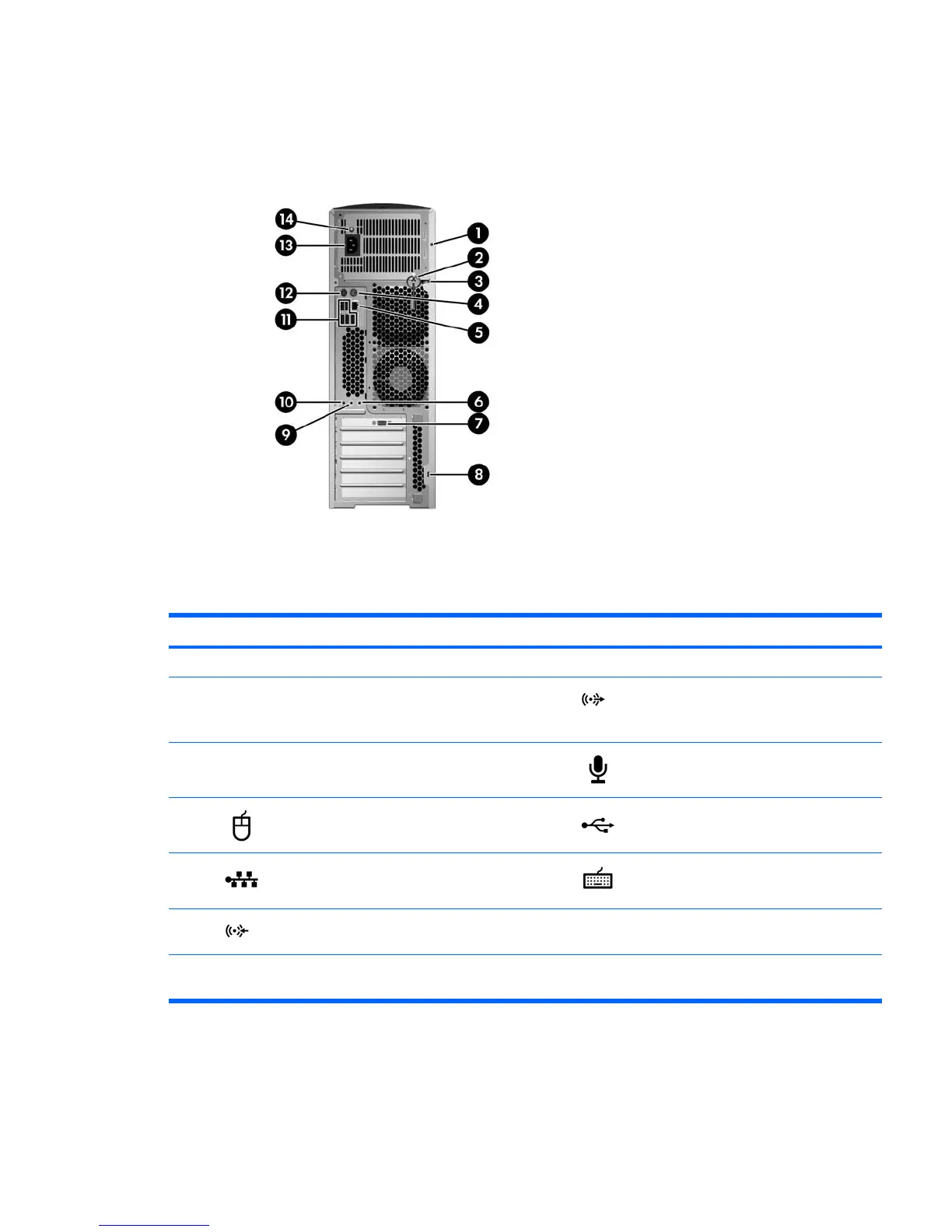

The following figure shows the rear panel components of a typical HP xw6600 Workstation.
Figure 1-4 Rear panel components
The rear panel connectors are labeled with industry-standard icons and colors to assist you in connecting
your peripheral devices.
Table 1-3 Rear panel components
Item Symbol Description Item Symbol Description
1 Universal chassis clamp lock opening 8 Cable lock slot
2 Access panel key loop 9 Audio line-out connector (green) *
3 Padlock loop 10 Microphone connector (pink)
4 PS/2 mouse connector (green) 11 USB 2.0 (5)
5 RJ-45 network connector 12 PS/2 keyboard connector
6 Audio line-in connector (blue)* 13 Power cord connector
7 Graphics connector 14 Power supply Built-In Self Test (BIST)
LED
*HP does not support external audio cables longer than three meters.
ENWW Product features 5
