Blitz
™
No. 1200CMB
27

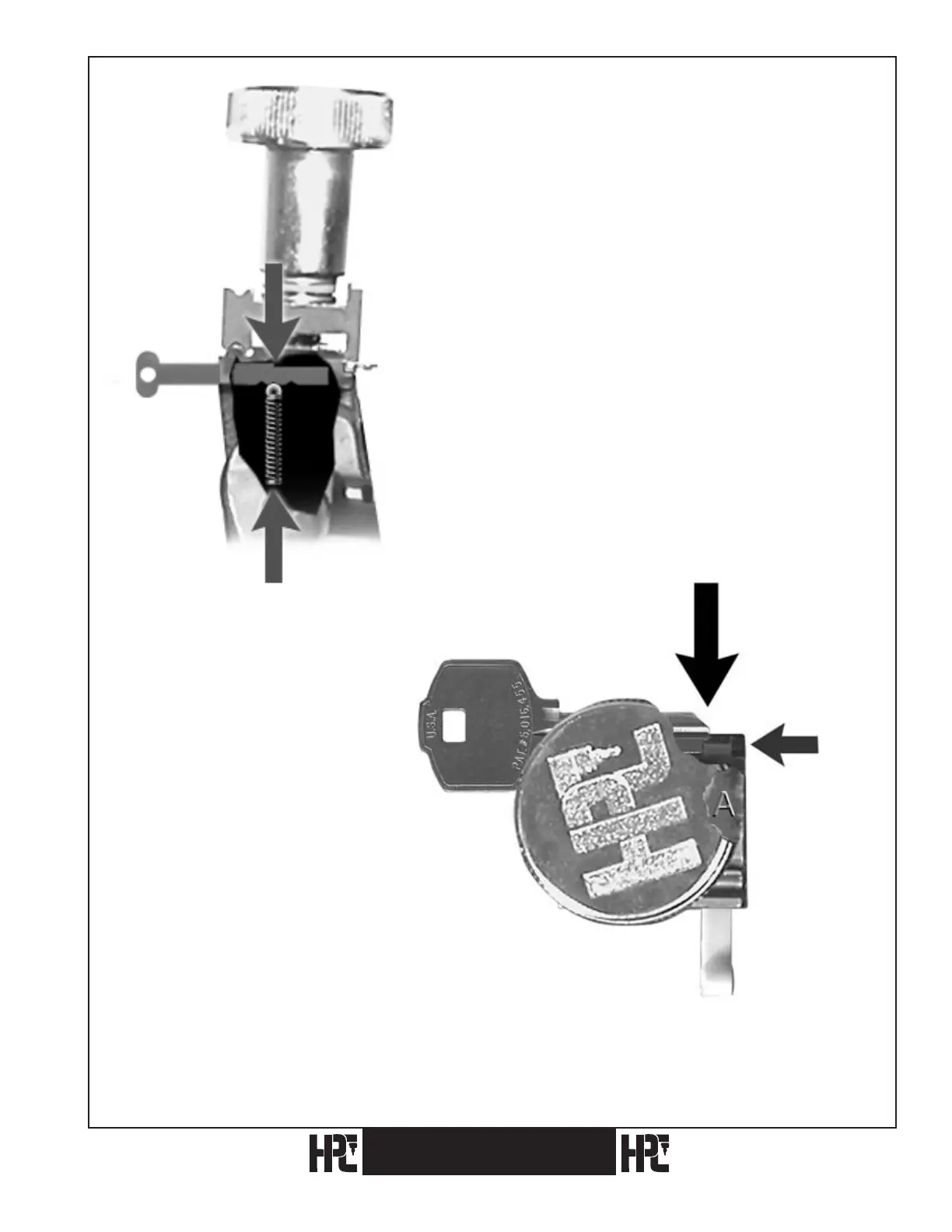

Key vise tip gauge, pushed inward
to the second groove position.
Tip gauge is pulled to rear while
cutting.
No. CM-1054MA
Key Vise in 2nd Position.
Top jaw of vise removed
to show a top view of the
lower jaw only, for key
positioning and stop bar
settings.
Gauge against tip stop. Be sure key
lays flat against ledge before tightening
wing nut.
*For BEST type blanks see section 3.5
