Blitz
™
No. 1200CMB
36
DEPTH CRANK

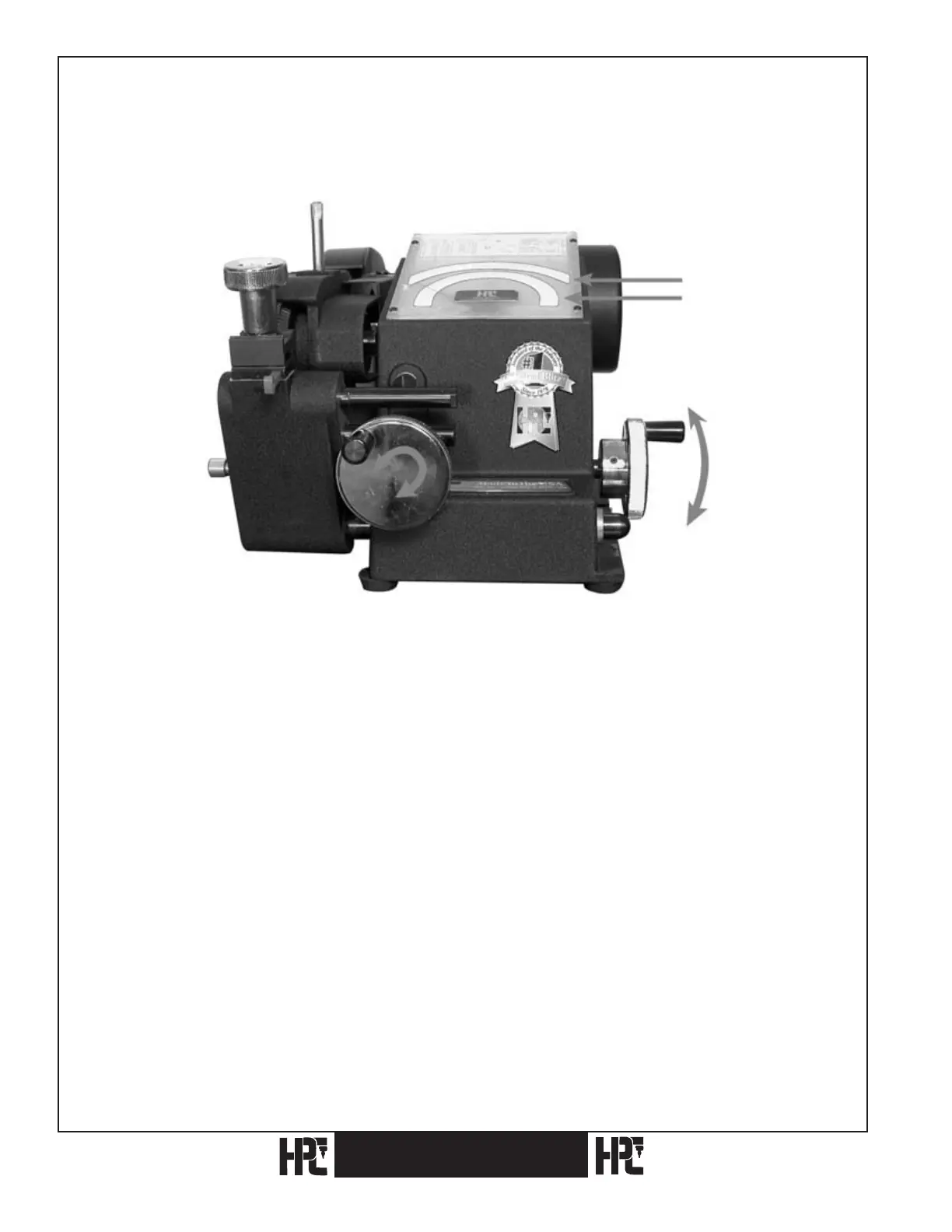

THE DEPTH OF A CUT is controlled by rotating the No. CM-1026X Depth Crank, located at the front of the
machine. Clockwise rotation, as indicated above, moves the key inward towards the cutter. Counter-clockwise
rotation moves the key outward and away from the cutter.
LATERAL CRANK
THE LATERAL MOVEMENT of the key is controlled by rotating the No. CM-1044X lateral crank located on the
right hand side of the machine. Counter-clockwise rotation moves the key to the left and causes the cutter to cut
farther from the shoulder.
DEPTH CRANK
Clockwise rotation,
cuts deeper.
LATERAL CRANK
Counter-clockwise
rotation, cuts farther
from shoulder.
Space Window
Depth Window
