HPC MINI SPEEDEX 9120RM - Lubrication and Preventive Maintenance; Guarantee and Service Information

MINI SPEEDEX
®
9120RM
English
34
060303
1
2
2A
31
32
33
9
10
11
12
13
20
32
24
21
22
29
28
30
35
34
26
13
14
15
16
25
17
19
18
3
4
5
6
7
8
23
27
40
41

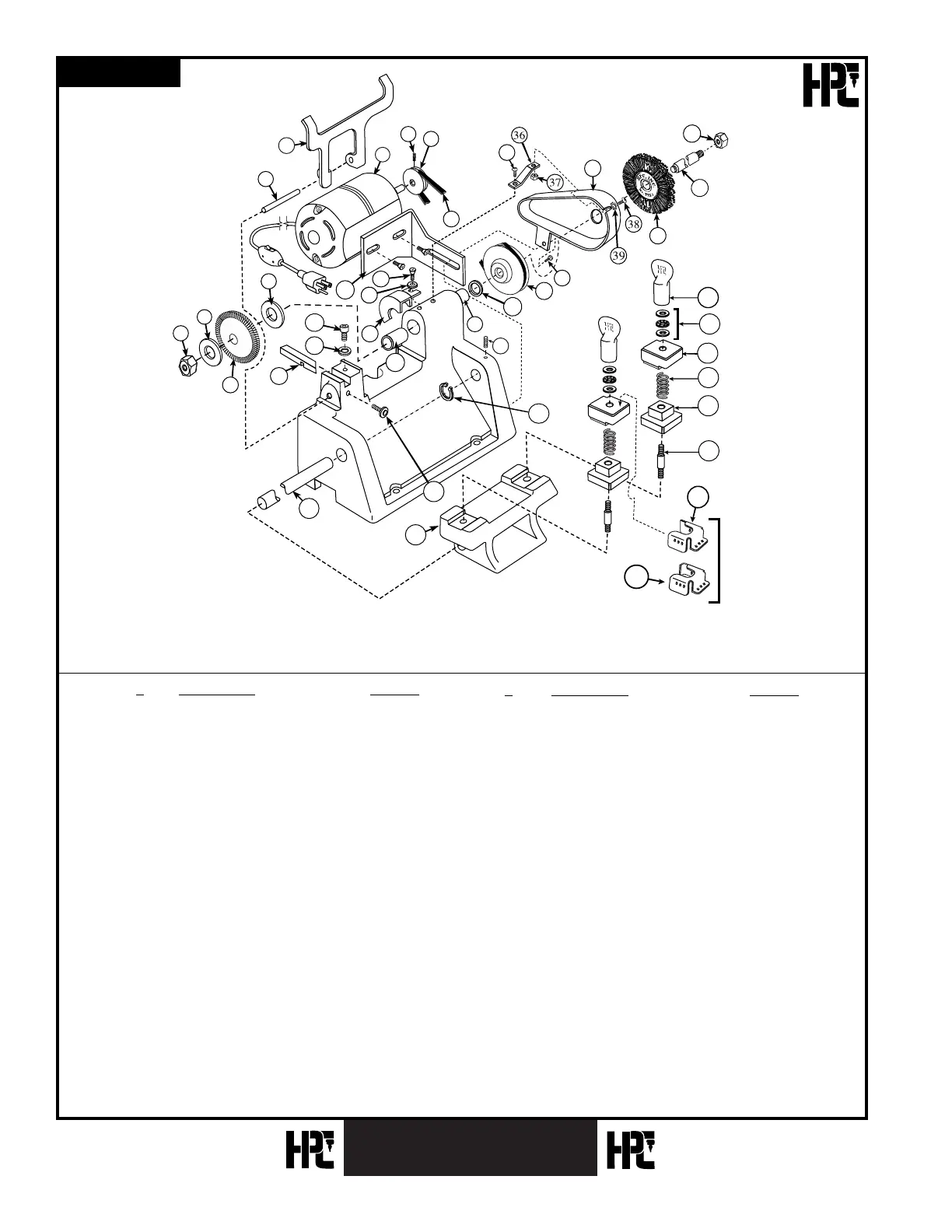

No. 9120RM
# Description Stock #
1. Carriage Shaft 9150-15
2. Carriage CARR-9
3. Wing Nut SNK-3
4. Washer/Bearing Set BBW-2
5. Top Jaw TJAW-4
6. Spring 9100-13
7. Bottom Jaw BJAW-4
8. Vise Stud STUD-4
9. Adjusting Gib Screw 9100-27
10. Tracer 9120-13
11. Washer 9100-26
12. Cap Screw 9100-28
13. Bearings 9100-21
14. Set Screw 9100-11
15. Fiber Washer 9100-20
16. Machine Pulley 9100-19
17. Brush TYX-3
18. Cutter Shaft 9160-3
19. Brush Nut 9100-25
20. Cutter Guard 9100-16
21. Cap Screw 9100-17
#
Description Stock #
22. Washer 9100-17A
23. Buttonhead Screw 9100-18A
24. Motor Bracket 9120-BRKT
25. Belt Guard Assembly 9120-14
26. Buttonhead Screw 9150-21
27. Motor Pulley 9120-30
28. Snap Ring 9100-21A
29. Belt For 9120 9120-BELT
30. Motor Assembly 9120-MOTOR
31. Cutter Nut 9150-29
32. Cutter Washers (2) 9100-6
33. Cutter CW-23RM
34. Gauge Shaft 9100-3
35. Key Gauge 9150-14
36. Tieover Bracket 9160-TIE
37. Nut CM-50148
38. Screw 9100-17
39. Lock Washer 9100-17A
40. Standard Tip Gauge ST-4
41. Best/Short Tip Gauge BT-4
