ItemItem LEDLED StateState DefinitionDefinition
1 Fault/Locate Solid amber This drive has failed, is unsupported, or is invalid.
Solid blue The drive is operating normally and being identified by a
management application.
Flashing amber/blue (1
flash per second)
The drive has failed, or a predictive failure alert has been received
for this drive. The drive has also been identified by a management
application.
Flashing amber (1 flash
per second)
A predictive failure alert has been received for this drive. Replace
the drive as soon as possible.
Off The drive is operating normally and not being identified by a
management application.
2 Online/Activity Solid green The drive is online and has no activity.
Flashing green (4
flashes per second)
The drive is operating normally and has activity.
Off No power present

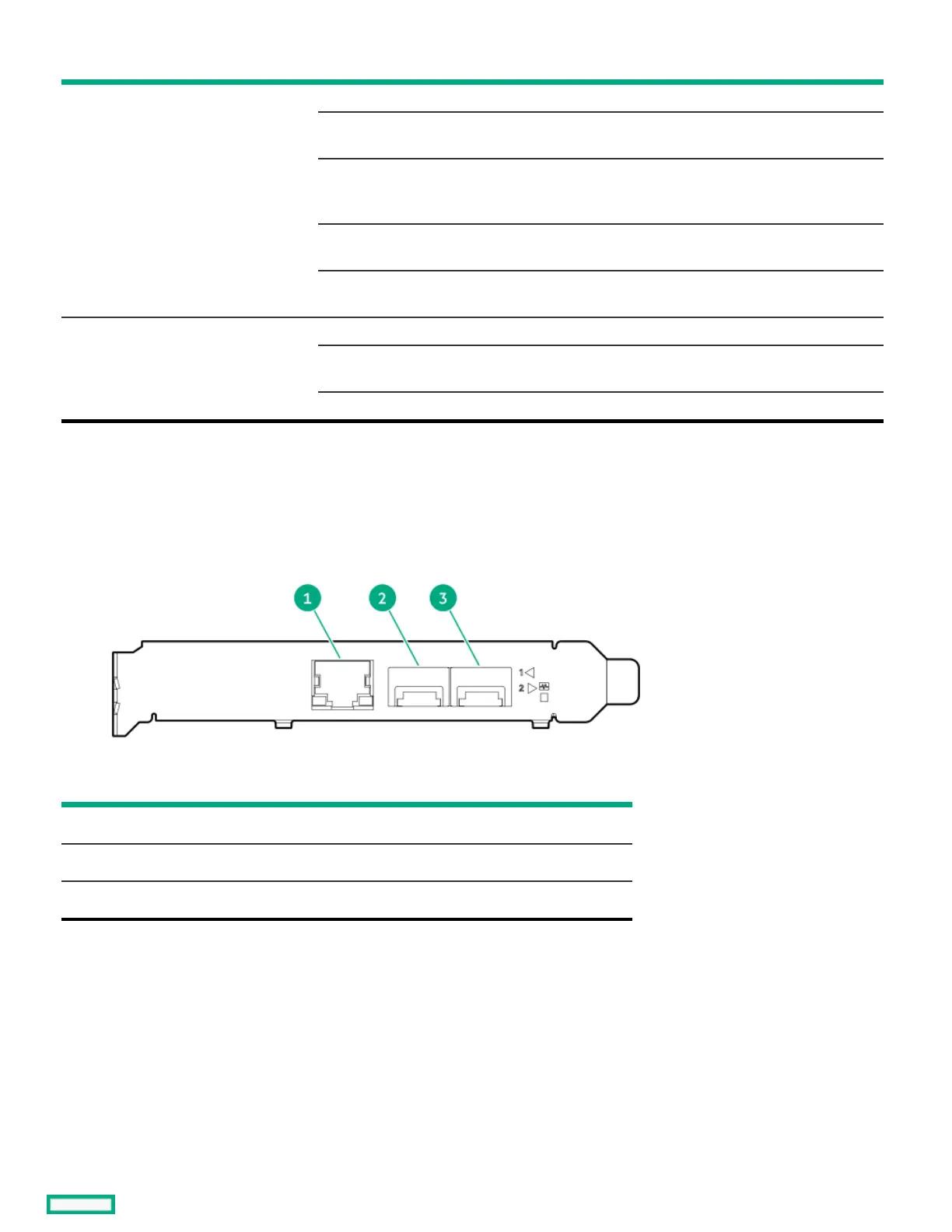

DSC-25 2-port SFP28 card ports and LEDsDSC-25 2-port SFP28 card ports and LEDs
PortsPorts
ItemItem PortPort DescriptionDescription
1 Management port 1GbE RJ45
2 Network interface port 10/25G SFP+ based
3 Network interface port 10/25G SFP+ based
LEDsLEDs
The HPE for Pensando DSP DSC-25 2p SFP28 card is a dual-port, single-slot, half-height, half-length (HHHL) SFP28 network adapter. It has
LEDs for Link (L) and Activity (A) for each port. A half-height bracket is shown in the following illustration with SFP28 ports and LEDs.
