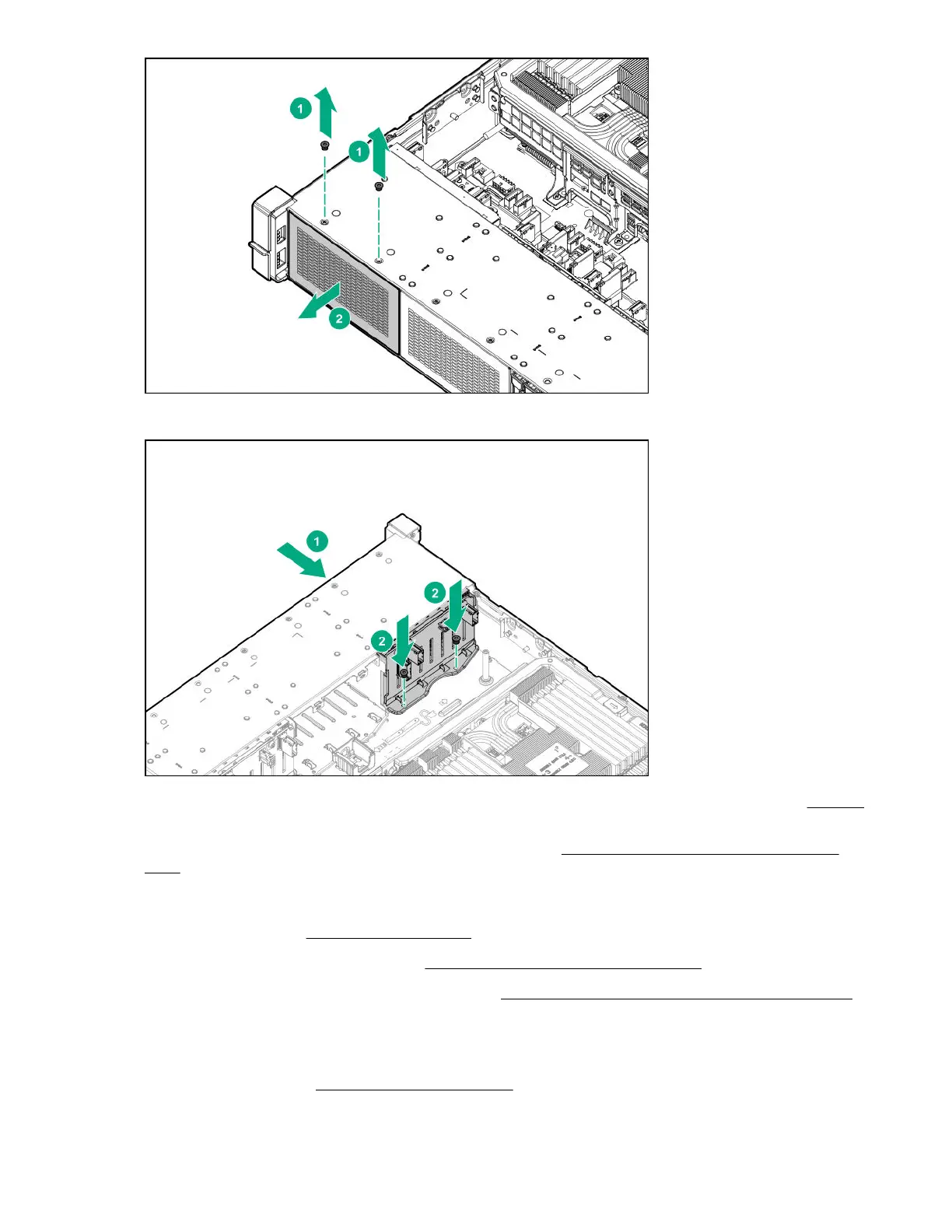

8. Install the drive cage.
9. Route and connect the cables depending on the server configuration. For more information, see Cabling
on page 162.
To cable the drive cage to the HPE 12G SAS Expander, see Installing the HPE 12G SAS Expander
Card on page 105.
10. If removed, do the following:
a. Install the air baffle (Installing the air baffle on page 58).
b. Install the processor mezzanine tray (Installing a processor mezzanine tray on page 129).
c. Install the CPU Mezzanine UPI performance kit (Installing a CPU Mezzanine UPI performance kit
on page 130).
11. Install the fan cage.
12. Install the access panel (Installing the access panel on page 56).
76 Installing hardware options
