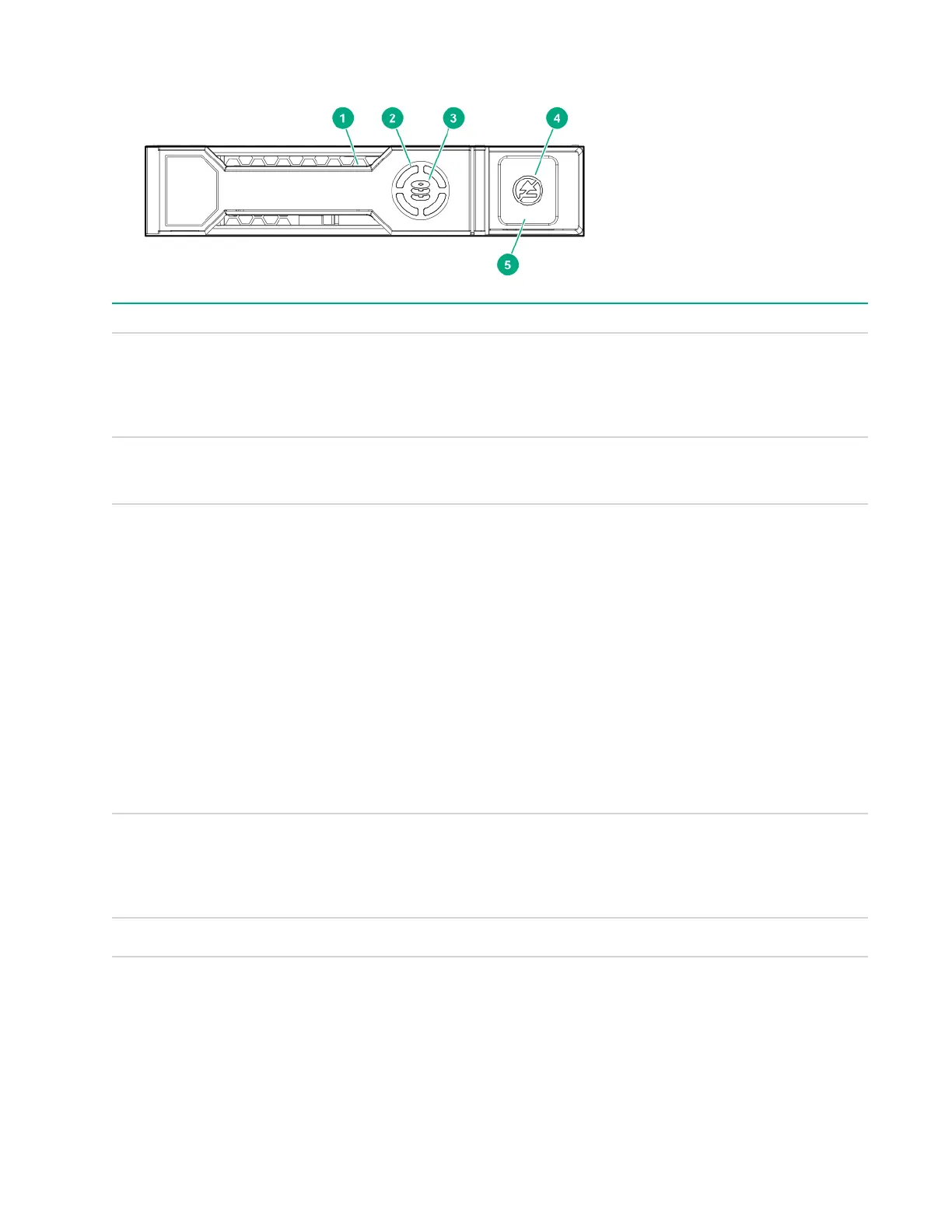

SFF SmartDrive components
Item Description Status
1 Locate LED
1
Solid blue = The drive is being identified by a host
application.
Flashing blue = The drive carrier firmware is being
updated or requires an update.
2 Activity ring LED Rotating green = Drive activity
Off = No drive activity
3 Drive status LED Solid green = The drive is a member of one or more
logical drives.
Flashing green = The drive is rebuilding or
performing a RAID migration, stripe size migration,
capacity expansion, or logical drive extension, or is
erasing.
Flashing amber/green = The drive is a member of
one or more logical drives and predicts the drive will
fail.
Flashing amber = The drive is not configured and
predicts the drive will fail.
Solid amber = The drive has failed.
Off = The drive is not configured by a RAID controller.
4 Do not remove LED Solid white = Do not remove the drive. Removing the
drive causes one or more of the logical drives to fail.
Off = The drive can be removed. Removing the drive
does not cause a logical drive to fail.
5 Do not remove button Press to open the release lever.
1
The blue locate LED is behind the release lever and is visible when illuminated.
Enabling embedded chipset SATA controller support
Use the Embedded SATA Configuration option to enable embedded chipset SATA (Serial Advanced
Technology Attachment) controller support. You can select AHCI or HPE Smart Array S100i SR Gen10 SW
RAID support. Make sure that you are using the correct operating system drivers for your selected option.
20 SFF SmartDrive components
