HPE ProLiant ML350 Gen9 - Page 117

Hardware options installation 117
11.

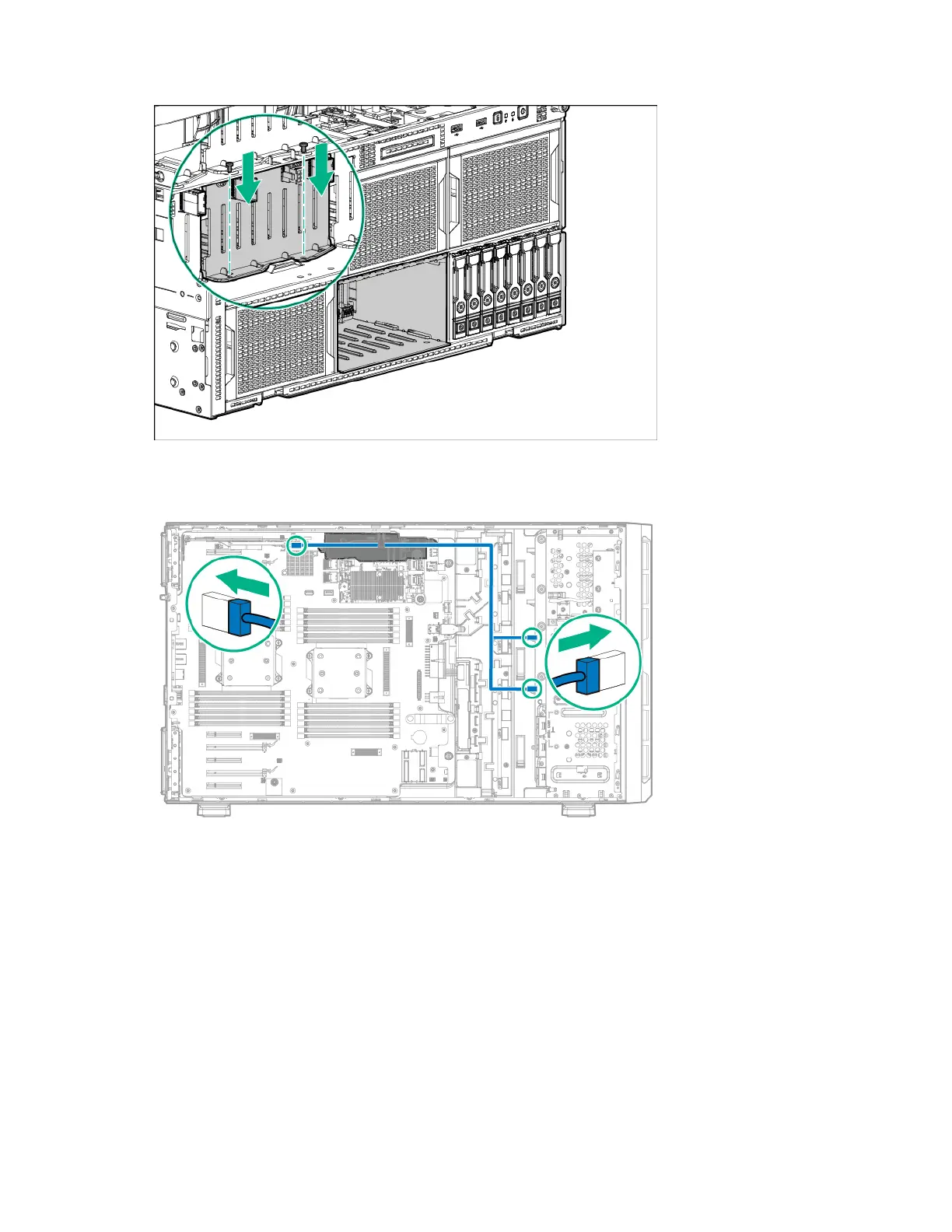

Using the two T-15 screws, secure the rear side of the drive cage.
12. Connect the Mini-SAS cable from a storage controller to the drive backplane:
o Cable routing if the storage controller is installed in PCIe slot 1 to 4.
