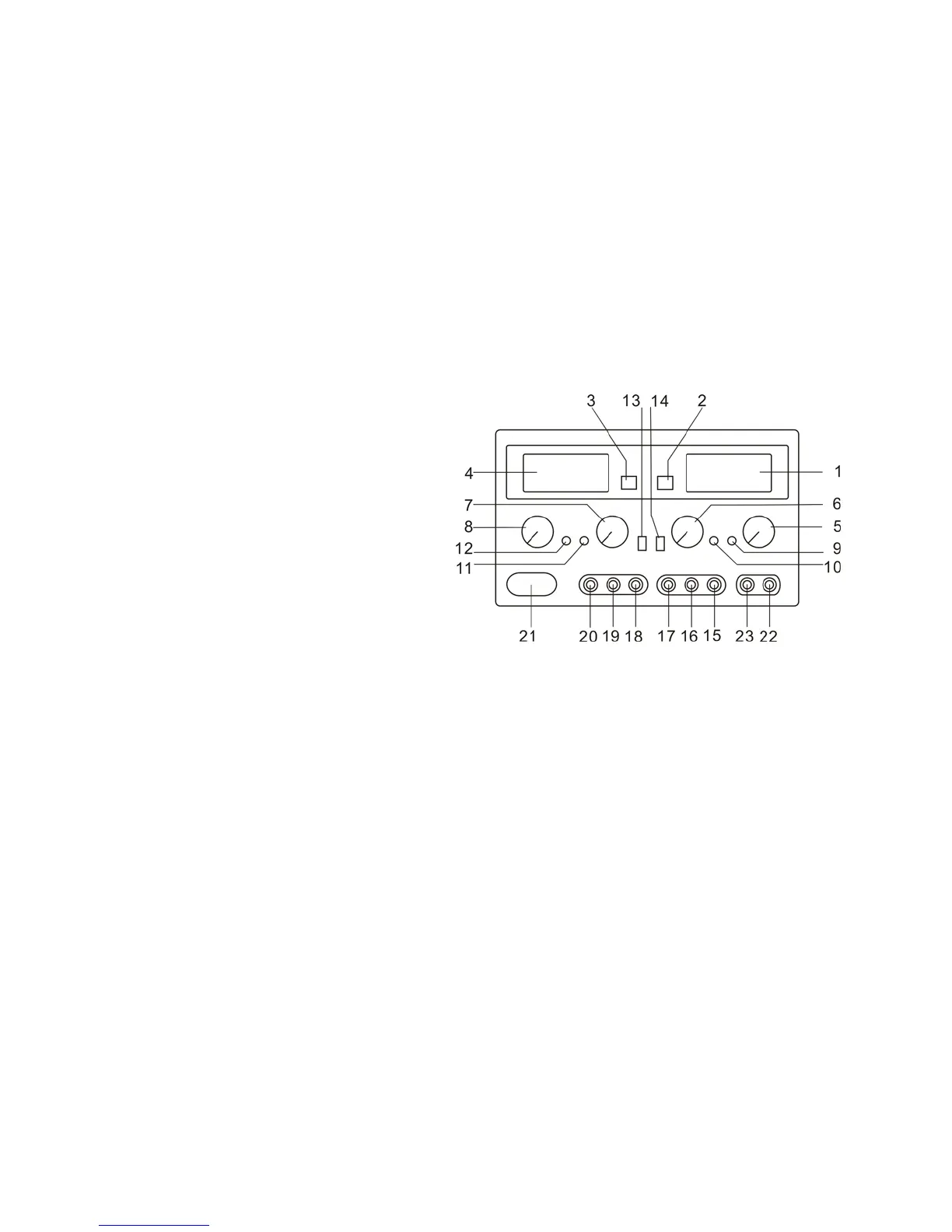

(4) Voltage and current indication for slave output.
(5) Voltage adjustment of master output.
(6) Current adjustment of master output.
(7) Voltage adjustment of slave output.
(8) Current adjustment of slave output.
(9) Constant voltage mode indicator
light for master output.
(10) Constant current mode indicator
light for master output.
(11) Constant voltage mode indicator
light for slave output.
(12) Constant current mode indicator
light for slave output and & twice current output indicator light in parallel mode.
(13) Independent, Series and Parallel selector switch.
(14) Independent, Series and Parallel selector switch.
(15) Positive output terminal of master output.
(16) Ground connection terminal of case.
(17) Negative output terminal of slave output.
(18) Positive output terminal of slave output.
(19) Ground connection terminal of case.
