Huawei 2288H V5 - Page 106

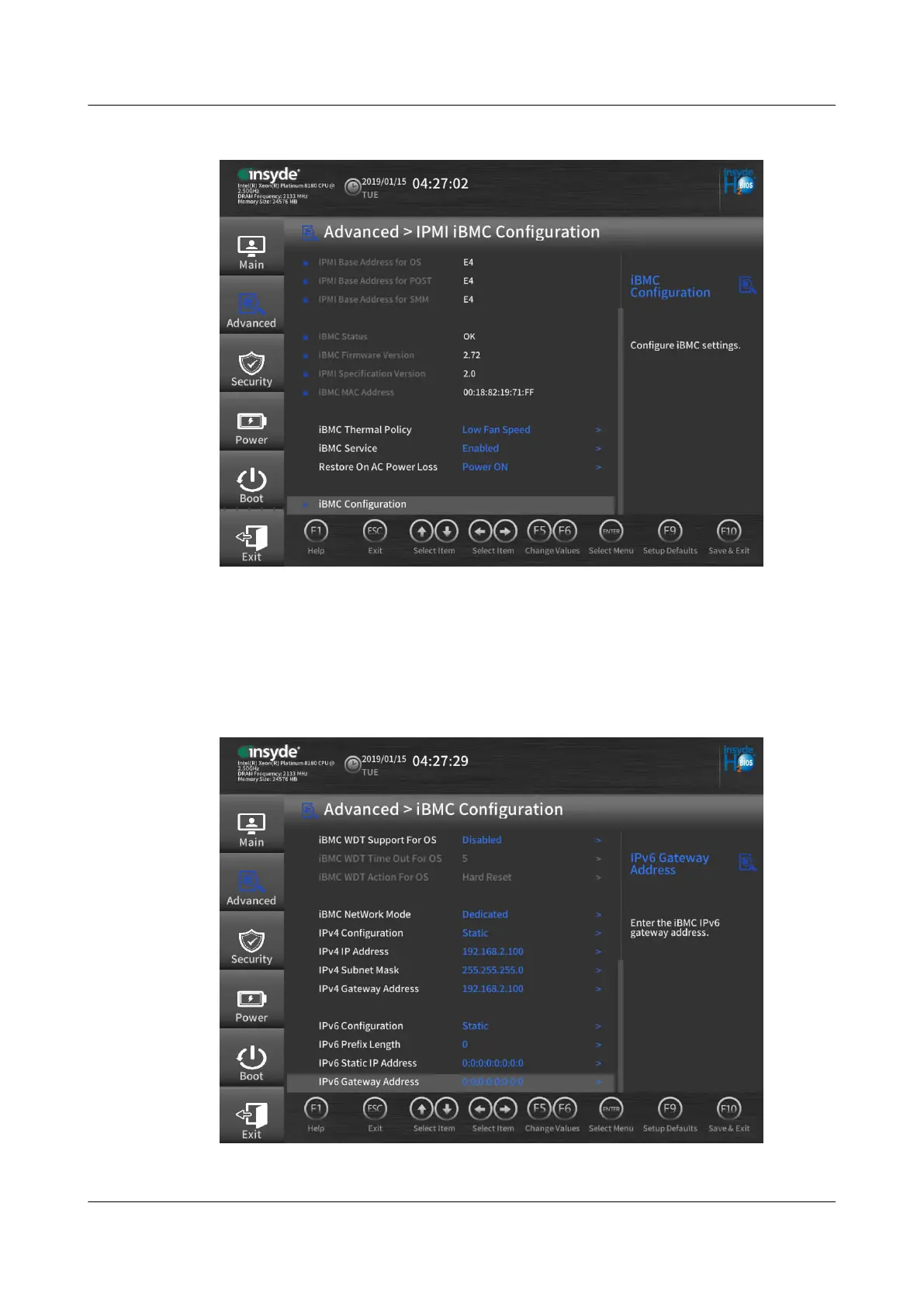

Figure 4-28 IPMI iBMC Configuration
Step 8 Select iBMC Configuration and press Enter.
The iBMC Configuration screen displayed shows the IP address of the iBMC network port.
See Figure 4-29.
Figure 4-29 iBMC Configuration
2288H V5 Server
User Guide
4 Setup
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 97
