Figure 5-24 Removing a PCIe card filler panel
Step 9 Insert the PCIe card into a PCIe slot. See (1) in Figure 5-25.
Step 10 Close the latch. See (2) in Figure 5-25.

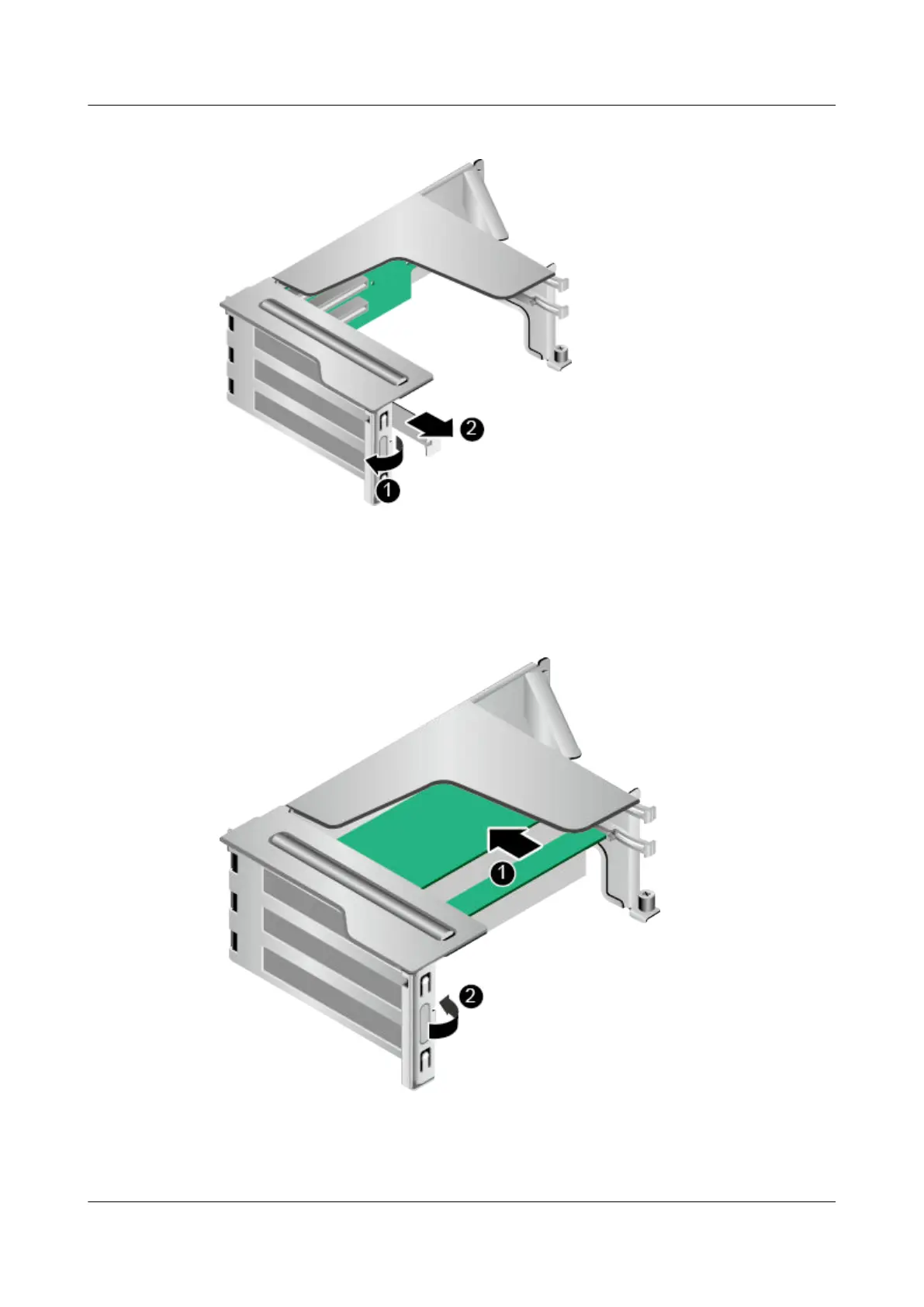

Figure 5-25 Installing a PCIe card on a riser card
Step 11 Some GPUs need to connect to dedicated power cables. If the PCIe card is a GPU, select a
power cable connection method based on the GPU model.
