Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Remove the power cables. For details, see 3.7 Removing Cables from a PSU.
Step 4 Remove the server. For details, see 3.3 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 3.4 Removing the Chassis Cover.
Step 6 Take a spare drive module out of its ESD bag.
Step 7 Install the rear drive module in the chassis, and tighten the screws. See Figure 5-60.

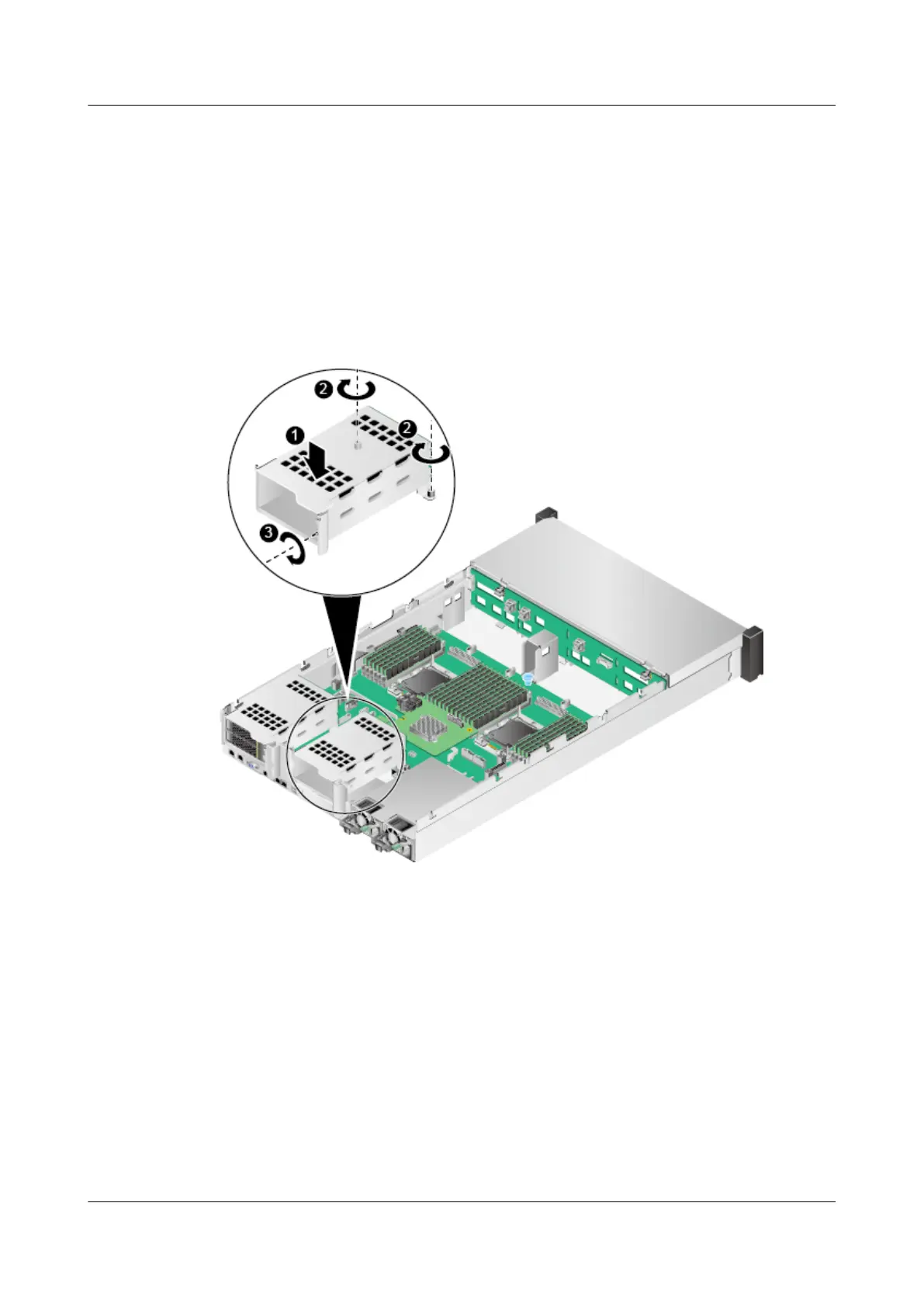

Figure 5-60 Installing a two-slot drive module
Step 8 Install all drives in the drive module.
Step 9 Connect cables to the drive module. For details, see 7 Internal Cabling.
Step 10 Install the chassis cover. For details, see 3.5 Installing the Chassis Cover.
Step 11 Install the server. For details, see 4.4 Installing the Server on Guide Rails.
Step 12 Connect the power cables. For details, see 5.4 PSU.
Step 13 Power on the server. For details, see 3.1 Powering On the Server.
Step 14 Log in to the iBMC WebUI, and check whether the new component is normal. For details, see
the Huawei Rack Server iBMC User Guide.
----End
