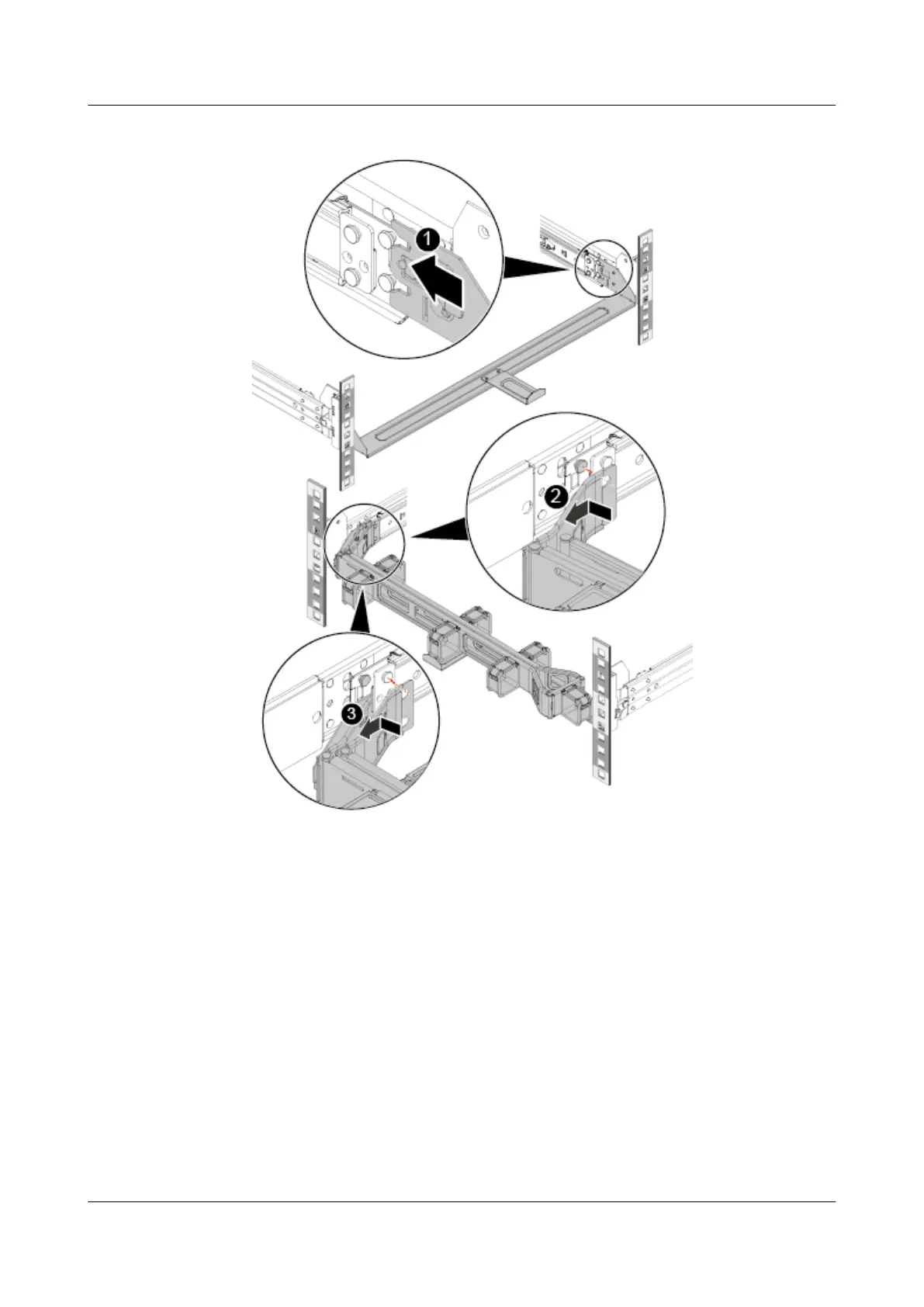

Figure 4-13 Installing a CMA
2. Insert the nail heads on the outer left rail into the holes in the outer support lever of the
CMA, and pull the CMA out to secure it. See (2) in Figure 4-13.
3. Do the same for the nail heads on the inner left rail and the inner support lever. See (3)
Figure 4-13.
Step 4 Connect power cables to the server and power on the server. Connect a network cable, a VGA
cable, or USB devices as required.
----End
4.5 Connecting External Cables
2288H V5 Server
User Guide
4 Setup
