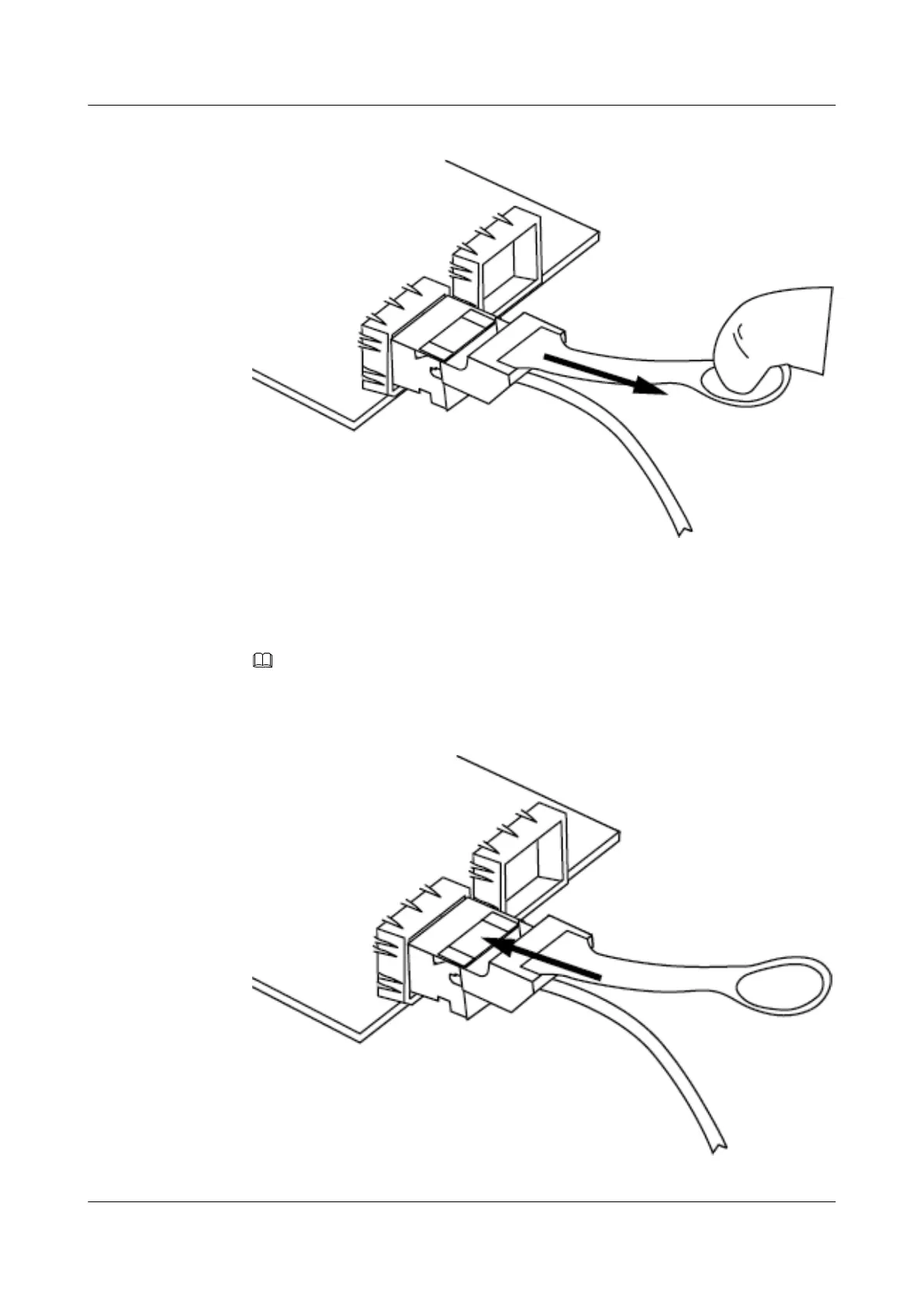

Figure 4-19 Removing a 56G IB cable
2. Connect the new 56G IB cable.
Remove the dust-proof cap on the port, and insert the cable connector into the port. See
Figure 4-20.
NOTE
When you hear a click and the cable cannot be pulled out, the connector is secured.
Figure 4-20 Connecting a 56G IB cable
2288H V5 Server
User Guide
4 Setup
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 87
