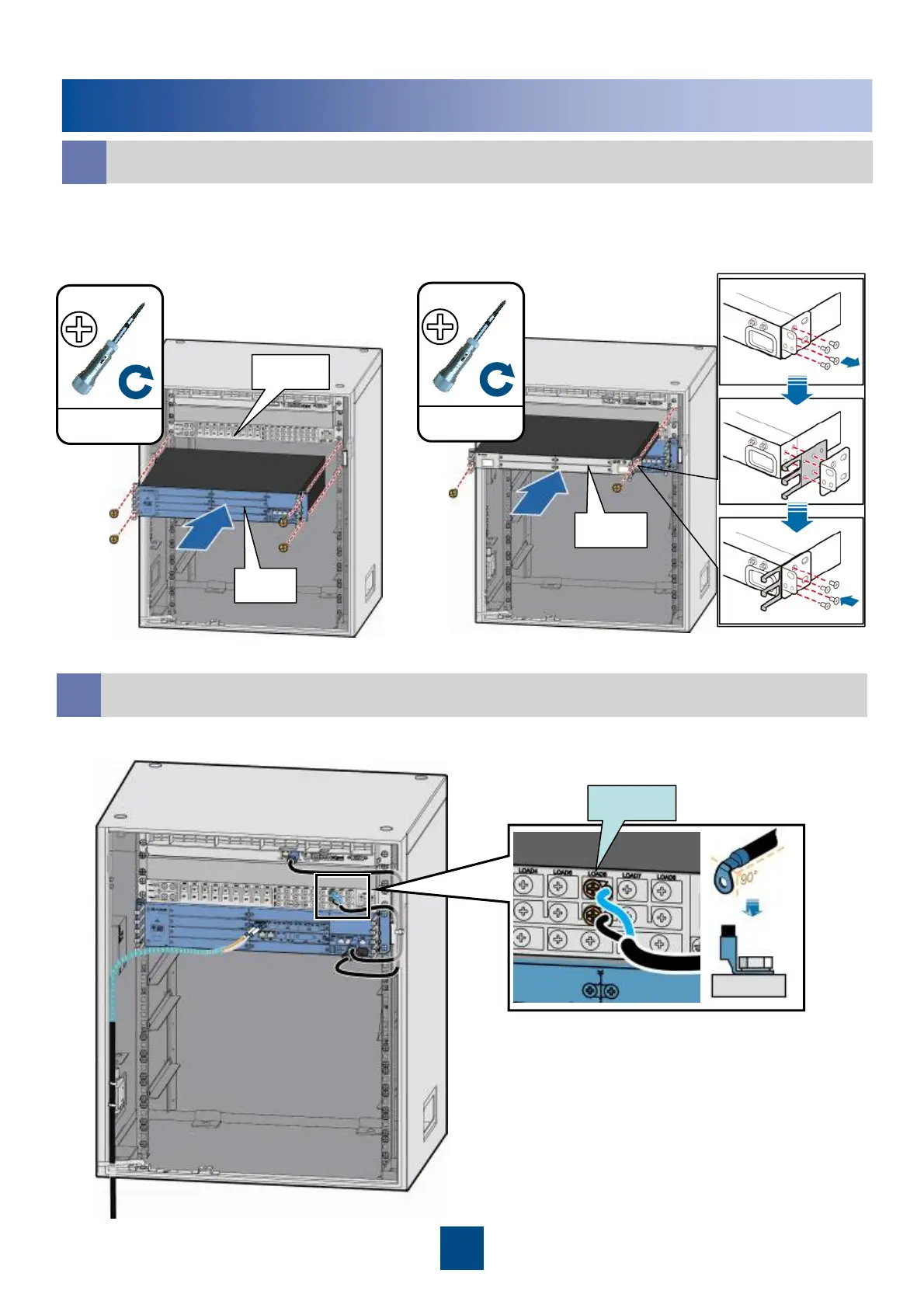

Installing the BBU in the TMC11H(Ver.B)
Installing the BBU
a
Slide the BBU into the TMC11H along
guide rails, and then tighten the four
M6 screws on the BBU panel.
Slide the SLPU into the TMC11H along
the guide rails, and then tighten the
two M6 screws on the SLPU panel.
b
Installing the BBU Cable
LOAD6
Install the BBU power cable.
BBU
DCDU
2 N•m
M6x16
2 N•m
M6x16
SLPU
