Table 1-14 Ports on the UCCU
Silkscree
n
Connecto
r
Quantity Description
M0 to M3 QSFP 4 Function as primary interconnection ports and
connect to secondary interconnection ports.
Each optical port has two CPRI TX/RX channels
with a maximum rate of 10.1376 Gbit/s and two
SRIO TX/RX channels with a maximum rate of
6.25 Gbit/s.
M4/S1 QSFP 1 Functions as a primary interconnection port and
connects to a secondary interconnection port.
Has two CPRI TX/RX channels with a maximum
rate of 10.1376 Gbit/s and two SRIO TX/RX
channels with a maximum rate of 6.25 Gbit/s.
M5/S0 QSFP 1 Functions as a secondary interconnection port and
connects to a primary interconnection port.
Has four 10GE TX/RX channels.
1.4 BBU3900&BBU3910 Board Configuration

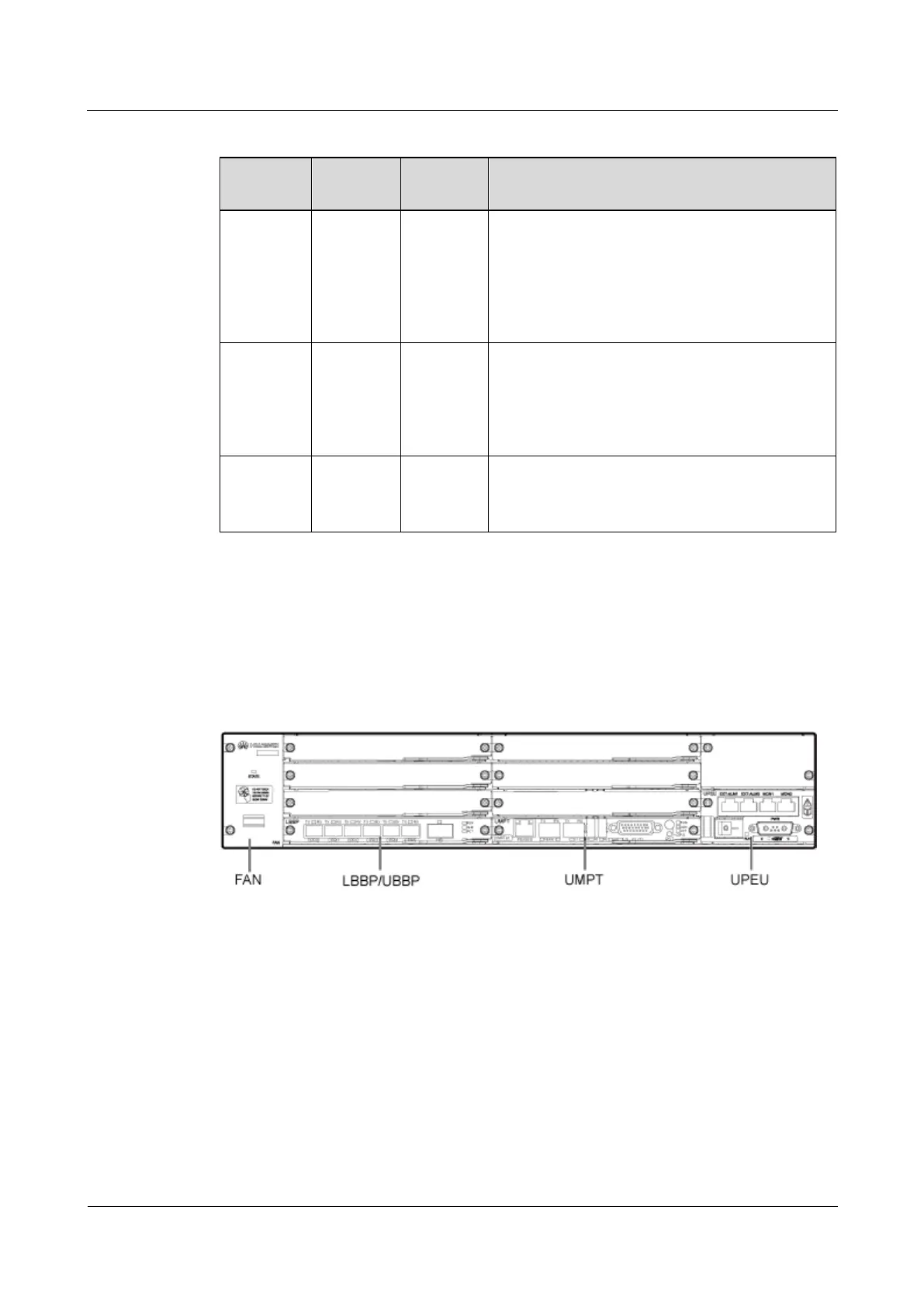

Figure 1-28 shows the typical configuration of the BBU3900&BBU3910.
Figure 1-28 Typical configuration of the BBU3900&BBU3910
