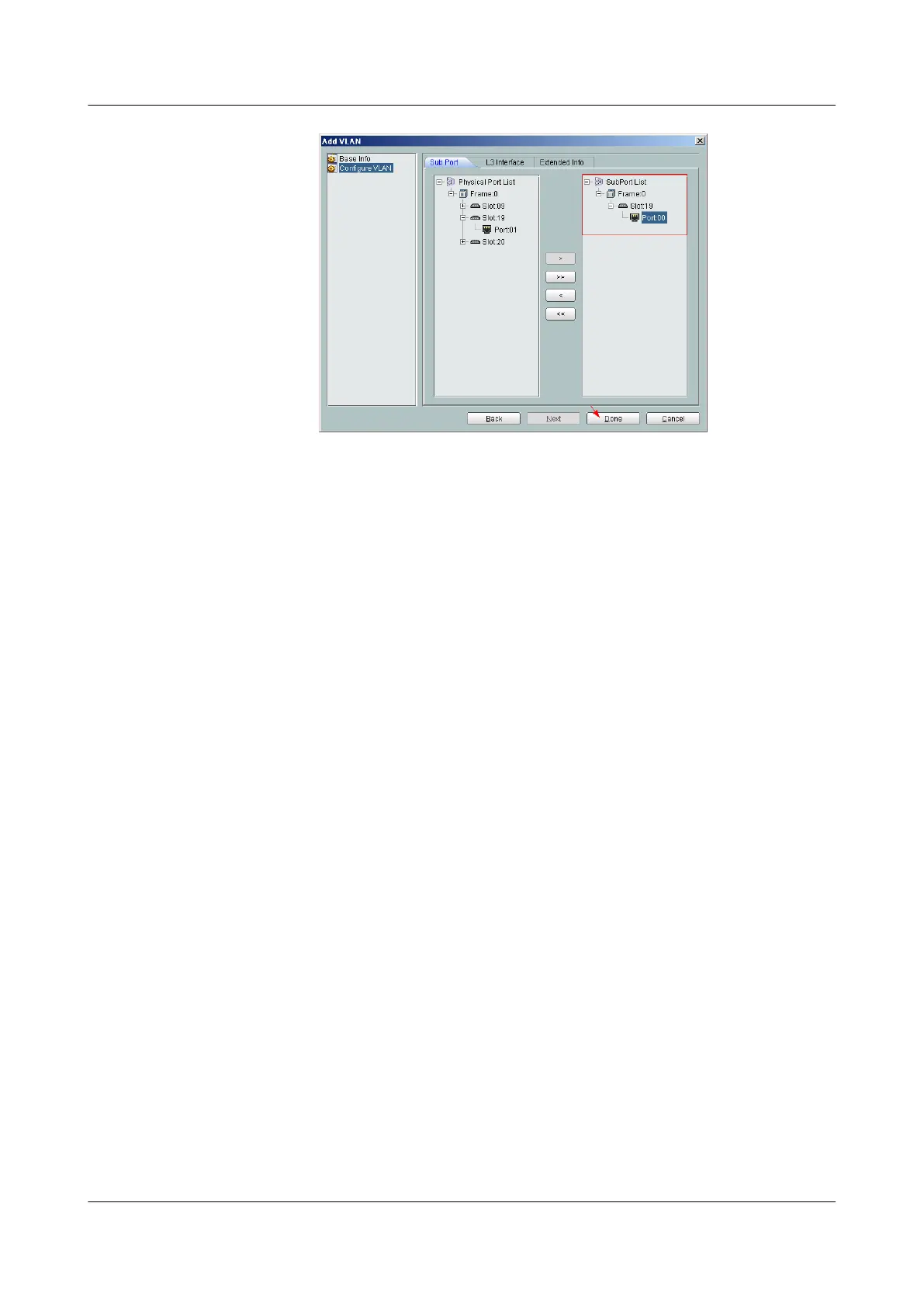

e. Click Done.
3. Add a service virtual port on the OLT side.
a. On the VLAN tab page, select the record where VLAN ID is set to 1000 and
click the ServicePort tab in the lower pane.
b. In the information list, right-click and choose Add from the shortcut menu.
c. In the dialog box that is displayed, set the parameters.
– Name:IGMP
– VlAN Choice: Smart VLAN
– Connection Type: LAN-GPON (when the physical port is a GPON port) or
LAN-EPON (when the physical port is an EPON port)
– Interface Selection: 0/2/1/0/1 (when the connection type is LAN-GPON) or
0/2/1/0 (when the connection type is LAN-EPON)
– Vlan ID: 1000 (SVLAN ID)
– Service Type: Multi-Service VLAN
– User VLAN: 30 (CVLAN ID)
– Keep the upstream and downstream settings the same: selected
– Upstream Traffic Name: ip-traffic-table_6 (it is recommended that you use
the default profile ip-traffic-table_6 because the OLT does not limit the rates
of service streams)
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
105
