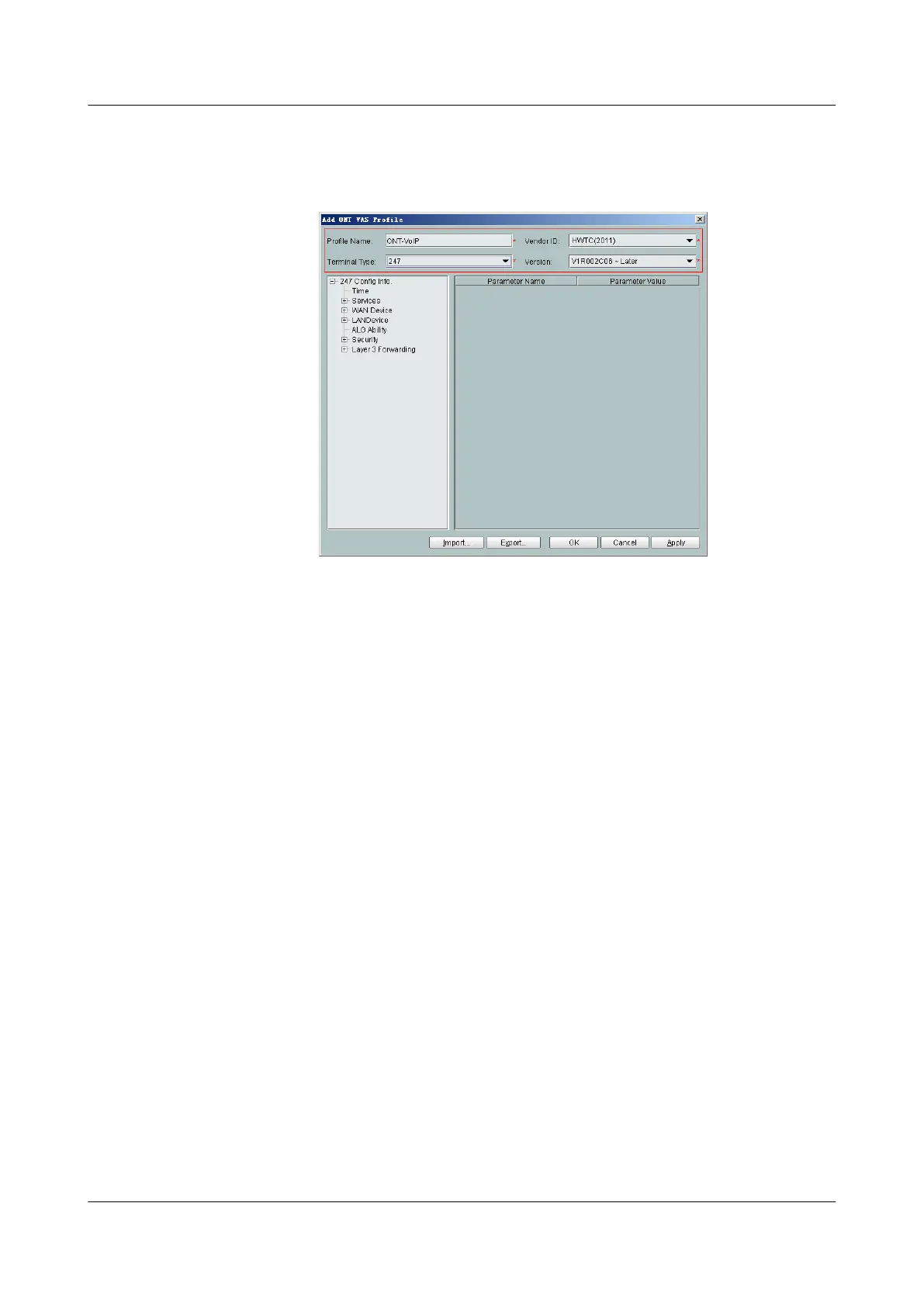

– Vendor ID: HWTC(2011)
– Terminal Type: 247
– Version: V1R002C06-Later
d. Configure the parameters of the voice WAN port.
a. In the navigation tree, choose WAN Device > WAN Device 1 > WAN
Connection. Select WAN Connection, right-click, and choose Add IP
Connection from the shortcut menu.
b. Select WAN IP Interface 1 and enter (or select) a proper value.
– WAN Interface Name: ONT-VoIP
– WAN Enable: enable
– Connection Type: IP_Routed
– VLAN ID: 20 (The VLAN ID of the ONT must be the same as the user-
side VLAN ID configured on the OLT.)
– Priority: 6
– Addressing Type: DHCP
– Service List: VOIP (For configuring the VoIP service, VoIP or a
combination containing VoIP needs to be selected.)
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
89
