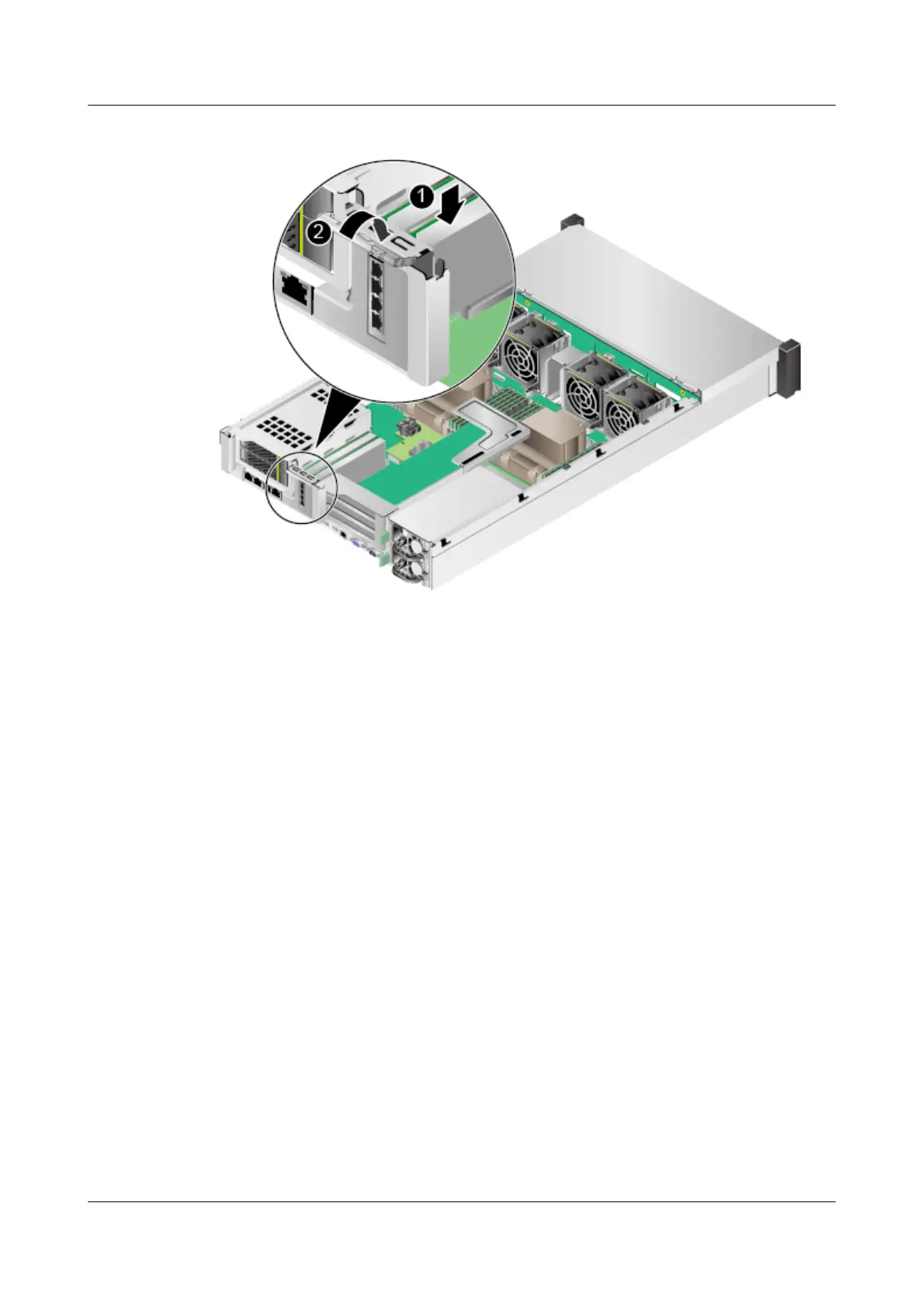

Figure 7-43 Installing a PCIe card on the mainboard
Step 5 Close the latch. See step (2) in Figure 7-43.
Step 6 Install the chassis cover. For details, see 7.12 Installing the Chassis Cover.
Step 7 Install the RH2288H V3. For details, see 3.4 Installing the Server.
Step 8 Connect all external cables such as power and network cables. For details, see 3.5
Connecting External Cables.
Step 9 Power on the RH2288H V3. For details, see 4.1 Powering On the Server.
----End
RH2288H V3 Server
User Guide 7 Replacing Parts
Issue 46 (2022-12-28) Copyright © Huawei Technologies Co., Ltd. 186
