User Manual
SmartAX MT800 ADSL CPE
Chapter 4 Web-based Management
4-20

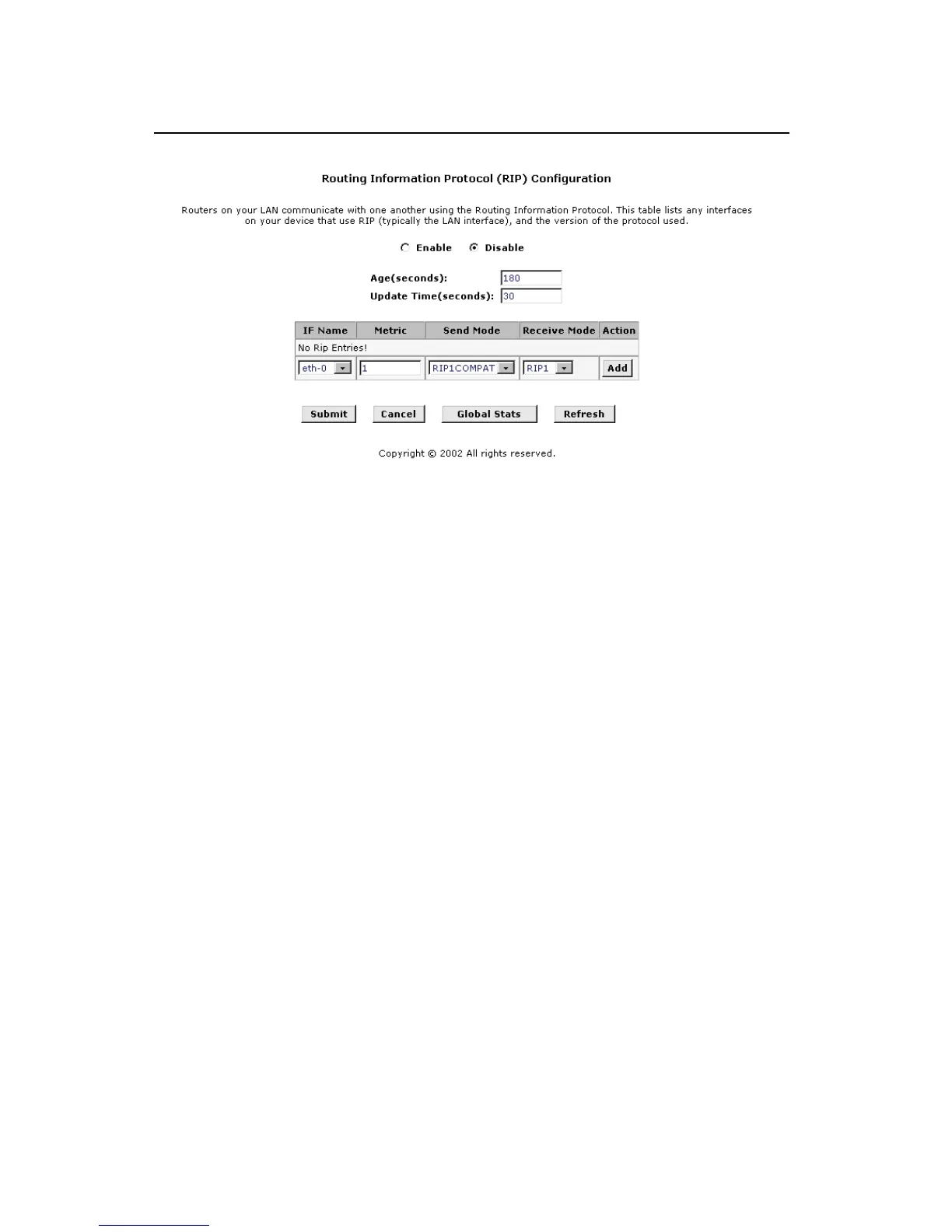

Figure 4-15 RIP Configuration
To change RIP configuration:
1) If necessary, change the Age and Update Time. These
are global settings for all interfaces that use RIP.
z
Age is the amount of time in seconds that the device's RIP
table will retain each route that it learns from adjacent
computers.
z
Update Time specifies how frequently the MT800 will send
out its routing table its neighbors.
2) In the IF Name column, select the name of the interface on
which you want to enable RIP.
3) Select a metric value for the interface. RIP uses a "hop
count" as a way to determine the best path to a given
destination in the network. The hop count is the sum of the
metric values assigned to each port through which data is
passed before reaching the destination. Among several
