Huawei SUN2000-150KTL-S0 - Installing a Smart ETH Gateway

PowerCube 5000 (SUN2000-150KTL-S0)
Installation Guide
4 Installing Components
Issue 03 (2020-04-10)
Copyright © Huawei Technologies Co., Ltd.
38
Figure 4-6 Installing an iBOX
(1) Fastener
Step 4 (Optional) If multiple iBOXs are required, install the other iBOXs in the same way.
----End

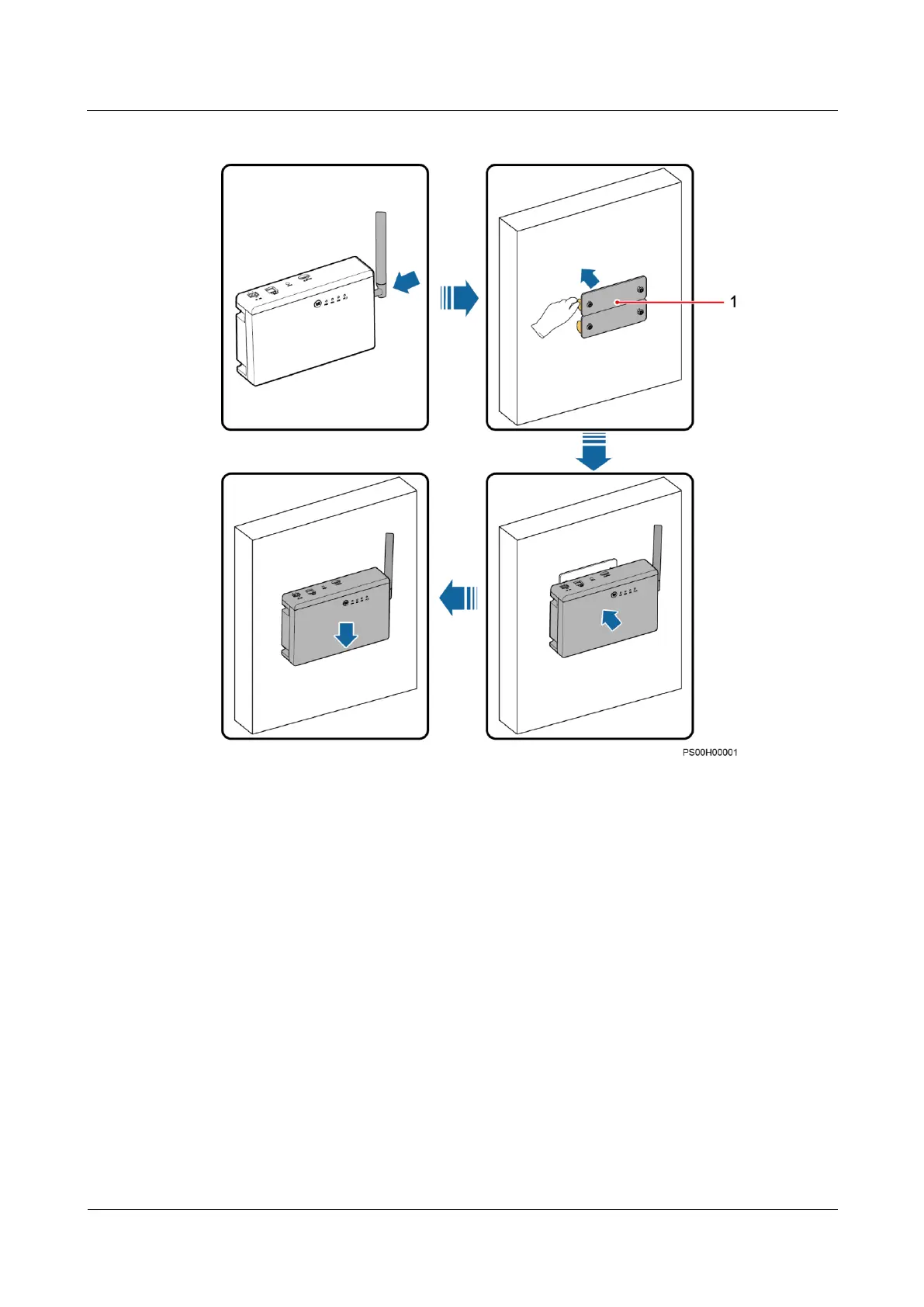

4.7 Installing a Smart ETH Gateway
Procedure
Step 1 Clamp the smart ETH gateway to the mounting bracket at the bottom of the cabinet.
