9

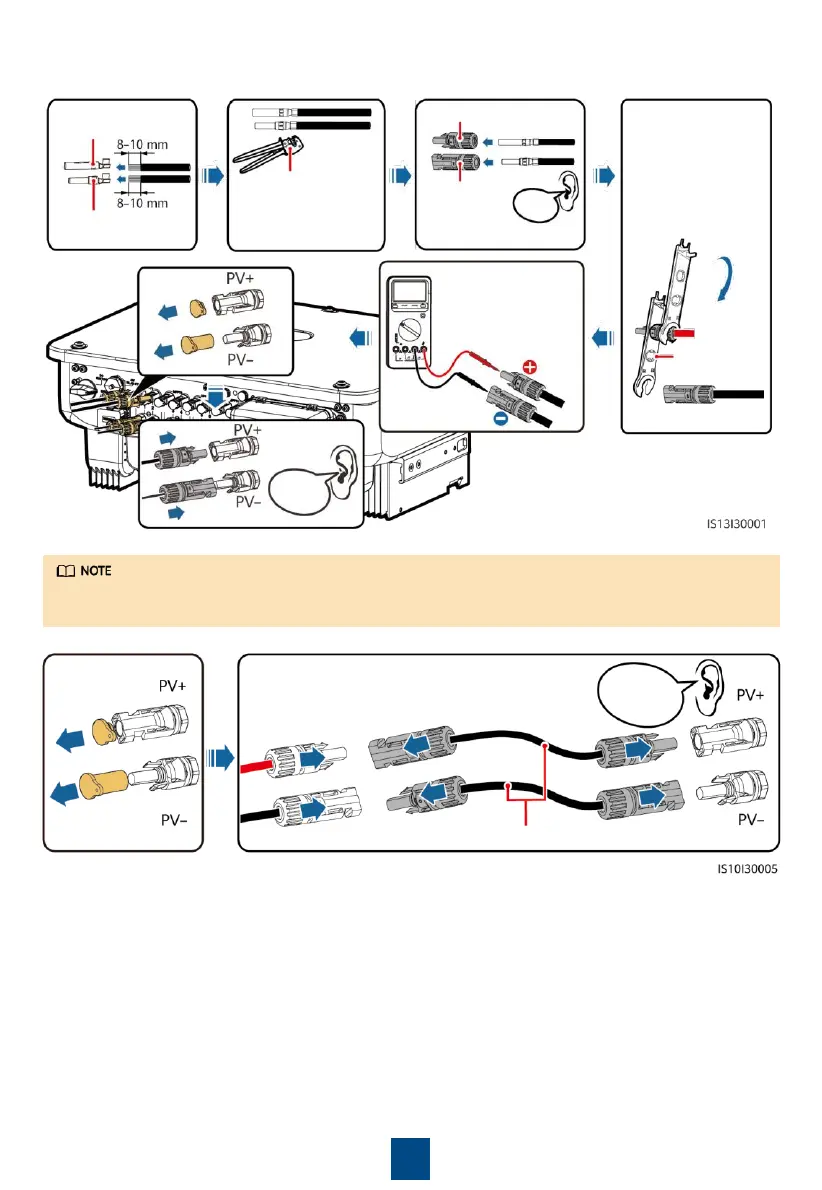

2. Connect the DC power cables.
Positive connector
Negative
connector
Positive metal
terminal
Negative
metal terminal
Ensure that the cables
cannot be pulled out
after being crimped.
Click
Click
PV-CZM-22100
PV-MS-HZ
Open-end
wrench
Ensure that
cable polarities
are correct.
Use the wrench
shown in the figure
to tighten the locking
nut. When the
wrench slips during
the tightening, the
locking nut has been
tightened.
If the original DC input power cables are not long enough, use the DC input extension cables
delivered with the package.
Click
Pull the DC input power cables back to
ensure that they are connected securely.
Extension cables for DC terminals
To Next Page
