SUN2000-(50KTL-JPM0, 50KTL-JPM1, 63KTL-JPM0)
User Manual
Copyright © Huawei Technologies Co., Ltd.
Connecting Cables to the Terminal Block
Step 1 Remove an appropriate length of the jacket and core wire insulation layer from the
communications cable using a wire stripper.

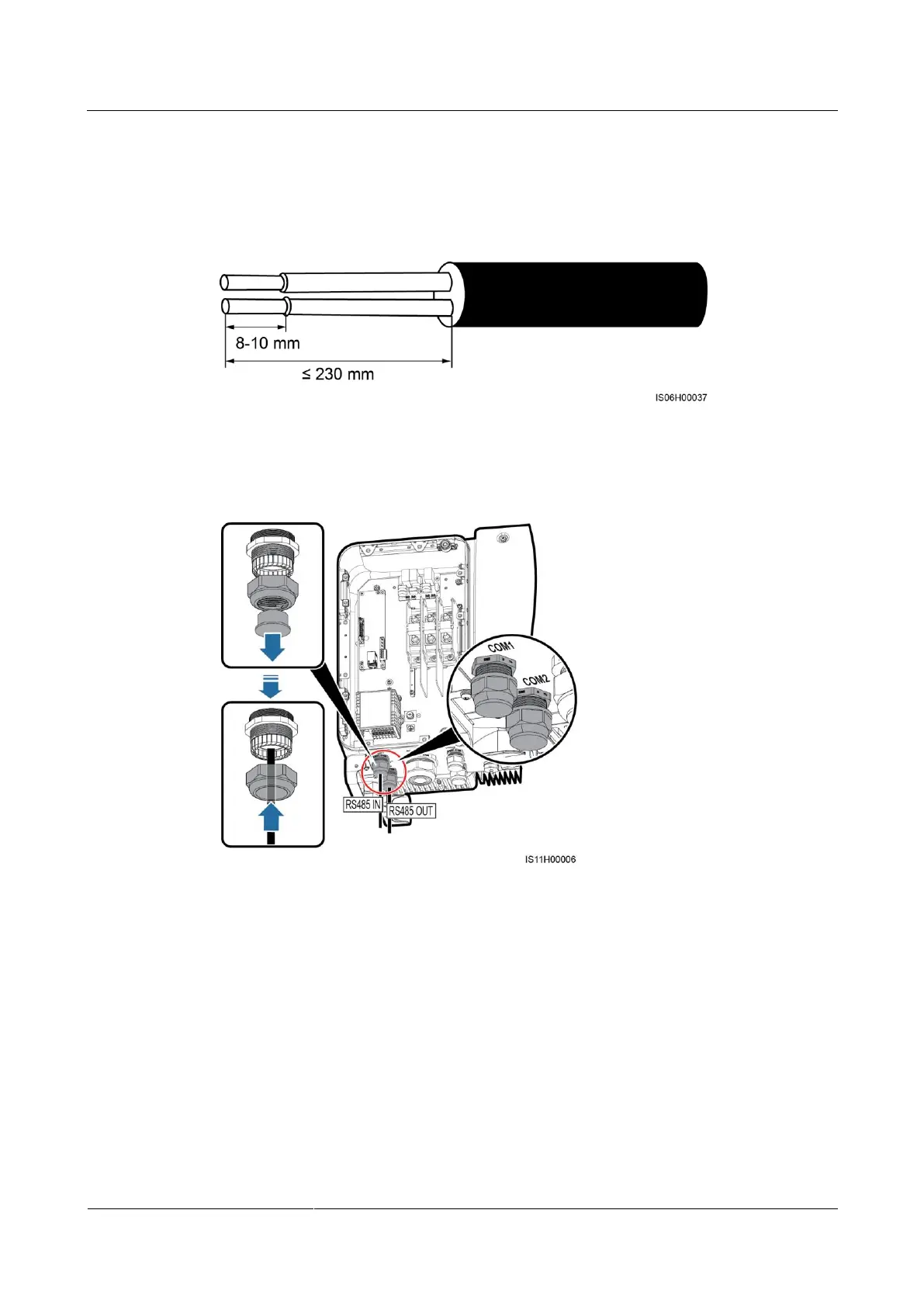

Figure 5-21 Stripping an RS485 communications cable
Step 2 Route the communications cable through the cable gland.
Figure 5-22 Routing a cable
Step 3 Remove the cable terminal base from the terminal block, and connect the communications
cable to the terminal base.
