SUN2000-(50KTL-JPM0, 50KTL-JPM1, 63KTL-JPM0)
User Manual
5 Electrical Connections
Issue 01 (2018-09-30)
Copyright © Huawei Technologies Co., Ltd.
52
Pin
Color
Function
3
White-and-green
N/A
4
Blue
RS485A, differential signal+
5
White-and-blue
RS485B, differential signal–
6
Green
N/A
7
White-and-brown
N/A
8
Brown
N/A
Connecting Cables to the RJ45 Network Port
Step 1 Prepare an RJ45 connector.

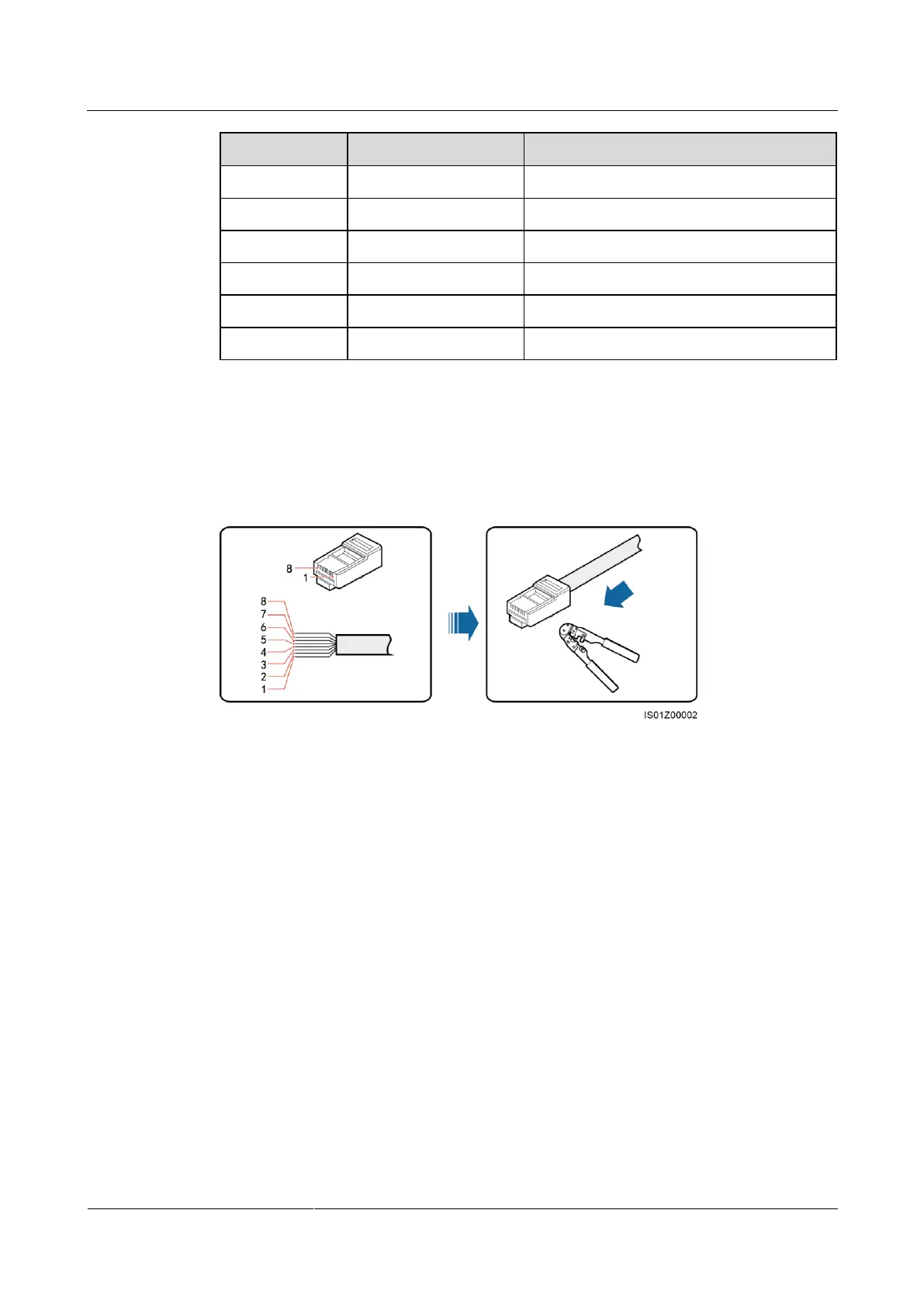

Figure 5-27 Preparing an RJ45 connector
(1) White-and-orange
(2) Orange
(3) White-and-green
(4) Blue
(5) White-and-blue
(6) Green
(7) White-and-brown
(8) Brown
Step 2 Route the communications cable through the cable gland.
