SUN2000-(50KTL-JPM0, 50KTL-JPM1, 63KTL-JPM0)
User Manual
Copyright © Huawei Technologies Co., Ltd.

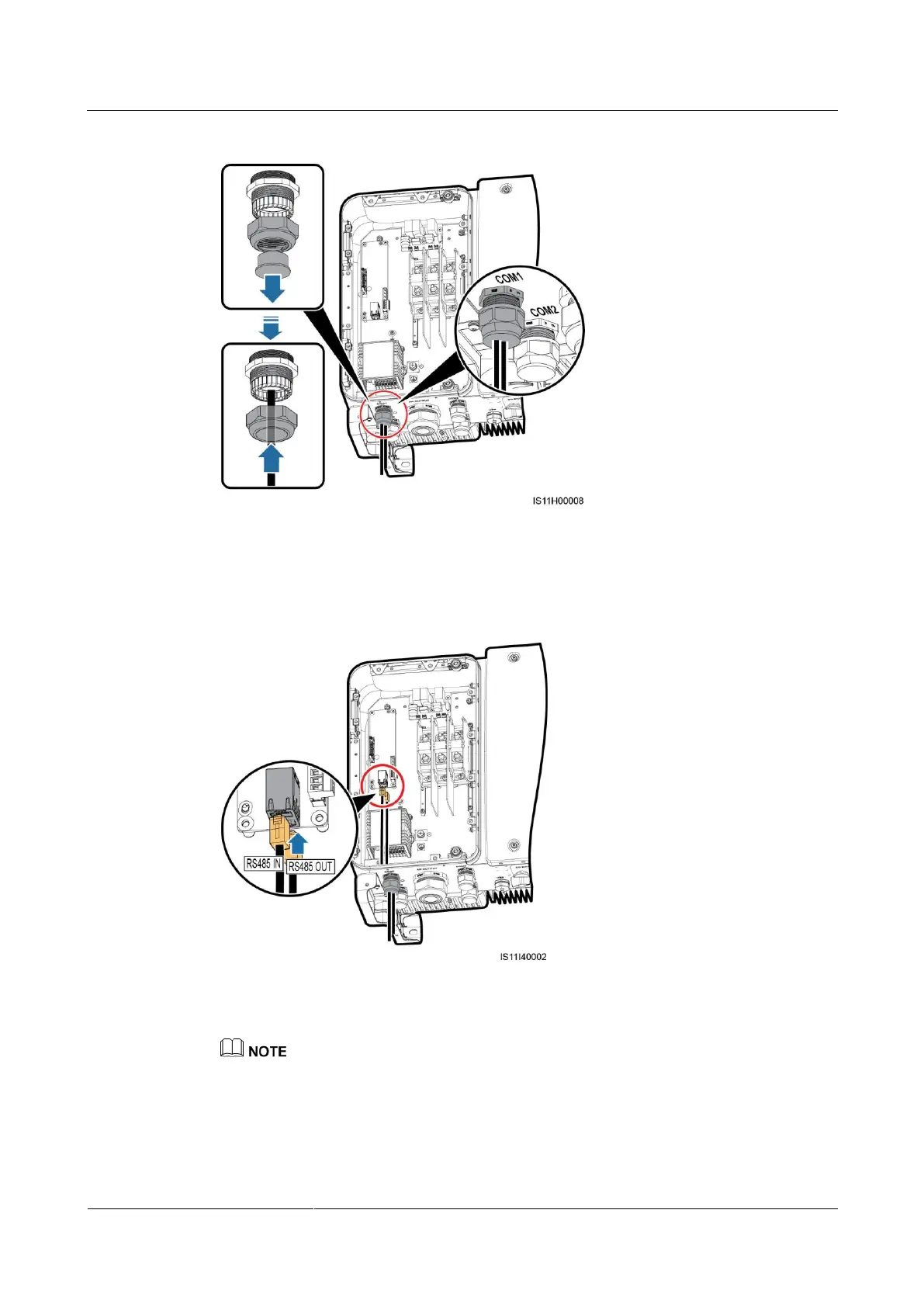

Figure 5-28 Routing a cable
Step 3 Insert the RJ45 connector into the RJ45 network port in the SUN2000 maintenance
compartment.
Figure 5-29 Connecting communications cables
Step 4 Bundle communications cables after connecting them.
Tie the communication cables with the cables on internal side of the maintenance compartment.
