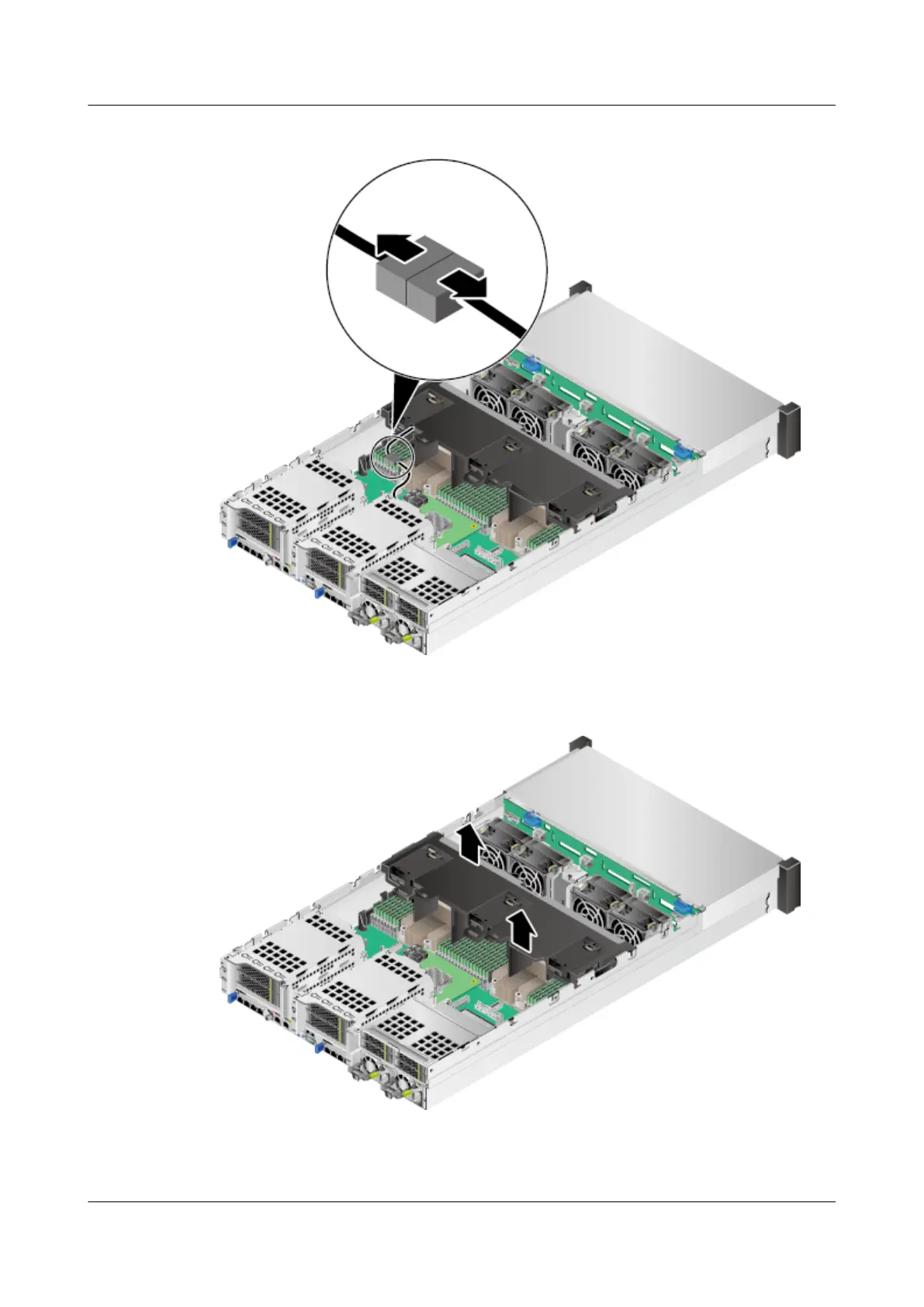

Figure 5-35 Removing the supercapacitor cable
Step 8 Lift the air duct according to the signs on the air duct. See Figure 5-36.
Figure 5-36 Removing the air duct
Step 9 Place the removed air duct in an ESD bag.
----End
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 5 Removal and Installation
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 104
