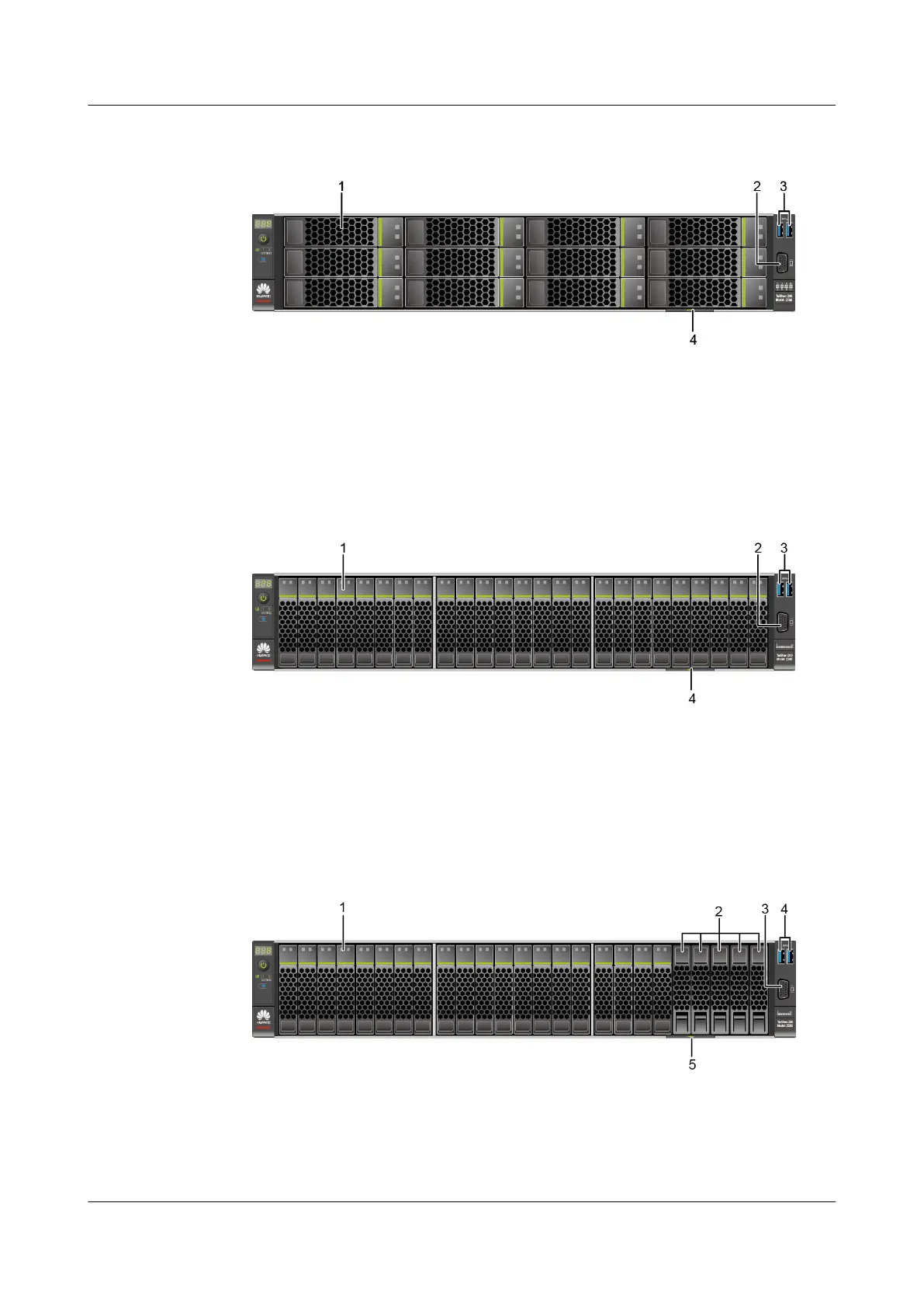

Figure 2-1 Components on the front panel of a server with 12 x 3.5-inch
drives
1 Drive 2 VGA port
3 USB 3.0 port 4 Label plate with an SN label
● Figure 2-2 shows the components on the front panel of a server with 25 x
2.5-inch drives.
Figure 2-2 Components on the front panel of a server with 25 x 2.5-inch
drives
1
Drive 2 VGA port
3 USB 3.0 port 4 Label plate with an SN label
● Figure 2-3 shows the components on the front panel of a server with 8 x 2.5-
inch SAS/SATA drives and 12 x 2.5-inch NVMe SSDs.
Figure 2-3 Components on the front panel of a server with 8 x 2.5-inch SAS/
SATA drives and 12 x 2.5-inch NVMe SSDs
1
Drive 2 Filler panel
3 VGA port 4 USB 3.0 port
5 Label plate with an SN label - -
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 2 Components
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 5
