Huawei TaiShan 200 2280 - Internal Cabling for 25 x 2.5-inch Drives (Expander)

No. Connectors and Cable Part No.
3 Low-speed signal cable for connecting the front
drive backplane (J8) to the drive backplane for I/O
module 2 (J5)
04080650-00
1
3.3 Internal Cabling for a Server with 25 x 2.5-inch
Drives in Expander Mode
Left and Right Mounting Ear Cabling

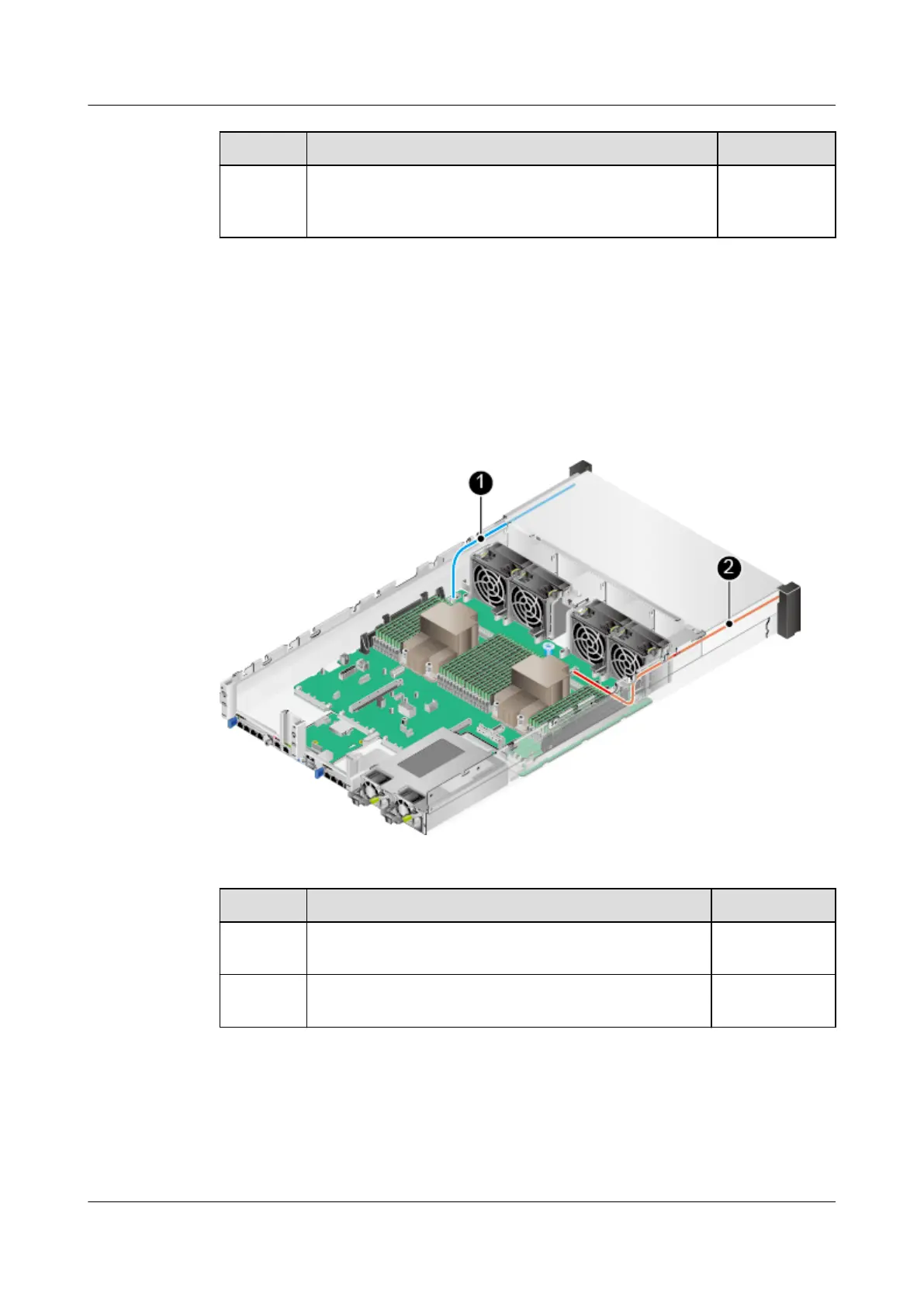

Figure 3-10 Left and right mounting ear cabling
Table 3-10 Left and right mounting ear cabling
No.
Connectors and Cable Part No.
1 Signal cable for connecting the mainboard (J6030)
to the right mounting ear plate
04052311
2 Signal cable for connecting the mainboard (J92) to
the left mounting ear plate
04080650
