Huawei Vision S - Wall Mounting Instructions

4
04. Wall Mounting
● If the wall adapter is used, use 45 mm screws.
● If the wall adapter is not used, use 30 mm screws.
● An optional wall mount can be used with your device. Consult with your local dealer to
purchase the recommended wall mount bracket. Carefully attach the wall mount bracket at the
rear of the device. Install the wall mount bracket on a solid wall perpendicular to the oor. If
you are attaching the device to other building materials, please contact qualied personnel to
install the wall mount. Detailed instructions will be included with the wall mount. Please use a
wall mount bracket where the device is adequately secured to the wall with enough space to
allow connecting to external devices.
● Prevent the holes on the device from being blocked by any objects and leave a space of more
than 10 cm around the device for heat dissipation.
● Disconnect the power before moving or installing the device. Failing to do so may result in
electric shocks.
● Remove the stand before installing the device on a wall mount by following the steps for stand
attachment in reverse.
● If you install the device on a ceiling or slanted wall, it may fall and result in severe injury. Use
an authorized wall mount and contact your local dealer or qualied personnel. Otherwise it is
not covered by the warranty.
● Do not over tighten the screws as this may cause damage to the device and void your
warranty.
● To prevent injury, this apparatus must be securely attached to the oor/wall in accordance with
the installation instructions.

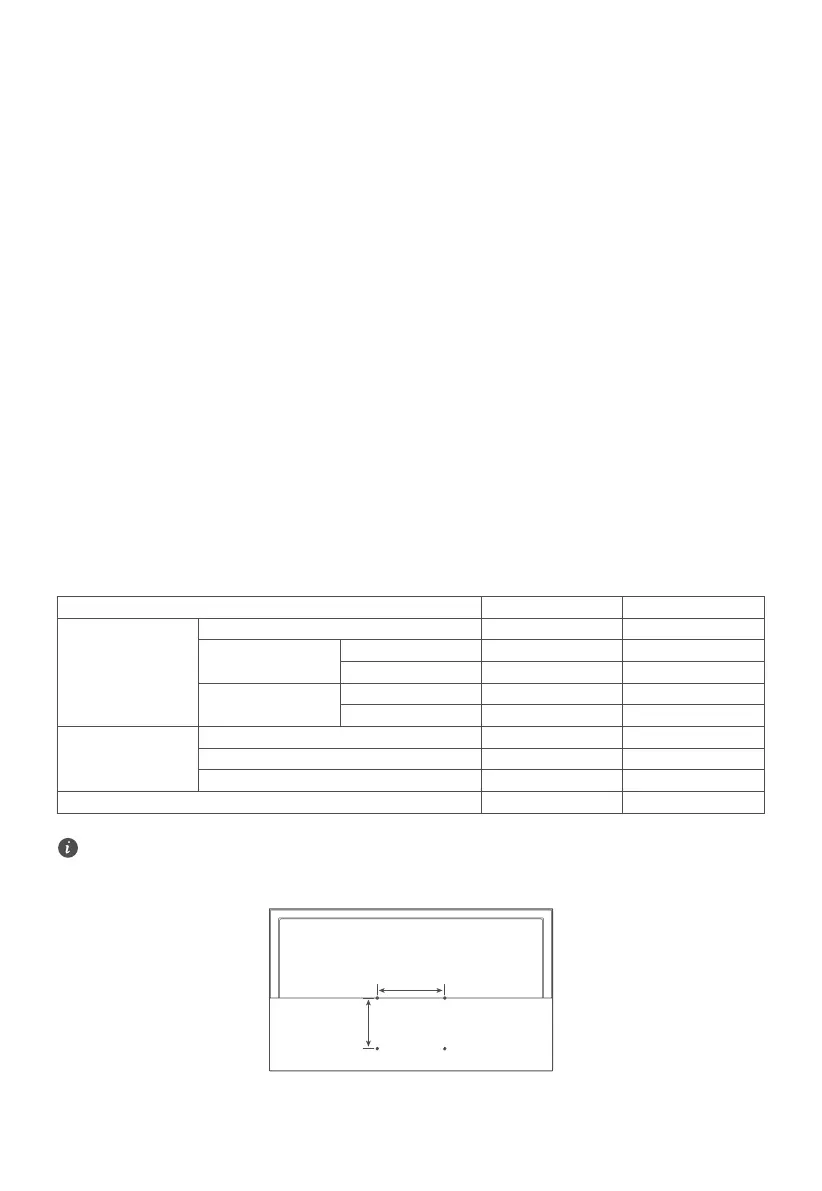

● Use screws and wall mounts that meet the following specications. Any damages or injuries
resulting from misuse or using improper accessories are not covered by the warranty.
A
B
Model HD55KAN9A HD65KAN9A
Screw
Diameter (mm) M6 M6
Length (mm)
Long 45 45
Short 30 30
Quantity
Long 4 4
Short 4 4
Wall adapter
Diameter (mm) 15.8 15.8
Length (mm) 25 25
Quantity 4 4
VESA screw hole specs (A x B) in millimeters 200 x 200 400 x 200
