12

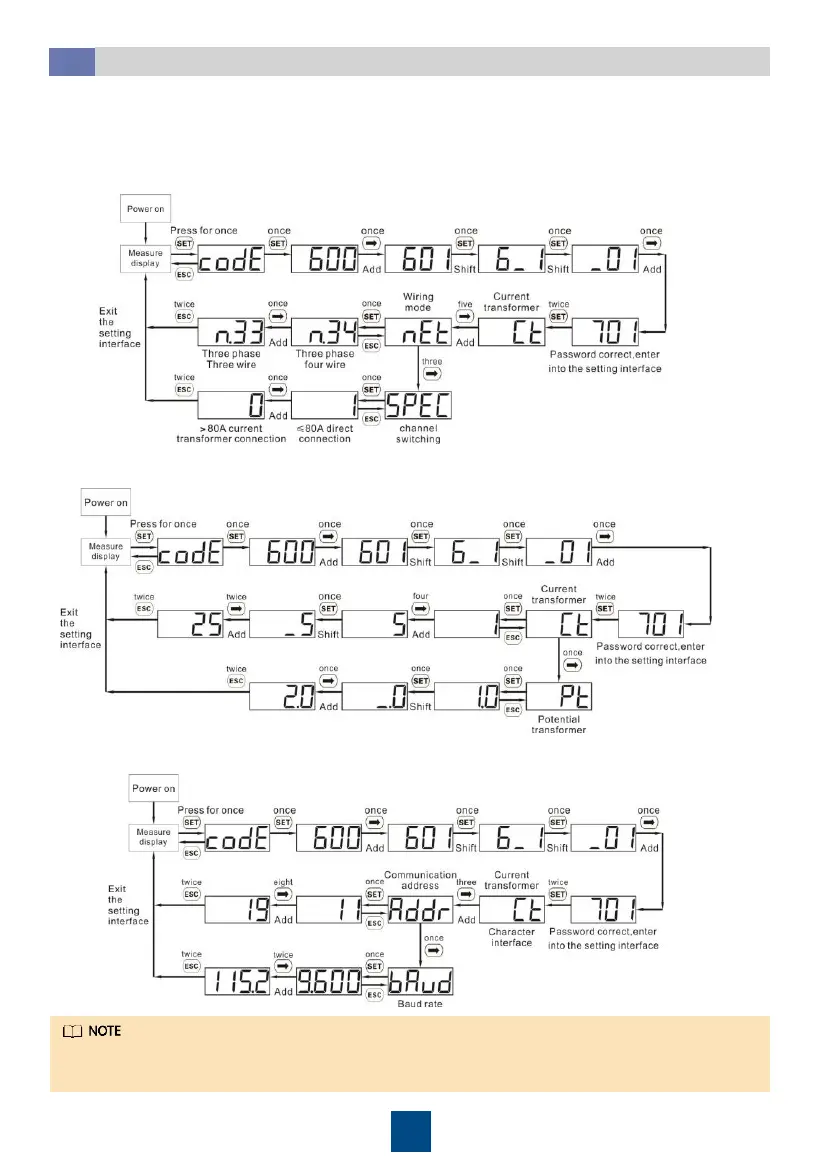

Button description: SET means "confirm" or "cursor move" (when inputting numbers or
parameters), ESC means "exit", and → means "add". The default user password is 701
.
The communication parameters are set for the Smart Power Sensor before delivery. If the
communication is abnormal, check and set the parameters.
•
Set wiring mode (three-phase four-wire or three-phase three-wire) and channel
switchover (direct connection or current transformer connection):
•
Set the current transformation ratio or potential transformation ratio:
•
Set communication address or baud rate:
Parameter Setting Operations
4.3
