Industrial Lighting
®
WHITE WIRE(S)
(COMMON)
B
L
A
C
K
W
H
I
T
E
R
E
D
(RED WIRE)
(BLACK WIRE)
LED BOARD ASSY #2
RED
WHITE
BLACK
COMMON
(NEUTRAL) WHITE
LINE
(HOT) BLACK
GROUND
GREEN

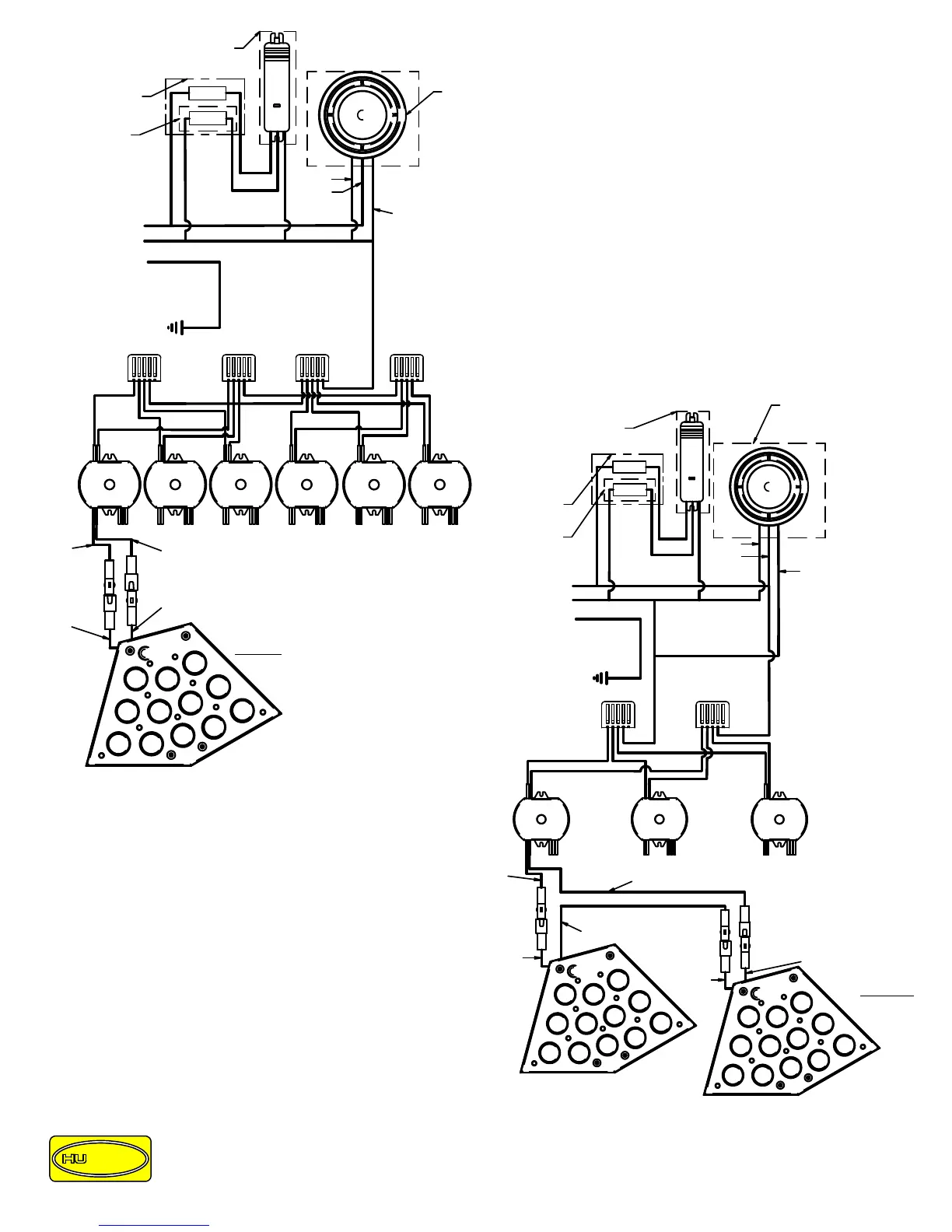

WIRING SCHEMATIC - HBL/HBLH
48 LED FIXTURE
LED BOARD ASSY #1
THREE (3) TIMES
(RED WIRE)
(BLACK WIRE)
(RED WIRE)
(BLUE WIRE)
BLACK WIRE(S)
(LINE)
LED DRIVER #3LED DRIVER #2
LED DRIVER #1
FUSING
FUSING
WHITE WIRE(S)
(COMMON)
BLACK WIRE(S)
(LINE)
OCCUPANCY SENSOR
OPTION
DOUBLE FUSE
OPTION
SINGLE FUSE
OPTION
FUSING
WIHUBB OPTION
FUSING
B
L
A
C
K
W
H
I
T
E
R
E
D
RED
WHITE
BLACK
COMMON
(NEUTRAL) WHITE
LINE
(HOT) BLACK
GROUND
GREEN
BLACK WIRE(S)
(LINE)
WHITE WIRE(S)
(COMMON)
WIRING SCHEMATIC - HBL/HBLH
60 & 72 LED FIXTURE
LED BOARD ASSY #1
SIX (6) TIMES
(RED WIRE)
(BLACK WIRE)
(RED WIRE)
(BLUE WIRE)
LED DRIVER #1
LED DRIVER #2
LED DRIVER #3
LED DRIVER #4
LED DRIVER #5
LED DRIVER #6
OCCUPANCY SENSOR
OPTION
WI-HUBB OPTION
SINGLE FUSE
OPTION
DOUBLE FUSE
OPTION
